RS413

Suzuki KEI-SWIFT · 4,228 parts · 222 categories

4,228 items

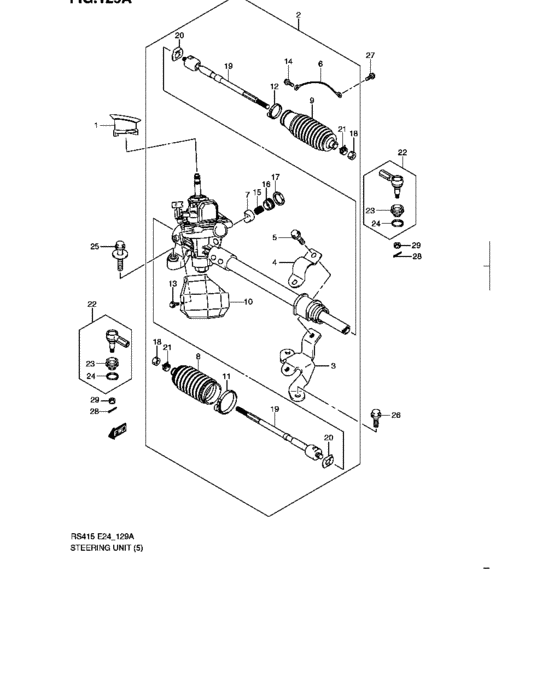

Steering unit (TYPE 3,4:RHD) 34

#	OEM	Part name
1	48451-73K00-000	GROMMET,STEERING GEAR CASE
2	48580-57K01-000	Box assy,steering gear
2	48580-85L01-000	BOX ASSY,STRG GEAR
2	48580-57K12-000	Box assy,steering gear
2	48580-85L11-000	BOX ASSY,STRG GEAR
3	48521-63J00-000	BRACKET,GEAR RACK SIDE NO.1
4	48522-63J00-000	BRACKET,GEAR RACK SIDE NO.2
5	48523-63J00-000	BOLT,BRACKET
6	48531-63J00-000	WIRE,EARTH
7	48534-63J00-000	PLUNGER,STEERING RACK
8	48571-63J00-000	BOOT,STEERING PINION SIDE
9	48572-63J00-000	BOOT,STEERING RACK SIDE
10	48574-63J00-000	HEAT,INSULATOR
11	48575-63J00-000	BAND,PINION SIDE
12	48576-63J00-000	BAND,RACK SIDE
13	48577-51K00-000	BOLT,HEAT SHIELD
14	48577-63J00-000	Bolt
15	48591-63J00-000	SPRING,RACK PLUNGER
16	48592-63J00-000	PLUG,ADJUSTING
17	48593-63J00-000	NUT,PLUG
18	48817-63J00-000	NUT,TIE-ROD END LOCK
19	48830-63J00-000	TIE-ROD,STEERING
20	48841-63J00-000	WASHER,TIE ROD LOCK
21	48871-63J00-000	CLAMP,BOOT
22	48810-60J00-000	END,STEERING TIE-ROD
23	48819-60B00-000	BOOT SET
23	48819-60B01-000	Boot Set
23	48800-60810-000	Boot Set
24	09401-23402-000	CLIP
25	48528-58J00-000	BOLT,STRG PINION SIDE
26	09103-10216-000	BOLT(10X20)
27	09115-06008-000	BOLT(6X16)
28	04111-3020A-000	PIN
29	08314-4012A-000	NUT

OEM	Part name	Category
04111-3020A-000	PIN	Steering unit (TYPE 3,4:RHD)
08314-4012A-000	NUT	Steering unit (TYPE 3,4:RHD)
09103-10216-000	BOLT(10X20)	Steering unit (TYPE 3,4:RHD)
09115-06008-000	BOLT(6X16)	Steering unit (TYPE 3,4:RHD)
09401-23402-000	CLIP	Steering unit (TYPE 3,4:RHD)
48451-73K00-000	GROMMET,STEERING GEAR CASE	Steering unit (TYPE 3,4:RHD)
48521-63J00-000	BRACKET,GEAR RACK SIDE NO.1	Steering unit (TYPE 3,4:RHD)
48522-63J00-000	BRACKET,GEAR RACK SIDE NO.2	Steering unit (TYPE 3,4:RHD)
48523-63J00-000	BOLT,BRACKET	Steering unit (TYPE 3,4:RHD)
48528-58J00-000	BOLT,STRG PINION SIDE	Steering unit (TYPE 3,4:RHD)
48531-63J00-000	WIRE,EARTH	Steering unit (TYPE 3,4:RHD)
48534-63J00-000	PLUNGER,STEERING RACK	Steering unit (TYPE 3,4:RHD)
48571-63J00-000	BOOT,STEERING PINION SIDE	Steering unit (TYPE 3,4:RHD)
48572-63J00-000	BOOT,STEERING RACK SIDE	Steering unit (TYPE 3,4:RHD)
48574-63J00-000	HEAT,INSULATOR	Steering unit (TYPE 3,4:RHD)
48575-63J00-000	BAND,PINION SIDE	Steering unit (TYPE 3,4:RHD)
48576-63J00-000	BAND,RACK SIDE	Steering unit (TYPE 3,4:RHD)
48577-51K00-000	BOLT,HEAT SHIELD	Steering unit (TYPE 3,4:RHD)
48577-63J00-000	Bolt	Steering unit (TYPE 3,4:RHD)
48580-57K01-000	Box assy,steering gear	Steering unit (TYPE 3,4:RHD)
48580-57K12-000	Box assy,steering gear	Steering unit (TYPE 3,4:RHD)
48580-85L01-000	BOX ASSY,STRG GEAR	Steering unit (TYPE 3,4:RHD)
48580-85L11-000	BOX ASSY,STRG GEAR	Steering unit (TYPE 3,4:RHD)
48591-63J00-000	SPRING,RACK PLUNGER	Steering unit (TYPE 3,4:RHD)
48592-63J00-000	PLUG,ADJUSTING	Steering unit (TYPE 3,4:RHD)
48593-63J00-000	NUT,PLUG	Steering unit (TYPE 3,4:RHD)
48800-60810-000	Boot Set	Steering unit (TYPE 3,4:RHD)
48810-60J00-000	END,STEERING TIE-ROD	Steering unit (TYPE 3,4:RHD)
48817-63J00-000	NUT,TIE-ROD END LOCK	Steering unit (TYPE 3,4:RHD)
48819-60B00-000	BOOT SET	Steering unit (TYPE 3,4:RHD)
48819-60B01-000	Boot Set	Steering unit (TYPE 3,4:RHD)
48830-63J00-000	TIE-ROD,STEERING	Steering unit (TYPE 3,4:RHD)
48841-63J00-000	WASHER,TIE ROD LOCK	Steering unit (TYPE 3,4:RHD)
48871-63J00-000	CLAMP,BOOT	Steering unit (TYPE 3,4:RHD)
