Search › Model › RS413

RS413

Suzuki KEI-SWIFT · 4,228 parts · 222 categories

4,228 items

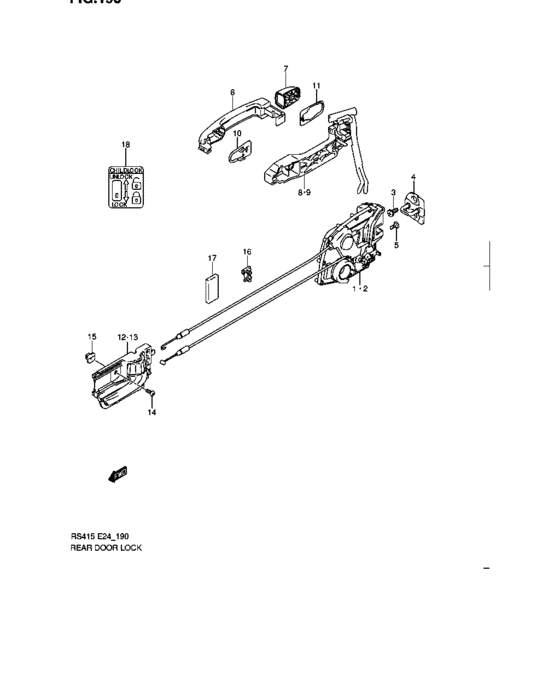

Rear door lock (REAR DOOR LOCK) 57

#	OEM	Part name
1	82301-63J11-000	Latch assy,rear door,r
1	82301-63J15-000	LATCH ASSY,RR DR,R
1	82301-63J16-000	Latch Assy,rr Dr,r
2	82302-63J11-000	Latch assy,rear door,l
2	82302-63J15-000	LATCH ASSY,RR DR,L
2	82302-63J16-000	Latch Assy,rr Dr,l
3	09137-06028-000	SCREW(6X18)
4	82610-63J00-000	STRIKER,DOOR LATCH
5	09137-08004-000	SCREW(8X18)
5	09137-08011-000	SCREW(8X18)
6	82812-63J00-5PK	HANDLE,SIDE DOOR OUT
6	82812-63J00-ZCW	HANDLE,SIDE DOOR OUT
6	82812-63J00-ZDF	HANDLE,SIDE DOOR OUT
6	82812-63J00-ZJ3	HANDLE,DOOR OUT
6	82812-63J00-Z7T	HANDLE,SIDE DOOR OUT
6	82812-63J00-ZCV	HANDLE,SIDE DOOR OUT
6	82812-63J00-ZFM	HANDLE,SIDE DOOR OUT
6	82812-63J00-ZK1	HANDLE,SIDE DOOR OUT
6	82812-63J00-Z9T	HANDLE,DOOR OUT
6	82812-63J00-ZPV	HANDLE,SIDE DOOR OUT
6	82812-63J00-Z2S	HANDLE,DOOR OUT
6	82812-63J00-ZY4	HANDLE,DOOR OUT
6	82812-63J00-ZFN	HANDLE,SIDE DOOR OUT
6	82812-63J00-ZJP	HANDLE,SIDE DOOR OUT
6	82812-63J00-ZEL	HANDLE,SIDE DOOR OUT
6	82812-63J00-ZFT	HANDLE,SIDE DOOR OUT
7	82833-63J00-5PK	CAP,RR DR OUT
7	82833-63J00-ZCW	CAP,RR DR OUT
7	82833-63J00-ZDF	CAP,RR DR OUT
7	82833-63J00-ZJ3	CAP,RR DR OUT
7	82833-63J00-Z7T	CAP,RR DR OUT
7	82833-63J00-ZCV	CAP,RR DR OUT
7	82833-63J00-ZFM	CAP,RR DR OUT
7	82833-63J00-ZK1	CAP,RR DR OUT
7	82833-63J00-Z9T	CAP,RR DR OUT
7	82833-63J00-ZPV	CAP,RR DR OUT
7	82833-63J00-Z2S	CAP,RR DR OUT
7	82833-63J00-ZY4	CAP,RR DR OUT
7	82833-63J00-ZFN	CAP,RR DR OUT
7	82833-63J00-ZJP	CAP,RR DR OUT
7	82833-63J00-ZEL	CAP,RR DR OUT
7	82833-63J00-ZFT	CAP,RR DR OUT
8	82831-63J00-000	FRAME,RR DOOR OUT,R
9	82841-63J00-000	FRAME,RR DOOR OUT,L
10	82834-63J00-000	PAD,REAR DOOR OUT
11	82815-63J00-000	CUSHION,SIDE DR OUT
12	83110-63J00-P4Z	HANDLE,DR INSIDE,R(GRAY)
12	83110-63J01-P4Z	HANDLE,DR INSIDE,R
12	83110-63J20-FC6	HANDLE,DR INS,R
13	83130-63J00-P4Z	HANDLE,DR INSIDE,L(GRAY)
13	83130-63J01-P4Z	HANDLE,DR INSIDE,L
13	83130-63J20-FC6	HANDLE,DR INS,L
14	09132-05058-000	SCREW(5X12)
15	09148-05018-000	NUT
16	83271-50E00-000	CLIP,DR HANDLE ROD
17	77591-75000-000	PAD
18	86951-54G00-000	PLATE,CHILD LOCK CAUTION

OEM	Part name	Category
09132-05058-000	SCREW(5X12)	Rear door lock (REAR DOOR LOCK)
09137-06028-000	SCREW(6X18)	Rear door lock (REAR DOOR LOCK)
09137-08004-000	SCREW(8X18)	Rear door lock (REAR DOOR LOCK)
09137-08011-000	SCREW(8X18)	Rear door lock (REAR DOOR LOCK)
09148-05018-000	NUT	Rear door lock (REAR DOOR LOCK)
77591-75000-000	PAD	Rear door lock (REAR DOOR LOCK)
82301-63J11-000	Latch assy,rear door,r	Rear door lock (REAR DOOR LOCK)
82301-63J15-000	LATCH ASSY,RR DR,R	Rear door lock (REAR DOOR LOCK)
82301-63J16-000	Latch Assy,rr Dr,r	Rear door lock (REAR DOOR LOCK)
82302-63J11-000	Latch assy,rear door,l	Rear door lock (REAR DOOR LOCK)
82302-63J15-000	LATCH ASSY,RR DR,L	Rear door lock (REAR DOOR LOCK)
82302-63J16-000	Latch Assy,rr Dr,l	Rear door lock (REAR DOOR LOCK)
82610-63J00-000	STRIKER,DOOR LATCH	Rear door lock (REAR DOOR LOCK)
82812-63J00-5PK	HANDLE,SIDE DOOR OUT	Rear door lock (REAR DOOR LOCK)
82812-63J00-Z2S	HANDLE,DOOR OUT	Rear door lock (REAR DOOR LOCK)
82812-63J00-Z7T	HANDLE,SIDE DOOR OUT	Rear door lock (REAR DOOR LOCK)
82812-63J00-Z9T	HANDLE,DOOR OUT	Rear door lock (REAR DOOR LOCK)
82812-63J00-ZCV	HANDLE,SIDE DOOR OUT	Rear door lock (REAR DOOR LOCK)
82812-63J00-ZCW	HANDLE,SIDE DOOR OUT	Rear door lock (REAR DOOR LOCK)
82812-63J00-ZDF	HANDLE,SIDE DOOR OUT	Rear door lock (REAR DOOR LOCK)
82812-63J00-ZEL	HANDLE,SIDE DOOR OUT	Rear door lock (REAR DOOR LOCK)
82812-63J00-ZFM	HANDLE,SIDE DOOR OUT	Rear door lock (REAR DOOR LOCK)
82812-63J00-ZFN	HANDLE,SIDE DOOR OUT	Rear door lock (REAR DOOR LOCK)
82812-63J00-ZFT	HANDLE,SIDE DOOR OUT	Rear door lock (REAR DOOR LOCK)
82812-63J00-ZJ3	HANDLE,DOOR OUT	Rear door lock (REAR DOOR LOCK)
82812-63J00-ZJP	HANDLE,SIDE DOOR OUT	Rear door lock (REAR DOOR LOCK)
82812-63J00-ZK1	HANDLE,SIDE DOOR OUT	Rear door lock (REAR DOOR LOCK)
82812-63J00-ZPV	HANDLE,SIDE DOOR OUT	Rear door lock (REAR DOOR LOCK)
82812-63J00-ZY4	HANDLE,DOOR OUT	Rear door lock (REAR DOOR LOCK)
82815-63J00-000	CUSHION,SIDE DR OUT	Rear door lock (REAR DOOR LOCK)
82831-63J00-000	FRAME,RR DOOR OUT,R	Rear door lock (REAR DOOR LOCK)
82833-63J00-5PK	CAP,RR DR OUT	Rear door lock (REAR DOOR LOCK)
82833-63J00-Z2S	CAP,RR DR OUT	Rear door lock (REAR DOOR LOCK)
82833-63J00-Z7T	CAP,RR DR OUT	Rear door lock (REAR DOOR LOCK)
82833-63J00-Z9T	CAP,RR DR OUT	Rear door lock (REAR DOOR LOCK)
82833-63J00-ZCV	CAP,RR DR OUT	Rear door lock (REAR DOOR LOCK)
82833-63J00-ZCW	CAP,RR DR OUT	Rear door lock (REAR DOOR LOCK)
82833-63J00-ZDF	CAP,RR DR OUT	Rear door lock (REAR DOOR LOCK)
82833-63J00-ZEL	CAP,RR DR OUT	Rear door lock (REAR DOOR LOCK)
82833-63J00-ZFM	CAP,RR DR OUT	Rear door lock (REAR DOOR LOCK)
82833-63J00-ZFN	CAP,RR DR OUT	Rear door lock (REAR DOOR LOCK)
82833-63J00-ZFT	CAP,RR DR OUT	Rear door lock (REAR DOOR LOCK)
82833-63J00-ZJ3	CAP,RR DR OUT	Rear door lock (REAR DOOR LOCK)
82833-63J00-ZJP	CAP,RR DR OUT	Rear door lock (REAR DOOR LOCK)
82833-63J00-ZK1	CAP,RR DR OUT	Rear door lock (REAR DOOR LOCK)
82833-63J00-ZPV	CAP,RR DR OUT	Rear door lock (REAR DOOR LOCK)
82833-63J00-ZY4	CAP,RR DR OUT	Rear door lock (REAR DOOR LOCK)
82834-63J00-000	PAD,REAR DOOR OUT	Rear door lock (REAR DOOR LOCK)
82841-63J00-000	FRAME,RR DOOR OUT,L	Rear door lock (REAR DOOR LOCK)
83110-63J00-P4Z	HANDLE,DR INSIDE,R(GRAY)	Rear door lock (REAR DOOR LOCK)
83110-63J01-P4Z	HANDLE,DR INSIDE,R	Rear door lock (REAR DOOR LOCK)
83110-63J20-FC6	HANDLE,DR INS,R	Rear door lock (REAR DOOR LOCK)
83130-63J00-P4Z	HANDLE,DR INSIDE,L(GRAY)	Rear door lock (REAR DOOR LOCK)
83130-63J01-P4Z	HANDLE,DR INSIDE,L	Rear door lock (REAR DOOR LOCK)
83130-63J20-FC6	HANDLE,DR INS,L	Rear door lock (REAR DOOR LOCK)
83271-50E00-000	CLIP,DR HANDLE ROD	Rear door lock (REAR DOOR LOCK)
86951-54G00-000	PLATE,CHILD LOCK CAUTION	Rear door lock (REAR DOOR LOCK)
