RS413

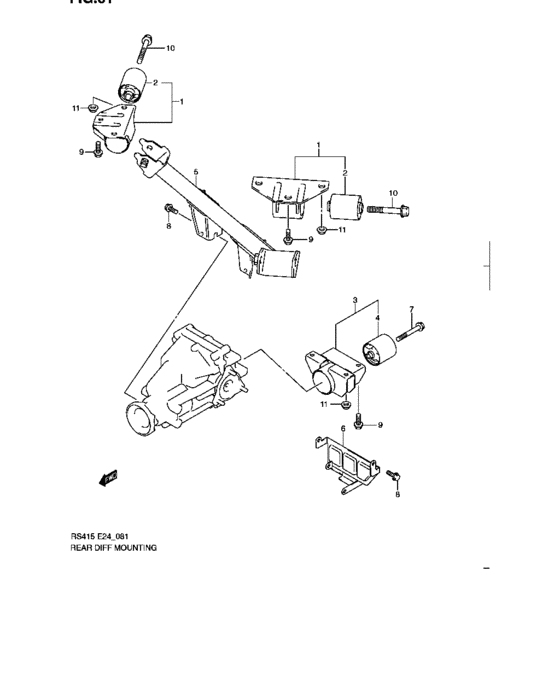

Rear diff mounting (4WD) 11
| # | OEM | Part name |
|---|---|---|
| 1 | 29610-63J00-000 | MOUNT,DIFF FR |
| 2 | 27550-63J00-000 | MOUNT,DIFF FR |
| 3 | 29620-63J00-000 | BRACKET,DIFF MOUNT RR |
| 4 | 27560-63J00-000 | MOUNT,DIFF RR |
| 5 | 29651-63J00-000 | ARM,DIFF MOUNT FR |
| 6 | 29661-63J01-000 | COVER,RR DIFF |
| 7 | 09103-12079-000 | BOLT(12X98) |
| 8 | 01550-1020A-000 | Bolt - Bolt, bal sprocket |
| 9 | 01551-1025A-000 | Bolt |
| 10 | 01550-1275A-000 | Bolt |
| 11 | 08316-1010A-000 | NUT - Nut, kick starter |
| OEM | Part name | Category |
|---|---|---|
| 01550-1020A-000 | Bolt - Bolt, bal sprocket | Rear diff mounting (4WD) |
| 01550-1275A-000 | Bolt | Rear diff mounting (4WD) |
| 01551-1025A-000 | Bolt | Rear diff mounting (4WD) |
| 08316-1010A-000 | NUT - Nut, kick starter | Rear diff mounting (4WD) |
| 09103-12079-000 | BOLT(12X98) | Rear diff mounting (4WD) |
| 27550-63J00-000 | MOUNT,DIFF FR | Rear diff mounting (4WD) |
| 27560-63J00-000 | MOUNT,DIFF RR | Rear diff mounting (4WD) |
| 29610-63J00-000 | MOUNT,DIFF FR | Rear diff mounting (4WD) |
| 29620-63J00-000 | BRACKET,DIFF MOUNT RR | Rear diff mounting (4WD) |
| 29651-63J00-000 | ARM,DIFF MOUNT FR | Rear diff mounting (4WD) |
| 29661-63J01-000 | COVER,RR DIFF | Rear diff mounting (4WD) |
