Search › Model › RS413
RS413

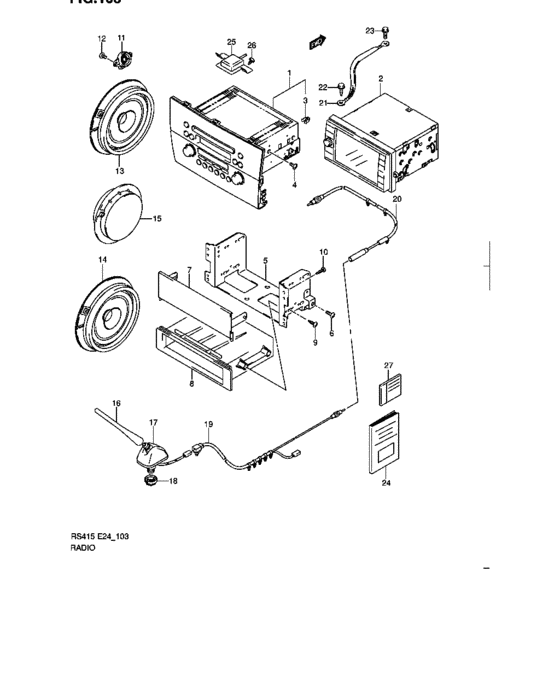

Radio (RADIO) 62
| # | OEM | Part name |
|---|---|---|
| 1 | 39101-62J10-BZH | TUNER ASSY |
| 1 | 39101-62J30-BZH | TUNER ASSY |
| 1 | 39101-62JB0-BZH | UNIT ASSY,NAVI |
| 1 | 39101-62JD1-BZH | TUNER ASSY |
| 1 | 39101-63J30-BWZ | TUNER ASSY,AM/FM CD 9KHZ |
| 1 | 39101-63JA1-BWZ | TUNER ASSY |
| 1 | 39101-73K20-BWZ | TUNER ASSY |
| 1 | 39101-73K40-BWZ | TUNER ASSY |
| 1 | 39101-63J20-BWZ | TUNER ASSY,AM/FM CD 10KHZ |
| 1 | 39101-63JB0-BWZ | TUNER ASSY |
| 1 | 39101-73K30-BWZ | TUNER ASSY |
| 1 | 39101-73K50-BWZ | TUNER ASSY |
| 1 | 39101-63JA1-CLD | TUNER ASSY |
| 1 | 39101-73K20-CLD | TUNER ASSY,AM/FM CD 9KHZ |
| 1 | 39101-73K40-CLD | TUNER ASSY |
| 1 | 39101-73K30-CLD | Tuner assy |
| 1 | 39101-73K50-CLD | TUNER ASSY |
| 2 | 39920-66J00-000 | UNIT ASSY,NAVI |
| 2 | 39920-66J10-000 | UNIT ASSY,NAVI |
| 3 | 09409-08326-000 | CLIP |
| 4 | 02142-0508A-000 | SCREW - Screw, cap |
| 5 | 39321-63J30-000 | BRACKET,TUNER |
| 5 | 39321-63J10-000 | BRACKET,TUNER |
| 5 | 39321-63J20-000 | BRACKET,TUNER |
| 5 | 39321-63JA1-000 | BRACKET,TUNER |
| 6 | 02162-0612A-000 | SCREW - Bolt, bracket |
| 7 | 39161-74G00-000 | COVER,RADIO HOLE |
| 7 | 39161-80J00-000 | COVER,RADIO HOLE |
| 7 | 39161-65J00-000 | COVER,RADIO HOLE |
| 8 | 39182-70E51-000 | POCKET,TUNER |
| 8 | 39182-80J00-000 | Pocket,tuner |
| 8 | 39182-80J10-000 | POCKET,TUNER |
| 8 | 39182-65J01-000 | POCKET,TUNER |
| 9 | 03241-0512A-000 | SCREW |
| 10 | 03541-0516A-000 | SCREW |
| 11 | 39102-63J00-000 | SPEAKER ASSY,TWEETER |
| 12 | 03541-0410A-000 | SCREW |
| 13 | 39102-63J50-000 | SPEAKER ASSY |
| 15 | 39350-58J30-000 | COVER,SPEAKER HOLE |
| 16 | 39251-64J00-000 | ROD,ANTENNA |
| 16 | 39251-81JA0-000 | ROD,ANTENNA |
| 17 | 39253-63J10-000 | BASE,ANTENNA |
| 17 | 39253-81JA1-000 | Base,antenna |
| 17 | 39253-81JA2-000 | BASE,ANTENNA |
| 18 | 39269-63J00-000 | NUT,ANTENNA |
| 19 | 39271-63J11-000 | FEEDER,ROOF,R |
| 20 | 39270-63J00-000 | FEEDER,I/P |
| 21 | 39312-78F10-000 | WIRE,NOISE SUPPR |
| 22 | 09115-06005-000 | BOLT(6X16) |
| 23 | 09103-06168-000 | BOLT(6X10) |
| 24 | 39103-63J21-000 | MANUAL,AUDIO |
| 24 | 39103-62J10-000 | MANUAL,AUDIO |
| 24 | 39103-62JA0-000 | Manual, navi |
| 24 | 39103-63JB0-000 | MANUAL,AUDIO |
| 24 | 39103-62JC1-000 | MANUAL,NAVI |
| 24 | 39103-63JF0-000 | MANUAL,AUDIO |
| 24 | 39103-62JB0-000 | Manual, navi |
| 24 | 39103-66J00-000 | MANUAL,NAVI |
| 24 | 39103-66J10-000 | MANUAL,NAVI |
| 25 | 39950-62JA0-000 | Antenna assy, gps |
| 25 | 39950-63J01-000 | ANTENNA ASSY,GPS |
| 27 | 39915-62JA5-000 | Cd, navi |
| OEM | Part name | Category |
|---|---|---|
| 02142-0508A-000 | SCREW - Screw, cap | Radio (RADIO) |
| 02162-0612A-000 | SCREW - Bolt, bracket | Radio (RADIO) |
| 03241-0512A-000 | SCREW | Radio (RADIO) |
| 03541-0410A-000 | SCREW | Radio (RADIO) |
| 03541-0516A-000 | SCREW | Radio (RADIO) |
| 09103-06168-000 | BOLT(6X10) | Radio (RADIO) |
| 09115-06005-000 | BOLT(6X16) | Radio (RADIO) |
| 09409-08326-000 | CLIP | Radio (RADIO) |
| 39101-62J10-BZH | TUNER ASSY | Radio (RADIO) |
| 39101-62J30-BZH | TUNER ASSY | Radio (RADIO) |
| 39101-62JB0-BZH | UNIT ASSY,NAVI | Radio (RADIO) |
| 39101-62JD1-BZH | TUNER ASSY | Radio (RADIO) |
| 39101-63J20-BWZ | TUNER ASSY,AM/FM CD 10KHZ | Radio (RADIO) |
| 39101-63J30-BWZ | TUNER ASSY,AM/FM CD 9KHZ | Radio (RADIO) |
| 39101-63JA1-BWZ | TUNER ASSY | Radio (RADIO) |
| 39101-63JA1-CLD | TUNER ASSY | Radio (RADIO) |
| 39101-63JB0-BWZ | TUNER ASSY | Radio (RADIO) |
| 39101-73K20-BWZ | TUNER ASSY | Radio (RADIO) |
| 39101-73K20-CLD | TUNER ASSY,AM/FM CD 9KHZ | Radio (RADIO) |
| 39101-73K30-BWZ | TUNER ASSY | Radio (RADIO) |
| 39101-73K30-CLD | Tuner assy | Radio (RADIO) |
| 39101-73K40-BWZ | TUNER ASSY | Radio (RADIO) |
| 39101-73K40-CLD | TUNER ASSY | Radio (RADIO) |
| 39101-73K50-BWZ | TUNER ASSY | Radio (RADIO) |
| 39101-73K50-CLD | TUNER ASSY | Radio (RADIO) |
| 39102-63J00-000 | SPEAKER ASSY,TWEETER | Radio (RADIO) |
| 39102-63J50-000 | SPEAKER ASSY | Radio (RADIO) |
| 39103-62J10-000 | MANUAL,AUDIO | Radio (RADIO) |
| 39103-62JA0-000 | Manual, navi | Radio (RADIO) |
| 39103-62JB0-000 | Manual, navi | Radio (RADIO) |
| 39103-62JC1-000 | MANUAL,NAVI | Radio (RADIO) |
| 39103-63J21-000 | MANUAL,AUDIO | Radio (RADIO) |
| 39103-63JB0-000 | MANUAL,AUDIO | Radio (RADIO) |
| 39103-63JF0-000 | MANUAL,AUDIO | Radio (RADIO) |
| 39103-66J00-000 | MANUAL,NAVI | Radio (RADIO) |
| 39103-66J10-000 | MANUAL,NAVI | Radio (RADIO) |
| 39161-65J00-000 | COVER,RADIO HOLE | Radio (RADIO) |
| 39161-74G00-000 | COVER,RADIO HOLE | Radio (RADIO) |
| 39161-80J00-000 | COVER,RADIO HOLE | Radio (RADIO) |
| 39182-65J01-000 | POCKET,TUNER | Radio (RADIO) |
| 39182-70E51-000 | POCKET,TUNER | Radio (RADIO) |
| 39182-80J00-000 | Pocket,tuner | Radio (RADIO) |
| 39182-80J10-000 | POCKET,TUNER | Radio (RADIO) |
| 39251-64J00-000 | ROD,ANTENNA | Radio (RADIO) |
| 39251-81JA0-000 | ROD,ANTENNA | Radio (RADIO) |
| 39253-63J10-000 | BASE,ANTENNA | Radio (RADIO) |
| 39253-81JA1-000 | Base,antenna | Radio (RADIO) |
| 39253-81JA2-000 | BASE,ANTENNA | Radio (RADIO) |
| 39269-63J00-000 | NUT,ANTENNA | Radio (RADIO) |
| 39270-63J00-000 | FEEDER,I/P | Radio (RADIO) |
| 39271-63J11-000 | FEEDER,ROOF,R | Radio (RADIO) |
| 39312-78F10-000 | WIRE,NOISE SUPPR | Radio (RADIO) |
| 39321-63J10-000 | BRACKET,TUNER | Radio (RADIO) |
| 39321-63J20-000 | BRACKET,TUNER | Radio (RADIO) |
| 39321-63J30-000 | BRACKET,TUNER | Radio (RADIO) |
| 39321-63JA1-000 | BRACKET,TUNER | Radio (RADIO) |
| 39350-58J30-000 | COVER,SPEAKER HOLE | Radio (RADIO) |
| 39915-62JA5-000 | Cd, navi | Radio (RADIO) |
| 39920-66J00-000 | UNIT ASSY,NAVI | Radio (RADIO) |
| 39920-66J10-000 | UNIT ASSY,NAVI | Radio (RADIO) |
| 39950-62JA0-000 | Antenna assy, gps | Radio (RADIO) |
| 39950-63J01-000 | ANTENNA ASSY,GPS | Radio (RADIO) |
