RS413

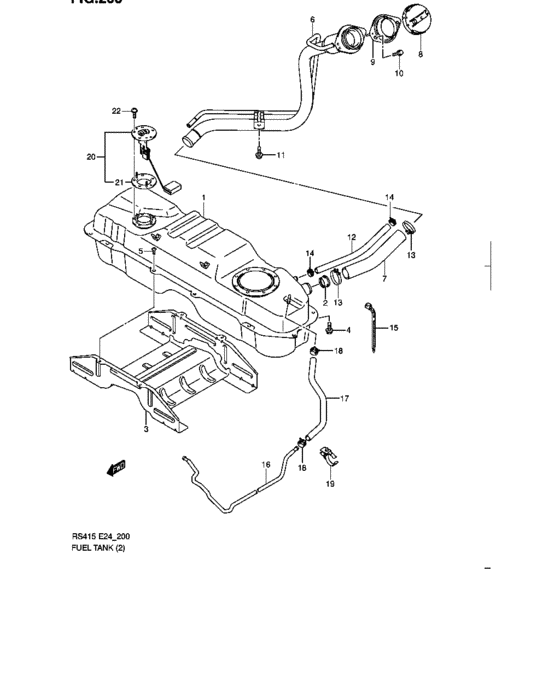

Fuel tank (4WD) 26
| # | OEM | Part name |
|---|---|---|
| 1 | 89101-62811-000 | Tank assy,fuel |
| 1 | 89101-62813-000 | TANK ASSY,FUEL |
| 2 | 89280-77A00-000 | VALVE,FUEL TANK INLET |
| 3 | 89310-62J50-000 | PROTECTOR,FUEL TANK |
| 4 | 09118-08151-XC0 | BOLT(8X25) |
| 4 | 09118-08161-000 | BOLT(8X25) |
| 5 | 02142-0510A-000 | SCREW - Bolt, oil pump rotor plate |
| 5 | 02142-0510B-000 | SCREW - Bolt |
| 6 | 89201-62J61-000 | NECK ASSY,FUEL FILLER |
| 7 | 89241-62J50-000 | HOSE,FUEL TANK FILLER |
| 8 | 89260-65G00-000 | CAP ASSY,FUEL FILLER |
| 9 | 89285-58J00-000 | PACKING,FUEL FILLER |
| 10 | 09116-05014-000 | BOLT(5X20) |
| 11 | 09116-06205-000 | BOLT(6X16) |
| 12 | 09355-11188-600 | HOSE(11X17.8X600) |
| 13 | 09400-45411-000 | CLAMP |
| 14 | 09401-16407-000 | CLIP |
| 15 | 09407-19401-000 | CLAMP(L:190) |
| 16 | 89483-63J20-000 | PIPE,FUEL EVAP |
| 17 | 09355-54128-600 | Hose,5.4x12.2x600 |
| 17 | 09355-56128-600 | HOSE(5.6X12.4X600) |
| 18 | 09401-11415-000 | CLIP |
| 19 | 89242-62J50-000 | CLAMP,FILLER&BREATHER HOSE |
| 20 | 34810-63J20-000 | GAUGE ASSY,FUEL LEVEL |
| 21 | 34825-63J00-000 | GASKET,FUEL LEVEL GAUGE |
| 22 | 09136-05045-000 | SCREW(5X10) |
| OEM | Part name | Category |
|---|---|---|
| 02142-0510A-000 | SCREW - Bolt, oil pump rotor plate | Fuel tank (4WD) |
| 02142-0510B-000 | SCREW - Bolt | Fuel tank (4WD) |
| 09116-05014-000 | BOLT(5X20) | Fuel tank (4WD) |
| 09116-06205-000 | BOLT(6X16) | Fuel tank (4WD) |
| 09118-08151-XC0 | BOLT(8X25) | Fuel tank (4WD) |
| 09118-08161-000 | BOLT(8X25) | Fuel tank (4WD) |
| 09136-05045-000 | SCREW(5X10) | Fuel tank (4WD) |
| 09355-11188-600 | HOSE(11X17.8X600) | Fuel tank (4WD) |
| 09355-54128-600 | Hose,5.4x12.2x600 | Fuel tank (4WD) |
| 09355-56128-600 | HOSE(5.6X12.4X600) | Fuel tank (4WD) |
| 09400-45411-000 | CLAMP | Fuel tank (4WD) |
| 09401-11415-000 | CLIP | Fuel tank (4WD) |
| 09401-16407-000 | CLIP | Fuel tank (4WD) |
| 09407-19401-000 | CLAMP(L:190) | Fuel tank (4WD) |
| 34810-63J20-000 | GAUGE ASSY,FUEL LEVEL | Fuel tank (4WD) |
| 34825-63J00-000 | GASKET,FUEL LEVEL GAUGE | Fuel tank (4WD) |
| 89101-62811-000 | Tank assy,fuel | Fuel tank (4WD) |
| 89101-62813-000 | TANK ASSY,FUEL | Fuel tank (4WD) |
| 89201-62J61-000 | NECK ASSY,FUEL FILLER | Fuel tank (4WD) |
| 89241-62J50-000 | HOSE,FUEL TANK FILLER | Fuel tank (4WD) |
| 89242-62J50-000 | CLAMP,FILLER&BREATHER HOSE | Fuel tank (4WD) |
| 89260-65G00-000 | CAP ASSY,FUEL FILLER | Fuel tank (4WD) |
| 89280-77A00-000 | VALVE,FUEL TANK INLET | Fuel tank (4WD) |
| 89285-58J00-000 | PACKING,FUEL FILLER | Fuel tank (4WD) |
| 89310-62J50-000 | PROTECTOR,FUEL TANK | Fuel tank (4WD) |
| 89483-63J20-000 | PIPE,FUEL EVAP | Fuel tank (4WD) |
