Search › Model › RS413

RS413

Suzuki KEI-SWIFT · 4,228 parts · 222 categories

4,228 items

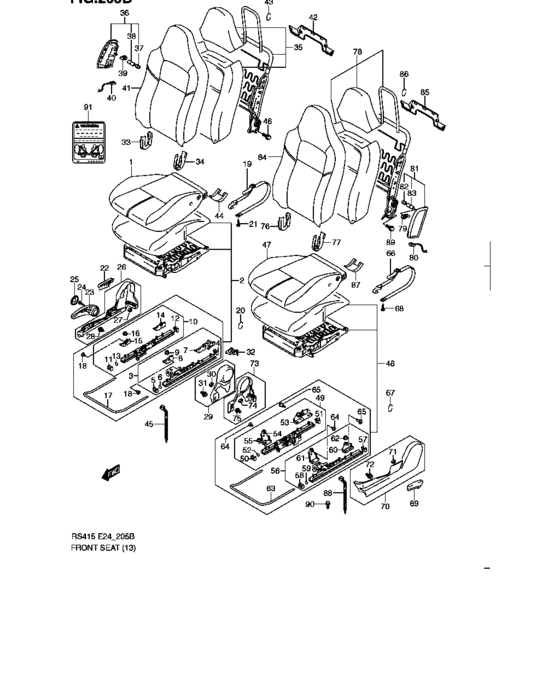

Front seat (TYPE 2,4:RHD:SPORT) 88

#	OEM	Part name
1	85180-57KJ0-CLR	Trim comp,fr cush,r
1	85180-57KJ1-CLR	TRIM,FR CUSHION,R(BLACK/RED)
1	85180-57KJ2-CLR	Trim,fr Cushion,r(Black/red)
1	85180-50L20-CLR	Trim,fr cush r(black)
1	85180-50L21-CLR	TRIM,FR CUSHION,R(BLACK/RED)
1	85180-50L22-CLR	Trim,fr Cushion,r(Black/red)
2	85105-57KJ1-000	CUSHION S/ASSY,FR,R
2	85105-57KK0-000	CUSHION S/ASSY,FR,R
3	86601-63J70-000	ADJUSTER S/ASSY,FR INSIDE,R
4	86652-63J00-000	Cover,lower rail end
4	86652-63J01-000	CAP,FR ADJUSTER LWR
5	86653-63J00-000	Cover,lower rail end
5	86653-63J01-000	CAP,FR ADJUSTER LWR
6	86654-63J00-000	COVER,UPR RAIL END
7	86712-63J70-000	RISER,RR INS,R
8	86721-63J70-000	RISER,FR INS,R
9	08316-1010A-000	NUT - Nut, kick starter
10	86603-63J70-000	ADJUSTER S/ASSY,FR OUTSIDE,R
14	86641-63J70-000	RISER,RR OUT
15	86710-63J70-000	RISER,FR OUT,R
17	86691-63J00-000	HANDLE,FR SEAT ADJ
18	86717-65J00-000	BOLT,RISER
19	85190-57K00-000	BAND,FR SEAT
20	09387-19001-000	RING
21	03141-0616A-000	SCREW
22	85211-63J10-P4Z	Knob,rclng,r
22	85211-63J11-P4Z	KNOB,RCLNG,R
22	85211-65J00-P4Z	Knob,rclng,r
22	85211-65JA0-P4Z	KNOB,RCLNG,R
23	85213-65J00-P4Z	LEVER,SEAT LIFTER
24	09132-05043-000	SCREW(5X10)
25	85214-63J20-P4Z	CAP,LIFTER LEVER
26	85220-63J11-P4Z	Cover, reclining outside - Gray
26	85220-63J12-P4Z	COVER,RCLNG OUTSIDE,R
26	85220-63J20-P4Z	COVER,RCLNG OUTSIDE,R
27	09409-10308-000	CLIP
28	09409-10313-000	CLIP
29	85240-63J10-P4Z	COVER,FR RCLNG INSIDE,R
29	85240-65J00-P4Z	COVER,FR RCLNG INSIDE,R
32	85243-63J70-000	COVER,RR RISER INSIDE,R
33	85222-63J00-P4Z	COVER,FF BACK FRAME,R
34	85242-63J00-P4Z	COVER,FR BACK FRAME,L(GRAY)
35	85305-57K10-000	BACK S/ASSY,FR,R
35	85305-57K00-000	BACK S/ASSY,FR,R
36	85350-62J00-P4Z	MODULE ASSY,SIDE A/B,R
37	85352-62J00-000	NUT,SIDE AIRBAG
38	85353-62J00-000	SLEEVE,SIDE AIRBAG
39	85351-62J00-000	FASTENER,SIDE AIR BAG MTG
40	85355-62J00-000	HARNESS ASSY,SIDE AIRBAG
41	85380-57K10-CLR	Trim,fr back(black)
41	85380-57K11-CLR	TRIM,FR BACK(BLACK/RED)
41	85380-57K00-CLR	Trim comp,fr back,r
41	85380-57K01-CLR	TRIM,FR BACK,R(BLACK/RED)
42	85392-65J00-000	SHIELD,FR BACK
44	86658-58J90-S9K	TRIM,FR CUSHION RR
45	09407-14403-000	CLAMP(L:125) - Clamp, spark plug cap
46	01550-1016A-000	Bolt - Plug, oil gallery
47	85680-57KG0-CLR	Trim comp,fr cush,l
47	85680-57KG1-CLR	TRIM,FR CUSHION,L(BLACK/RED)
47	85680-57KG2-CLR	Trim,fr Cushion,l(Black/red)
47	85680-50L00-CLR	Trim,fr cush l(black)
47	85680-50L01-CLR	TRIM,FR CUSHION,L(BLACK/RED)
48	85106-57KG0-000	CUSHION S/ASSY,FR,L
48	85106-57KH0-000	CUSHION S/ASSY,FR,L
49	86602-63J50-000	ADJUSTER S/ASSY,FR INSIDE,L
53	86721-63J50-000	RISER,FR INS
54	86762-63J50-000	RISER,RR INS,L
56	86604-63J50-000	ADJUSTER S/ASSY,FR OUTSIDE,L
56	86604-63J51-000	ADJUSTER S/ASSY,FR OUTSIDE,L
60	86641-63J50-000	Riser comp,rr outside
60	86641-63J51-000	RISER,RR OUT
61	86711-63J50-000	RISER,FR OUT
65	01550-1035A-000	Bolt - Bolt, fr fork upper
69	85711-63J10-P4Z	Knob,rclng,l
69	85711-63J11-P4Z	KNOB,RCLNG,L
69	85711-65J00-P4Z	Knob,rclng,l
69	85711-65JA0-P4Z	KNOB,RCLNG,L
70	85720-63J10-P4Z	COVER,RCLNG OUTSIDE,L
70	85720-63J20-P4Z	COVER,RCLNG OUTSIDE,L
73	85740-63J10-P4Z	COVER,FR RCLNG INSIDE,L
73	85740-65J00-P4Z	COVER,FR RCLNG INSIDE,L
78	85306-57K10-000	BACK S/ASSY,FR,L
78	85306-57K00-000	BACK S/ASSY,FR,L
81	85850-62J00-P4Z	MODULE ASSY,SIDE A/B,L
84	85880-57K00-CLR	Trim comp,fr back,l
84	85880-57K01-CLR	TRIM,FR BACK,L
90	09119-08097-000	BOLT(8X25)
91	85354-59JC1-000	LABEL,SIDE AIRBAG

OEM	Part name	Category
01550-1016A-000	Bolt - Plug, oil gallery	Front seat (TYPE 2,4:RHD:SPORT)
01550-1035A-000	Bolt - Bolt, fr fork upper	Front seat (TYPE 2,4:RHD:SPORT)
03141-0616A-000	SCREW	Front seat (TYPE 2,4:RHD:SPORT)
08316-1010A-000	NUT - Nut, kick starter	Front seat (TYPE 2,4:RHD:SPORT)
09119-08097-000	BOLT(8X25)	Front seat (TYPE 2,4:RHD:SPORT)
09132-05043-000	SCREW(5X10)	Front seat (TYPE 2,4:RHD:SPORT)
09387-19001-000	RING	Front seat (TYPE 2,4:RHD:SPORT)
09407-14403-000	CLAMP(L:125) - Clamp, spark plug cap	Front seat (TYPE 2,4:RHD:SPORT)
09409-10308-000	CLIP	Front seat (TYPE 2,4:RHD:SPORT)
09409-10313-000	CLIP	Front seat (TYPE 2,4:RHD:SPORT)
85105-57KJ1-000	CUSHION S/ASSY,FR,R	Front seat (TYPE 2,4:RHD:SPORT)
85105-57KK0-000	CUSHION S/ASSY,FR,R	Front seat (TYPE 2,4:RHD:SPORT)
85106-57KG0-000	CUSHION S/ASSY,FR,L	Front seat (TYPE 2,4:RHD:SPORT)
85106-57KH0-000	CUSHION S/ASSY,FR,L	Front seat (TYPE 2,4:RHD:SPORT)
85180-50L20-CLR	Trim,fr cush r(black)	Front seat (TYPE 2,4:RHD:SPORT)
85180-50L21-CLR	TRIM,FR CUSHION,R(BLACK/RED)	Front seat (TYPE 2,4:RHD:SPORT)
85180-50L22-CLR	Trim,fr Cushion,r(Black/red)	Front seat (TYPE 2,4:RHD:SPORT)
85180-57KJ0-CLR	Trim comp,fr cush,r	Front seat (TYPE 2,4:RHD:SPORT)
85180-57KJ1-CLR	TRIM,FR CUSHION,R(BLACK/RED)	Front seat (TYPE 2,4:RHD:SPORT)
85180-57KJ2-CLR	Trim,fr Cushion,r(Black/red)	Front seat (TYPE 2,4:RHD:SPORT)
85190-57K00-000	BAND,FR SEAT	Front seat (TYPE 2,4:RHD:SPORT)
85211-63J10-P4Z	Knob,rclng,r	Front seat (TYPE 2,4:RHD:SPORT)
85211-63J11-P4Z	KNOB,RCLNG,R	Front seat (TYPE 2,4:RHD:SPORT)
85211-65J00-P4Z	Knob,rclng,r	Front seat (TYPE 2,4:RHD:SPORT)
85211-65JA0-P4Z	KNOB,RCLNG,R	Front seat (TYPE 2,4:RHD:SPORT)
85213-65J00-P4Z	LEVER,SEAT LIFTER	Front seat (TYPE 2,4:RHD:SPORT)
85214-63J20-P4Z	CAP,LIFTER LEVER	Front seat (TYPE 2,4:RHD:SPORT)
85220-63J11-P4Z	Cover, reclining outside - Gray	Front seat (TYPE 2,4:RHD:SPORT)
85220-63J12-P4Z	COVER,RCLNG OUTSIDE,R	Front seat (TYPE 2,4:RHD:SPORT)
85220-63J20-P4Z	COVER,RCLNG OUTSIDE,R	Front seat (TYPE 2,4:RHD:SPORT)
85222-63J00-P4Z	COVER,FF BACK FRAME,R	Front seat (TYPE 2,4:RHD:SPORT)
85240-63J10-P4Z	COVER,FR RCLNG INSIDE,R	Front seat (TYPE 2,4:RHD:SPORT)
85240-65J00-P4Z	COVER,FR RCLNG INSIDE,R	Front seat (TYPE 2,4:RHD:SPORT)
85242-63J00-P4Z	COVER,FR BACK FRAME,L(GRAY)	Front seat (TYPE 2,4:RHD:SPORT)
85243-63J70-000	COVER,RR RISER INSIDE,R	Front seat (TYPE 2,4:RHD:SPORT)
85305-57K00-000	BACK S/ASSY,FR,R	Front seat (TYPE 2,4:RHD:SPORT)
85305-57K10-000	BACK S/ASSY,FR,R	Front seat (TYPE 2,4:RHD:SPORT)
85306-57K00-000	BACK S/ASSY,FR,L	Front seat (TYPE 2,4:RHD:SPORT)
85306-57K10-000	BACK S/ASSY,FR,L	Front seat (TYPE 2,4:RHD:SPORT)
85350-62J00-P4Z	MODULE ASSY,SIDE A/B,R	Front seat (TYPE 2,4:RHD:SPORT)
85351-62J00-000	FASTENER,SIDE AIR BAG MTG	Front seat (TYPE 2,4:RHD:SPORT)
85352-62J00-000	NUT,SIDE AIRBAG	Front seat (TYPE 2,4:RHD:SPORT)
85353-62J00-000	SLEEVE,SIDE AIRBAG	Front seat (TYPE 2,4:RHD:SPORT)
85354-59JC1-000	LABEL,SIDE AIRBAG	Front seat (TYPE 2,4:RHD:SPORT)
85355-62J00-000	HARNESS ASSY,SIDE AIRBAG	Front seat (TYPE 2,4:RHD:SPORT)
85380-57K00-CLR	Trim comp,fr back,r	Front seat (TYPE 2,4:RHD:SPORT)
85380-57K01-CLR	TRIM,FR BACK,R(BLACK/RED)	Front seat (TYPE 2,4:RHD:SPORT)
85380-57K10-CLR	Trim,fr back(black)	Front seat (TYPE 2,4:RHD:SPORT)
85380-57K11-CLR	TRIM,FR BACK(BLACK/RED)	Front seat (TYPE 2,4:RHD:SPORT)
85392-65J00-000	SHIELD,FR BACK	Front seat (TYPE 2,4:RHD:SPORT)
85680-50L00-CLR	Trim,fr cush l(black)	Front seat (TYPE 2,4:RHD:SPORT)
85680-50L01-CLR	TRIM,FR CUSHION,L(BLACK/RED)	Front seat (TYPE 2,4:RHD:SPORT)
85680-57KG0-CLR	Trim comp,fr cush,l	Front seat (TYPE 2,4:RHD:SPORT)
85680-57KG1-CLR	TRIM,FR CUSHION,L(BLACK/RED)	Front seat (TYPE 2,4:RHD:SPORT)
85680-57KG2-CLR	Trim,fr Cushion,l(Black/red)	Front seat (TYPE 2,4:RHD:SPORT)
85711-63J10-P4Z	Knob,rclng,l	Front seat (TYPE 2,4:RHD:SPORT)
85711-63J11-P4Z	KNOB,RCLNG,L	Front seat (TYPE 2,4:RHD:SPORT)
85711-65J00-P4Z	Knob,rclng,l	Front seat (TYPE 2,4:RHD:SPORT)
85711-65JA0-P4Z	KNOB,RCLNG,L	Front seat (TYPE 2,4:RHD:SPORT)
85720-63J10-P4Z	COVER,RCLNG OUTSIDE,L	Front seat (TYPE 2,4:RHD:SPORT)
85720-63J20-P4Z	COVER,RCLNG OUTSIDE,L	Front seat (TYPE 2,4:RHD:SPORT)
85740-63J10-P4Z	COVER,FR RCLNG INSIDE,L	Front seat (TYPE 2,4:RHD:SPORT)
85740-65J00-P4Z	COVER,FR RCLNG INSIDE,L	Front seat (TYPE 2,4:RHD:SPORT)
85850-62J00-P4Z	MODULE ASSY,SIDE A/B,L	Front seat (TYPE 2,4:RHD:SPORT)
85880-57K00-CLR	Trim comp,fr back,l	Front seat (TYPE 2,4:RHD:SPORT)
85880-57K01-CLR	TRIM,FR BACK,L	Front seat (TYPE 2,4:RHD:SPORT)
86601-63J70-000	ADJUSTER S/ASSY,FR INSIDE,R	Front seat (TYPE 2,4:RHD:SPORT)
86602-63J50-000	ADJUSTER S/ASSY,FR INSIDE,L	Front seat (TYPE 2,4:RHD:SPORT)
86603-63J70-000	ADJUSTER S/ASSY,FR OUTSIDE,R	Front seat (TYPE 2,4:RHD:SPORT)
86604-63J50-000	ADJUSTER S/ASSY,FR OUTSIDE,L	Front seat (TYPE 2,4:RHD:SPORT)
86604-63J51-000	ADJUSTER S/ASSY,FR OUTSIDE,L	Front seat (TYPE 2,4:RHD:SPORT)
86641-63J50-000	Riser comp,rr outside	Front seat (TYPE 2,4:RHD:SPORT)
86641-63J51-000	RISER,RR OUT	Front seat (TYPE 2,4:RHD:SPORT)
86641-63J70-000	RISER,RR OUT	Front seat (TYPE 2,4:RHD:SPORT)
86652-63J00-000	Cover,lower rail end	Front seat (TYPE 2,4:RHD:SPORT)
86652-63J01-000	CAP,FR ADJUSTER LWR	Front seat (TYPE 2,4:RHD:SPORT)
86653-63J00-000	Cover,lower rail end	Front seat (TYPE 2,4:RHD:SPORT)
86653-63J01-000	CAP,FR ADJUSTER LWR	Front seat (TYPE 2,4:RHD:SPORT)
86654-63J00-000	COVER,UPR RAIL END	Front seat (TYPE 2,4:RHD:SPORT)
86658-58J90-S9K	TRIM,FR CUSHION RR	Front seat (TYPE 2,4:RHD:SPORT)
86691-63J00-000	HANDLE,FR SEAT ADJ	Front seat (TYPE 2,4:RHD:SPORT)
86710-63J70-000	RISER,FR OUT,R	Front seat (TYPE 2,4:RHD:SPORT)
86711-63J50-000	RISER,FR OUT	Front seat (TYPE 2,4:RHD:SPORT)
86712-63J70-000	RISER,RR INS,R	Front seat (TYPE 2,4:RHD:SPORT)
86717-65J00-000	BOLT,RISER	Front seat (TYPE 2,4:RHD:SPORT)
86721-63J50-000	RISER,FR INS	Front seat (TYPE 2,4:RHD:SPORT)
86721-63J70-000	RISER,FR INS,R	Front seat (TYPE 2,4:RHD:SPORT)
86762-63J50-000	RISER,RR INS,L	Front seat (TYPE 2,4:RHD:SPORT)

Source: Public OEM parts-catalog data
Variants: 2 / 114
Category: 222
Collected: 2026-08-01
