| 01550-0612A-000 |
Bolt |

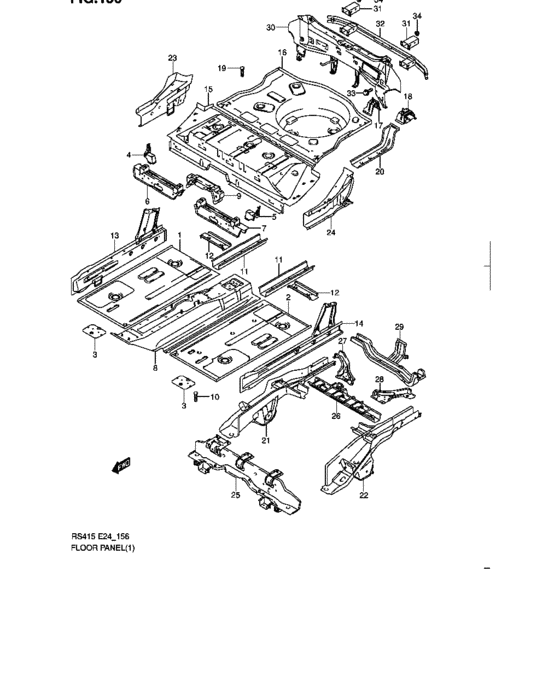

Floor panel (TYPE 1,2) |
| 08316-1006A-000 |
NUT |
Floor panel (TYPE 1,2) |
| 09119-05018-000 |
BOLT(8X35) |
Floor panel (TYPE 1,2) |
| 61111-63J10-000 |
PAN,MAIN FLOOR,R |
Floor panel (TYPE 1,2) |
| 61112-63J00-000 |
REINFORCEMENT,MAIN FL |
Floor panel (TYPE 1,2) |
| 61120-63J10-000 |
BRACKET,FR SEAT RR OUT,R |
Floor panel (TYPE 1,2) |
| 61130-63J10-000 |
CROSSMEMBER,FLR PAN UPR,R |
Floor panel (TYPE 1,2) |
| 61161-63J10-000 |
PAN,MAIN FLOOR,L |
Floor panel (TYPE 1,2) |
| 61170-63J10-000 |
BRACKET,FR SEAT RR OUT,L |
Floor panel (TYPE 1,2) |
| 61180-63J10-000 |
CROSSMEMBER,FLR PAN UPR,L |
Floor panel (TYPE 1,2) |
| 61210-63J51-000 |
TUNNEL,MAIN FLOOR |
Floor panel (TYPE 1,2) |
| 61230-63J00-000 |
BRACKET,FR SEAT RR INSIDE |
Floor panel (TYPE 1,2) |
| 61241-63J00-000 |
MEMBER,FL SIDE RR |
Floor panel (TYPE 1,2) |
| 61242-63J10-000 |
CROSSMEMBER,FLR PAN LWR |
Floor panel (TYPE 1,2) |
| 61310-63J10-000 |
PANEL,SIDE SILL INNER,R |
Floor panel (TYPE 1,2) |
| 61320-63J10-000 |
PANEL,SIDE SILL INNER,L |
Floor panel (TYPE 1,2) |
| 61511-57K00-000 |
PANEL,REAR FLOOR FR |
Floor panel (TYPE 1,2) |
| 61512-63J50-000 |
PANEL,REAR FLOOR RR |
Floor panel (TYPE 1,2) |
| 61520-63J50-000 |
BRACKET,SPARE TIRE |
Floor panel (TYPE 1,2) |
| 62100-63J50-000 |
Member comp,rear floor side,r |
Floor panel (TYPE 1,2) |
| 62210-63J51-000 |
COMPARTMENT,RR FLR SIDE,R |
Floor panel (TYPE 1,2) |
| 62300-63J50-000 |
MEMBER,RR FL SIDE,L |
Floor panel (TYPE 1,2) |
| 62410-63J51-000 |
COMPARTMENT,RR FLR SIDE,L |
Floor panel (TYPE 1,2) |
| 62600-63J51-000 |
Crossmember,rear floor fr |
Floor panel (TYPE 1,2) |
| 62700-63J50-000 |
Crossmember,rr floor ctr |
Floor panel (TYPE 1,2) |
| 62760-63J00-000 |
Brace comp,rr flr member,r |
Floor panel (TYPE 1,2) |
| 62770-63J01-000 |
Brace comp,rr flr member,l |
Floor panel (TYPE 1,2) |
| 62800-63J00-000 |
CROSSMEMBER,RR FL RR |
Floor panel (TYPE 1,2) |
| 65500-62J51-000 |
PANEL,BACK |
Floor panel (TYPE 1,2) |
| 65560-62J10-000 |
MEMBER,RR BUMPER |
Floor panel (TYPE 1,2) |
