Search › Model › RS110

RS110

Toyota CROWN-MAJESTA · 1979 · 4,527 parts · 163 categories

4,527 items

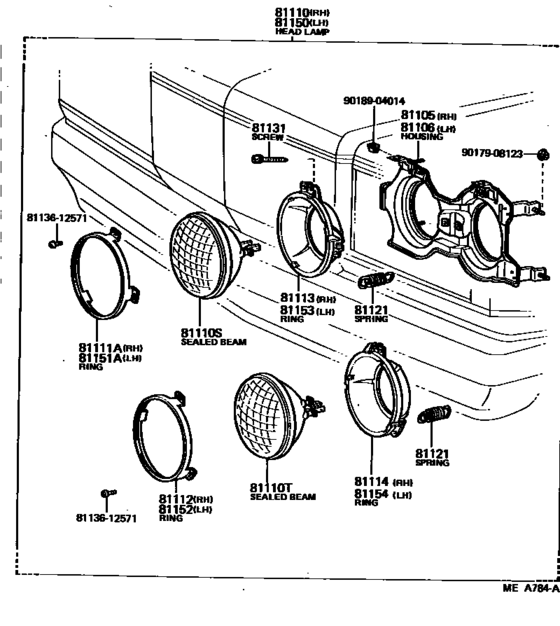

Headlamp ([08.1981 - ] (8108- )GS117,LS117,MS117 ; (8108- )LS110, MS110,RS110..STD,TAX) 28

#	OEM	Part name
81105	81105-30420	Housing Sub-Assy, Headlamp, Rh
81105	81105-30421	Housing Sub-Assy, Headlamp, Rh
81106	81106-30530	Housing Sub-Assy, Headlamp, Lh
81106	81106-30531	Housing Sub-Assy, Headlamp, Lh
81110	81110-39525	Headlamp Assy, Rh
81110	81110-39526	Headlamp Assy, Rh
81110	90981-02011	Sealed Beam Unit, No.1
81110	90981-02051	Sealed Beam Unit, No.1
81110	81110-36740	HEADLAMP ASSY
81110	90981-02012	Sealed Beam Unit, No.2
81110	90981-02H12	Sealed Beam unit (Set of 2)
81110	90981-02H13	Sealed Beam Unit, No.2
81111	81111-20280	Ring, Sealed Beam Retaining
81113	81153-20100	Ring, Sealed Beam Mounting, No.1 Rh - SEALED BEAM MOUNTING, NO.1 LH
81113	81153-30421	Ring, Sealed Beam Mounting, No.1 Rh
81114	81154-20100	Ring, Sealed Beam Mounting, No.2 Rh
81114	81154-30421	Ring, Sealed Beam Mounting, No.2 Rh
81121	81121-20100	Spring, Headlamp Tension
81131	81131-20043	Screw, Headlamp Adjusting
81150	81150-39525	Headlamp Assy, Lh
81150	81150-39526	Headlamp Assy, Lh
81153	81113-20100	Ring, Sealed Beam Mounting, No.1 Rh
81153	81113-30531	Ring, Sealed Beam Mounting, No.1 Lh
81154	81114-20100	Ring, Sealed Beam Mounting, No.2 Lh
81154	81114-30531	Ring, Sealed Beam Mounting, No.2 Lh
8113612571	81136-12571	Screw
9017908123	90179-08123	Nut (For Front Wiper Arm Setting)
9018904014	90189-04014	CLIP

OEM	Part name	Category
81105-30420	Housing Sub-Assy, Headlamp, Rh	Headlamp ([08.1981 - ] (8108- )GS117,LS117,MS117 ; (8108- )LS110, MS110,RS110..STD,TAX)
81105-30421	Housing Sub-Assy, Headlamp, Rh	Headlamp ([08.1981 - ] (8108- )GS117,LS117,MS117 ; (8108- )LS110, MS110,RS110..STD,TAX)
81106-30530	Housing Sub-Assy, Headlamp, Lh	Headlamp ([08.1981 - ] (8108- )GS117,LS117,MS117 ; (8108- )LS110, MS110,RS110..STD,TAX)
81106-30531	Housing Sub-Assy, Headlamp, Lh	Headlamp ([08.1981 - ] (8108- )GS117,LS117,MS117 ; (8108- )LS110, MS110,RS110..STD,TAX)
81110-36740	HEADLAMP ASSY	Headlamp ([08.1981 - ] (8108- )GS117,LS117,MS117 ; (8108- )LS110, MS110,RS110..STD,TAX)
81110-39525	Headlamp Assy, Rh	Headlamp ([08.1981 - ] (8108- )GS117,LS117,MS117 ; (8108- )LS110, MS110,RS110..STD,TAX)
81110-39526	Headlamp Assy, Rh	Headlamp ([08.1981 - ] (8108- )GS117,LS117,MS117 ; (8108- )LS110, MS110,RS110..STD,TAX)
81111-20280	Ring, Sealed Beam Retaining	Headlamp ([08.1981 - ] (8108- )GS117,LS117,MS117 ; (8108- )LS110, MS110,RS110..STD,TAX)
81113-20100	Ring, Sealed Beam Mounting, No.1 Rh	Headlamp ([08.1981 - ] (8108- )GS117,LS117,MS117 ; (8108- )LS110, MS110,RS110..STD,TAX)
81113-30531	Ring, Sealed Beam Mounting, No.1 Lh	Headlamp ([08.1981 - ] (8108- )GS117,LS117,MS117 ; (8108- )LS110, MS110,RS110..STD,TAX)
81114-20100	Ring, Sealed Beam Mounting, No.2 Lh	Headlamp ([08.1981 - ] (8108- )GS117,LS117,MS117 ; (8108- )LS110, MS110,RS110..STD,TAX)
81114-30531	Ring, Sealed Beam Mounting, No.2 Lh	Headlamp ([08.1981 - ] (8108- )GS117,LS117,MS117 ; (8108- )LS110, MS110,RS110..STD,TAX)
81121-20100	Spring, Headlamp Tension	Headlamp ([08.1981 - ] (8108- )GS117,LS117,MS117 ; (8108- )LS110, MS110,RS110..STD,TAX)
81131-20043	Screw, Headlamp Adjusting	Headlamp ([08.1981 - ] (8108- )GS117,LS117,MS117 ; (8108- )LS110, MS110,RS110..STD,TAX)
81136-12571	Screw	Headlamp ([08.1981 - ] (8108- )GS117,LS117,MS117 ; (8108- )LS110, MS110,RS110..STD,TAX)
81150-39525	Headlamp Assy, Lh	Headlamp ([08.1981 - ] (8108- )GS117,LS117,MS117 ; (8108- )LS110, MS110,RS110..STD,TAX)
81150-39526	Headlamp Assy, Lh	Headlamp ([08.1981 - ] (8108- )GS117,LS117,MS117 ; (8108- )LS110, MS110,RS110..STD,TAX)
81153-20100	Ring, Sealed Beam Mounting, No.1 Rh - SEALED BEAM MOUNTING, NO.1 LH	Headlamp ([08.1981 - ] (8108- )GS117,LS117,MS117 ; (8108- )LS110, MS110,RS110..STD,TAX)
81153-30421	Ring, Sealed Beam Mounting, No.1 Rh	Headlamp ([08.1981 - ] (8108- )GS117,LS117,MS117 ; (8108- )LS110, MS110,RS110..STD,TAX)
81154-20100	Ring, Sealed Beam Mounting, No.2 Rh	Headlamp ([08.1981 - ] (8108- )GS117,LS117,MS117 ; (8108- )LS110, MS110,RS110..STD,TAX)
81154-30421	Ring, Sealed Beam Mounting, No.2 Rh	Headlamp ([08.1981 - ] (8108- )GS117,LS117,MS117 ; (8108- )LS110, MS110,RS110..STD,TAX)
90179-08123	Nut (For Front Wiper Arm Setting)	Headlamp ([08.1981 - ] (8108- )GS117,LS117,MS117 ; (8108- )LS110, MS110,RS110..STD,TAX)
90189-04014	CLIP	Headlamp ([08.1981 - ] (8108- )GS117,LS117,MS117 ; (8108- )LS110, MS110,RS110..STD,TAX)
90981-02011	Sealed Beam Unit, No.1	Headlamp ([08.1981 - ] (8108- )GS117,LS117,MS117 ; (8108- )LS110, MS110,RS110..STD,TAX)
90981-02012	Sealed Beam Unit, No.2	Headlamp ([08.1981 - ] (8108- )GS117,LS117,MS117 ; (8108- )LS110, MS110,RS110..STD,TAX)
90981-02051	Sealed Beam Unit, No.1	Headlamp ([08.1981 - ] (8108- )GS117,LS117,MS117 ; (8108- )LS110, MS110,RS110..STD,TAX)
90981-02H12	Sealed Beam unit (Set of 2)	Headlamp ([08.1981 - ] (8108- )GS117,LS117,MS117 ; (8108- )LS110, MS110,RS110..STD,TAX)
90981-02H13	Sealed Beam Unit, No.2	Headlamp ([08.1981 - ] (8108- )GS117,LS117,MS117 ; (8108- )LS110, MS110,RS110..STD,TAX)
