Search › Model › RS110

RS110

Toyota CROWN-MAJESTA · 1979 · 4,527 parts · 163 categories

4,527 items

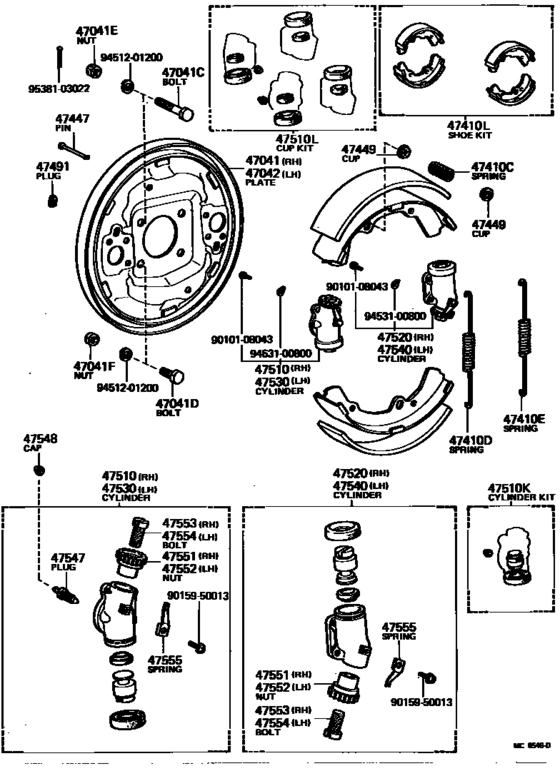

Front Drum Brake Wheel Cylinder & Backing Plate ([09.1979 - ] (7909- )LS110,MS110,RS110..STD,TAX) 39

#	OEM	Part name
47041	47041-30080	Plate Sub-Assy, Brake Backing, Front Rh
47041	47041-30090	Plate Sub-Assy, Brake Backing, Front Rh
47041	90102-12044	Bolt(For Backing Plate To Steering Knuckle Arm Setting)
47041	90101-12013	Bolt(For Backing Plate To Steering Knuckle Setting)
47041	90101-12030	Bolt, Hexagon(For Front Disc Brake Caliper)
47041	94145-71200	Nut(For Backing Plate To Steering Knuckle Arm Setting)
47041	94115-71200	Nut(For Backing Plate To Steering Knuckle Setting)
47042	47042-30080	Plate Sub-Assy, Brake Backing, Front Lh
47042	47042-30090	Plate Sub-Assy, Brake Backing, Front Lh
47410	90501-20756	Spring(For Front Brake Shoe Hold Down)
47410	90506-23005	Spring, Tension(For Front Brake Shoe Return)
47410	04494-30030	Shoe Kit, Front Brake
47410	04494-26060	Shoe Kit, Front Brake
47410	04496-30030	Shoe Kit, Front Brake
47447	47447-22010	Pin, Shoe Hold Down Spring
47449	47449-30020	Cup, Shoe Hold Down Spring(For Front Brake)
47491	47491-35030	Plug, Hole(For Front Brake)
47510	47510-39105	Cylinder Assy, Front Wheel Brake, Rh(For Front Or Upper)
47510	47510-30070	Cylinder Assy, Front Wheel Brake, Rh(For Front Or Upper)
47510	04473-30030	Cylinder Kit, Front Wheel
47510	04905-30030	Cup Kit, Front Wheel Cylinder
47520	47520-39075	Cylinder Assy, Front Wheel Brake, Rh(For Rear Or Lower)
47520	47520-30050	Cylinder Assy, Front Wheel Brake, Rh(For Rear Or Lower)
47530	47530-39105	Cylinder Assy, Front Wheel Brake, Lh(For Front Or Upper)
47530	47530-30070	Cylinder Assy, Front Wheel Brake, Lh(For Front Or Upper)
47540	47540-39075	Cylinder Assy, Front Wheel Brake, Lh(For Rear Or Lower)
47540	47540-30050	Cylinder Assy, Front Wheel Brake, Lh(For Rear Or Lower)
47547	47547-20030	Plug, Bleeder(For Power Steering By-Pass Valve)
47548	31478-30010	Bleeder Plug Cap
47551	47551-40010	Nut, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake)
47552	47552-40010	Nut, Rear Wheel Cylinder Adjusting, Rh(For Rear Brake)
47553	47553-30051	Bolt, Front Wheel Cylinder Adjusting, Rh(For Front Brake)
47554	47554-30051	Bolt, Front Wheel Cylinder Adjusting, Lh(For Front Brake)
47555	47555-30070	Spring, Adjuster Lock(For Front Brake)
9010108043	90101-08043	New Genuine Part
9015950013	90159-50013	New Genuine Part
9451201200	94512-01200	Washer
9453100800	94531-00800	Washer (For Transfer Shift Outer Lever)
9538103022	95381-03022	Cotter pin

OEM	Part name	Category
04473-30030	Cylinder Kit, Front Wheel	Front Drum Brake Wheel Cylinder & Backing Plate ([09.1979 - ] (7909- )LS110,MS110,RS110..STD,TAX)
04494-26060	Shoe Kit, Front Brake	Front Drum Brake Wheel Cylinder & Backing Plate ([09.1979 - ] (7909- )LS110,MS110,RS110..STD,TAX)
04494-30030	Shoe Kit, Front Brake	Front Drum Brake Wheel Cylinder & Backing Plate ([09.1979 - ] (7909- )LS110,MS110,RS110..STD,TAX)
04496-30030	Shoe Kit, Front Brake	Front Drum Brake Wheel Cylinder & Backing Plate ([09.1979 - ] (7909- )LS110,MS110,RS110..STD,TAX)
04905-30030	Cup Kit, Front Wheel Cylinder	Front Drum Brake Wheel Cylinder & Backing Plate ([09.1979 - ] (7909- )LS110,MS110,RS110..STD,TAX)
31478-30010	Bleeder Plug Cap	Front Drum Brake Wheel Cylinder & Backing Plate ([09.1979 - ] (7909- )LS110,MS110,RS110..STD,TAX)
47041-30080	Plate Sub-Assy, Brake Backing, Front Rh	Front Drum Brake Wheel Cylinder & Backing Plate ([09.1979 - ] (7909- )LS110,MS110,RS110..STD,TAX)
47041-30090	Plate Sub-Assy, Brake Backing, Front Rh	Front Drum Brake Wheel Cylinder & Backing Plate ([09.1979 - ] (7909- )LS110,MS110,RS110..STD,TAX)
47042-30080	Plate Sub-Assy, Brake Backing, Front Lh	Front Drum Brake Wheel Cylinder & Backing Plate ([09.1979 - ] (7909- )LS110,MS110,RS110..STD,TAX)
47042-30090	Plate Sub-Assy, Brake Backing, Front Lh	Front Drum Brake Wheel Cylinder & Backing Plate ([09.1979 - ] (7909- )LS110,MS110,RS110..STD,TAX)
47447-22010	Pin, Shoe Hold Down Spring	Front Drum Brake Wheel Cylinder & Backing Plate ([09.1979 - ] (7909- )LS110,MS110,RS110..STD,TAX)
47449-30020	Cup, Shoe Hold Down Spring(For Front Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([09.1979 - ] (7909- )LS110,MS110,RS110..STD,TAX)
47491-35030	Plug, Hole(For Front Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([09.1979 - ] (7909- )LS110,MS110,RS110..STD,TAX)
47510-30070	Cylinder Assy, Front Wheel Brake, Rh(For Front Or Upper)	Front Drum Brake Wheel Cylinder & Backing Plate ([09.1979 - ] (7909- )LS110,MS110,RS110..STD,TAX)
47510-39105	Cylinder Assy, Front Wheel Brake, Rh(For Front Or Upper)	Front Drum Brake Wheel Cylinder & Backing Plate ([09.1979 - ] (7909- )LS110,MS110,RS110..STD,TAX)
47520-30050	Cylinder Assy, Front Wheel Brake, Rh(For Rear Or Lower)	Front Drum Brake Wheel Cylinder & Backing Plate ([09.1979 - ] (7909- )LS110,MS110,RS110..STD,TAX)
47520-39075	Cylinder Assy, Front Wheel Brake, Rh(For Rear Or Lower)	Front Drum Brake Wheel Cylinder & Backing Plate ([09.1979 - ] (7909- )LS110,MS110,RS110..STD,TAX)
47530-30070	Cylinder Assy, Front Wheel Brake, Lh(For Front Or Upper)	Front Drum Brake Wheel Cylinder & Backing Plate ([09.1979 - ] (7909- )LS110,MS110,RS110..STD,TAX)
47530-39105	Cylinder Assy, Front Wheel Brake, Lh(For Front Or Upper)	Front Drum Brake Wheel Cylinder & Backing Plate ([09.1979 - ] (7909- )LS110,MS110,RS110..STD,TAX)
47540-30050	Cylinder Assy, Front Wheel Brake, Lh(For Rear Or Lower)	Front Drum Brake Wheel Cylinder & Backing Plate ([09.1979 - ] (7909- )LS110,MS110,RS110..STD,TAX)
47540-39075	Cylinder Assy, Front Wheel Brake, Lh(For Rear Or Lower)	Front Drum Brake Wheel Cylinder & Backing Plate ([09.1979 - ] (7909- )LS110,MS110,RS110..STD,TAX)
47547-20030	Plug, Bleeder(For Power Steering By-Pass Valve)	Front Drum Brake Wheel Cylinder & Backing Plate ([09.1979 - ] (7909- )LS110,MS110,RS110..STD,TAX)
47551-40010	Nut, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([09.1979 - ] (7909- )LS110,MS110,RS110..STD,TAX)
47552-40010	Nut, Rear Wheel Cylinder Adjusting, Rh(For Rear Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([09.1979 - ] (7909- )LS110,MS110,RS110..STD,TAX)
47553-30051	Bolt, Front Wheel Cylinder Adjusting, Rh(For Front Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([09.1979 - ] (7909- )LS110,MS110,RS110..STD,TAX)
47554-30051	Bolt, Front Wheel Cylinder Adjusting, Lh(For Front Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([09.1979 - ] (7909- )LS110,MS110,RS110..STD,TAX)
47555-30070	Spring, Adjuster Lock(For Front Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([09.1979 - ] (7909- )LS110,MS110,RS110..STD,TAX)
90101-08043	New Genuine Part	Front Drum Brake Wheel Cylinder & Backing Plate ([09.1979 - ] (7909- )LS110,MS110,RS110..STD,TAX)
90101-12013	Bolt(For Backing Plate To Steering Knuckle Setting)	Front Drum Brake Wheel Cylinder & Backing Plate ([09.1979 - ] (7909- )LS110,MS110,RS110..STD,TAX)
90101-12030	Bolt, Hexagon(For Front Disc Brake Caliper)	Front Drum Brake Wheel Cylinder & Backing Plate ([09.1979 - ] (7909- )LS110,MS110,RS110..STD,TAX)
90102-12044	Bolt(For Backing Plate To Steering Knuckle Arm Setting)	Front Drum Brake Wheel Cylinder & Backing Plate ([09.1979 - ] (7909- )LS110,MS110,RS110..STD,TAX)
90159-50013	New Genuine Part	Front Drum Brake Wheel Cylinder & Backing Plate ([09.1979 - ] (7909- )LS110,MS110,RS110..STD,TAX)
90501-20756	Spring(For Front Brake Shoe Hold Down)	Front Drum Brake Wheel Cylinder & Backing Plate ([09.1979 - ] (7909- )LS110,MS110,RS110..STD,TAX)
90506-23005	Spring, Tension(For Front Brake Shoe Return)	Front Drum Brake Wheel Cylinder & Backing Plate ([09.1979 - ] (7909- )LS110,MS110,RS110..STD,TAX)
94115-71200	Nut(For Backing Plate To Steering Knuckle Setting)	Front Drum Brake Wheel Cylinder & Backing Plate ([09.1979 - ] (7909- )LS110,MS110,RS110..STD,TAX)
94145-71200	Nut(For Backing Plate To Steering Knuckle Arm Setting)	Front Drum Brake Wheel Cylinder & Backing Plate ([09.1979 - ] (7909- )LS110,MS110,RS110..STD,TAX)
94512-01200	Washer	Front Drum Brake Wheel Cylinder & Backing Plate ([09.1979 - ] (7909- )LS110,MS110,RS110..STD,TAX)
94531-00800	Washer (For Transfer Shift Outer Lever)	Front Drum Brake Wheel Cylinder & Backing Plate ([09.1979 - ] (7909- )LS110,MS110,RS110..STD,TAX)
95381-03022	Cotter pin	Front Drum Brake Wheel Cylinder & Backing Plate ([09.1979 - ] (7909- )LS110,MS110,RS110..STD,TAX)
