Search › Model › RS110

RS110

Toyota CROWN-MAJESTA · 1979 · 4,527 parts · 163 categories

4,527 items

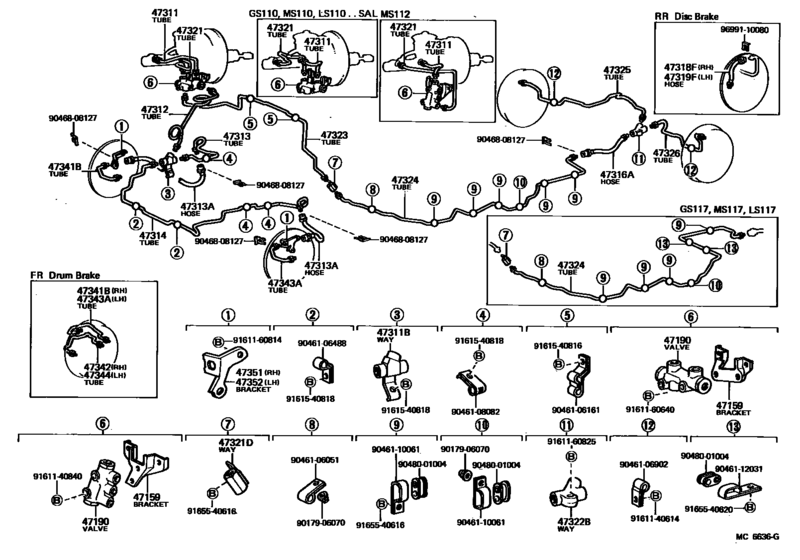

Brake Tube & Clamp ([09.1979 - ] (7909- )CBR,DSL,EFI,LPG,TWC) 47

#	OEM	Part name
47159	47159-30110	Bracket, Proportioning Valve
47190	47190-14010	Valve Assy, Proportioning & By-Pass
47311	47311-30320	Tube, Front Brake, No.1
47311	90413-10014	Way, No.1(For Front Brake Tube)
47312	47312-30090	Tube, Front Brake, No.2
47313	47313-30090	Tube, Front Brake, No.3
47313	90947-02361	Hose, Flexible, No.1(For Front)
47314	47314-30130	Tube, Front Brake, No.4
47316	96940-32855	Hose, Flexible, No.1
47321	47321-30040	Tube, Rear Brake, No.1
47321	90412-10041	Way, No.1(For Rear Brake Tube)
47322	90413-10147	Way, 3(For Rear Brake Tube)
47323	47315-30160	Tube, Rear Brake, No.3
47323	47315-30230	Tube, Rear Brake, No.3
47324	47322-30060	Tube, Rear Brake, No.4
47325	47323-30050	Tube, Rear Brake, No.5
47326	47324-30010	Tube, Rear Brake, No.6
47341	47332-30110	Tube, Wheel Cylinder, Front Rh No.1
47342	47331-30061	Tube, Wheel Cylinder, Front Rh No.2
47343	47334-30110	Tube, Wheel Cylinder, Front Lh No.1
9017906070	90179-06070	Nut(For Steering Inter Shaft Dust Seal Cover)
9017906070	90179-06159	Nut, Rear Wiper Link Pivot, No.1
9046106051	90461-06051	New Genuine Part
9046106161	90461-06161	New Genuine Part
9046106488	90461-06488	New Genuine Part
9046106902	90461-06902	Clamp, Brake Tube, No.3
9046108082	90461-08082	New Genuine Part
9046110061	90461-10061	New Genuine Part
9046112031	90461-12031	New Genuine Part
9046808127	90468-08127	New Genuine Part
9046808127	96991-10080	CLIP
9048001004	90480-01004	New Genuine Part
9161140614	91611-40614	Bolt, Hexagon(For Steering Column Bracket)
9161140614	91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)
9161140840	91611-40840	New Genuine Part
9161140840	91611-60840	BOLT
9161160640	91611-60640	New Genuine Part
9161160814	91611-60814	Bolt
9161160825	91611-60825	Bolt(For Head To Camshaft Bearing Cap)
9161160825	91611-B0825	Bolt(For Clutch Release Cylinder Setting)
9161540816	91615-40816	Bolt (for Transmission Control Cable Bracket)
9161540818	91615-40818	Screw Or Bolt(for Valve Rocker Shaft Lock)
9161540818	91611-B0816	Bolt
9165540616	91655-40616	Bolt
9165540616	91651-60614	Bolt
9165540620	91655-40620	Bolt(For Oil Receiver Pipe)
9165540620	91651-60618	Bolt(For Oil Receiver Pipe)

OEM	Part name	Category
47159-30110	Bracket, Proportioning Valve	Brake Tube & Clamp ([09.1979 - ] (7909- )CBR,DSL,EFI,LPG,TWC)
47190-14010	Valve Assy, Proportioning & By-Pass	Brake Tube & Clamp ([09.1979 - ] (7909- )CBR,DSL,EFI,LPG,TWC)
47311-30320	Tube, Front Brake, No.1	Brake Tube & Clamp ([09.1979 - ] (7909- )CBR,DSL,EFI,LPG,TWC)
47312-30090	Tube, Front Brake, No.2	Brake Tube & Clamp ([09.1979 - ] (7909- )CBR,DSL,EFI,LPG,TWC)
47313-30090	Tube, Front Brake, No.3	Brake Tube & Clamp ([09.1979 - ] (7909- )CBR,DSL,EFI,LPG,TWC)
47314-30130	Tube, Front Brake, No.4	Brake Tube & Clamp ([09.1979 - ] (7909- )CBR,DSL,EFI,LPG,TWC)
47315-30160	Tube, Rear Brake, No.3	Brake Tube & Clamp ([09.1979 - ] (7909- )CBR,DSL,EFI,LPG,TWC)
47315-30230	Tube, Rear Brake, No.3	Brake Tube & Clamp ([09.1979 - ] (7909- )CBR,DSL,EFI,LPG,TWC)
47321-30040	Tube, Rear Brake, No.1	Brake Tube & Clamp ([09.1979 - ] (7909- )CBR,DSL,EFI,LPG,TWC)
47322-30060	Tube, Rear Brake, No.4	Brake Tube & Clamp ([09.1979 - ] (7909- )CBR,DSL,EFI,LPG,TWC)
47323-30050	Tube, Rear Brake, No.5	Brake Tube & Clamp ([09.1979 - ] (7909- )CBR,DSL,EFI,LPG,TWC)
47324-30010	Tube, Rear Brake, No.6	Brake Tube & Clamp ([09.1979 - ] (7909- )CBR,DSL,EFI,LPG,TWC)
47331-30061	Tube, Wheel Cylinder, Front Rh No.2	Brake Tube & Clamp ([09.1979 - ] (7909- )CBR,DSL,EFI,LPG,TWC)
47332-30110	Tube, Wheel Cylinder, Front Rh No.1	Brake Tube & Clamp ([09.1979 - ] (7909- )CBR,DSL,EFI,LPG,TWC)
47334-30110	Tube, Wheel Cylinder, Front Lh No.1	Brake Tube & Clamp ([09.1979 - ] (7909- )CBR,DSL,EFI,LPG,TWC)
90179-06070	Nut(For Steering Inter Shaft Dust Seal Cover)	Brake Tube & Clamp ([09.1979 - ] (7909- )CBR,DSL,EFI,LPG,TWC)
90179-06159	Nut, Rear Wiper Link Pivot, No.1	Brake Tube & Clamp ([09.1979 - ] (7909- )CBR,DSL,EFI,LPG,TWC)
90412-10041	Way, No.1(For Rear Brake Tube)	Brake Tube & Clamp ([09.1979 - ] (7909- )CBR,DSL,EFI,LPG,TWC)
90413-10014	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([09.1979 - ] (7909- )CBR,DSL,EFI,LPG,TWC)
90413-10147	Way, 3(For Rear Brake Tube)	Brake Tube & Clamp ([09.1979 - ] (7909- )CBR,DSL,EFI,LPG,TWC)
90461-06051	New Genuine Part	Brake Tube & Clamp ([09.1979 - ] (7909- )CBR,DSL,EFI,LPG,TWC)
90461-06161	New Genuine Part	Brake Tube & Clamp ([09.1979 - ] (7909- )CBR,DSL,EFI,LPG,TWC)
90461-06488	New Genuine Part	Brake Tube & Clamp ([09.1979 - ] (7909- )CBR,DSL,EFI,LPG,TWC)
90461-06902	Clamp, Brake Tube, No.3	Brake Tube & Clamp ([09.1979 - ] (7909- )CBR,DSL,EFI,LPG,TWC)
90461-08082	New Genuine Part	Brake Tube & Clamp ([09.1979 - ] (7909- )CBR,DSL,EFI,LPG,TWC)
90461-10061	New Genuine Part	Brake Tube & Clamp ([09.1979 - ] (7909- )CBR,DSL,EFI,LPG,TWC)
90461-12031	New Genuine Part	Brake Tube & Clamp ([09.1979 - ] (7909- )CBR,DSL,EFI,LPG,TWC)
90468-08127	New Genuine Part	Brake Tube & Clamp ([09.1979 - ] (7909- )CBR,DSL,EFI,LPG,TWC)
90480-01004	New Genuine Part	Brake Tube & Clamp ([09.1979 - ] (7909- )CBR,DSL,EFI,LPG,TWC)
90947-02361	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([09.1979 - ] (7909- )CBR,DSL,EFI,LPG,TWC)
91611-40614	Bolt, Hexagon(For Steering Column Bracket)	Brake Tube & Clamp ([09.1979 - ] (7909- )CBR,DSL,EFI,LPG,TWC)
91611-40840	New Genuine Part	Brake Tube & Clamp ([09.1979 - ] (7909- )CBR,DSL,EFI,LPG,TWC)
91611-60640	New Genuine Part	Brake Tube & Clamp ([09.1979 - ] (7909- )CBR,DSL,EFI,LPG,TWC)
91611-60814	Bolt	Brake Tube & Clamp ([09.1979 - ] (7909- )CBR,DSL,EFI,LPG,TWC)
91611-60825	Bolt(For Head To Camshaft Bearing Cap)	Brake Tube & Clamp ([09.1979 - ] (7909- )CBR,DSL,EFI,LPG,TWC)
91611-60840	BOLT	Brake Tube & Clamp ([09.1979 - ] (7909- )CBR,DSL,EFI,LPG,TWC)
91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)	Brake Tube & Clamp ([09.1979 - ] (7909- )CBR,DSL,EFI,LPG,TWC)
91611-B0816	Bolt	Brake Tube & Clamp ([09.1979 - ] (7909- )CBR,DSL,EFI,LPG,TWC)
91611-B0825	Bolt(For Clutch Release Cylinder Setting)	Brake Tube & Clamp ([09.1979 - ] (7909- )CBR,DSL,EFI,LPG,TWC)
91615-40816	Bolt (for Transmission Control Cable Bracket)	Brake Tube & Clamp ([09.1979 - ] (7909- )CBR,DSL,EFI,LPG,TWC)
91615-40818	Screw Or Bolt(for Valve Rocker Shaft Lock)	Brake Tube & Clamp ([09.1979 - ] (7909- )CBR,DSL,EFI,LPG,TWC)
91651-60614	Bolt	Brake Tube & Clamp ([09.1979 - ] (7909- )CBR,DSL,EFI,LPG,TWC)
91651-60618	Bolt(For Oil Receiver Pipe)	Brake Tube & Clamp ([09.1979 - ] (7909- )CBR,DSL,EFI,LPG,TWC)
91655-40616	Bolt	Brake Tube & Clamp ([09.1979 - ] (7909- )CBR,DSL,EFI,LPG,TWC)
91655-40620	Bolt(For Oil Receiver Pipe)	Brake Tube & Clamp ([09.1979 - ] (7909- )CBR,DSL,EFI,LPG,TWC)
96940-32855	Hose, Flexible, No.1	Brake Tube & Clamp ([09.1979 - ] (7909- )CBR,DSL,EFI,LPG,TWC)
96991-10080	CLIP	Brake Tube & Clamp ([09.1979 - ] (7909- )CBR,DSL,EFI,LPG,TWC)
