RR20

Toyota TOYOACE-TOWNACE-MASTERACE-LITEACE · 1978 · 2,769 parts · 142 categories

2,769 items

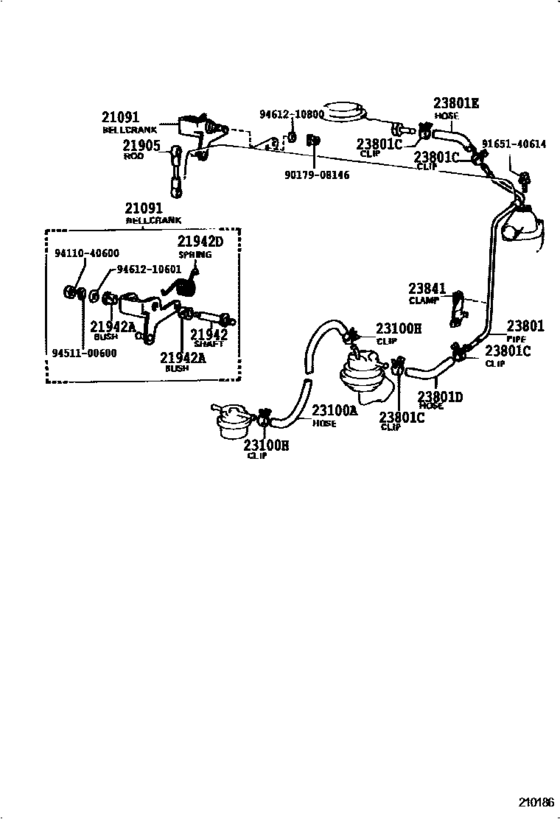

Fuel Pipe & Clamp ([10.1976 - ] (7610- )12RJ) 23

#	OEM	Part name
21091	21091-31011	Bellcrank Sub-Assy, Accelerator
21905	78104-20041	Rod Sub-Assy, Accelerator Connecting - ACCELERATOR CONNECTING, NO.2
21942	21941-31010	Shaft, Accelerator Link
21942	90386-08024	Bush(For Accelerator Link Shaft) - ACCELERATOR BELLCRANK
21942	90508-20001	Spring(For Accelerator Link Shaft)
23100	95332-06036	Hose, Fuel
23100	95333-06040	Hose
23100	95332-06040	Hose(For Valve To Timing Gear)
23100	96132-30600	Clip(For Actuator Hose)
23100	96132-51100	Clip (For Hose)
23801	23811-31061	Pipe Or Hose Sub-Assy, Carburetor Fuel, No.1
23801	23811-31070	Pipe Or Hose Sub-Assy, Carburetor Fuel, No.1
23801	90467-12001	Clip(For Carburetor Fuel Hose)
23801	95332-06010	Hose, Fuel Pipe, No.1
23801	95333-06010	Hose, Fuel
23841	23841-31020	Clamp, Fuel Pipe(Hose), No.1
9017908146	90179-08146	Nut
9017908146	90179-08204	Nut
9165140614	91651-40614	Bolt
9411040600	94110-40600	Nut, Rock
9451100600	94511-00600	Washer, Lock, No.2
9461210601	94612-10601	New Genuine Part
9461210800	94612-10800	Washer, Plate(For Repair Actuator Set)

OEM	Part name	Category
21091-31011	Bellcrank Sub-Assy, Accelerator	Fuel Pipe & Clamp ([10.1976 - ] (7610- )12RJ)
21941-31010	Shaft, Accelerator Link	Fuel Pipe & Clamp ([10.1976 - ] (7610- )12RJ)
23811-31061	Pipe Or Hose Sub-Assy, Carburetor Fuel, No.1	Fuel Pipe & Clamp ([10.1976 - ] (7610- )12RJ)
23811-31070	Pipe Or Hose Sub-Assy, Carburetor Fuel, No.1	Fuel Pipe & Clamp ([10.1976 - ] (7610- )12RJ)
23841-31020	Clamp, Fuel Pipe(Hose), No.1	Fuel Pipe & Clamp ([10.1976 - ] (7610- )12RJ)
78104-20041	Rod Sub-Assy, Accelerator Connecting - ACCELERATOR CONNECTING, NO.2	Fuel Pipe & Clamp ([10.1976 - ] (7610- )12RJ)
90179-08146	Nut	Fuel Pipe & Clamp ([10.1976 - ] (7610- )12RJ)
90179-08204	Nut	Fuel Pipe & Clamp ([10.1976 - ] (7610- )12RJ)
90386-08024	Bush(For Accelerator Link Shaft) - ACCELERATOR BELLCRANK	Fuel Pipe & Clamp ([10.1976 - ] (7610- )12RJ)
90467-12001	Clip(For Carburetor Fuel Hose)	Fuel Pipe & Clamp ([10.1976 - ] (7610- )12RJ)
90508-20001	Spring(For Accelerator Link Shaft)	Fuel Pipe & Clamp ([10.1976 - ] (7610- )12RJ)
91651-40614	Bolt	Fuel Pipe & Clamp ([10.1976 - ] (7610- )12RJ)
94110-40600	Nut, Rock	Fuel Pipe & Clamp ([10.1976 - ] (7610- )12RJ)
94511-00600	Washer, Lock, No.2	Fuel Pipe & Clamp ([10.1976 - ] (7610- )12RJ)
94612-10601	New Genuine Part	Fuel Pipe & Clamp ([10.1976 - ] (7610- )12RJ)
94612-10800	Washer, Plate(For Repair Actuator Set)	Fuel Pipe & Clamp ([10.1976 - ] (7610- )12RJ)
95332-06010	Hose, Fuel Pipe, No.1	Fuel Pipe & Clamp ([10.1976 - ] (7610- )12RJ)
95332-06036	Hose, Fuel	Fuel Pipe & Clamp ([10.1976 - ] (7610- )12RJ)
95332-06040	Hose(For Valve To Timing Gear)	Fuel Pipe & Clamp ([10.1976 - ] (7610- )12RJ)
95333-06010	Hose, Fuel	Fuel Pipe & Clamp ([10.1976 - ] (7610- )12RJ)
95333-06040	Hose	Fuel Pipe & Clamp ([10.1976 - ] (7610- )12RJ)
96132-30600	Clip(For Actuator Hose)	Fuel Pipe & Clamp ([10.1976 - ] (7610- )12RJ)
96132-51100	Clip (For Hose)	Fuel Pipe & Clamp ([10.1976 - ] (7610- )12RJ)
