Search › Model › RR11

RR11

Toyota TOYOACE-TOWNACE-MASTERACE-LITEACE · 1979 · 2,802 parts · 153 categories

2,802 items

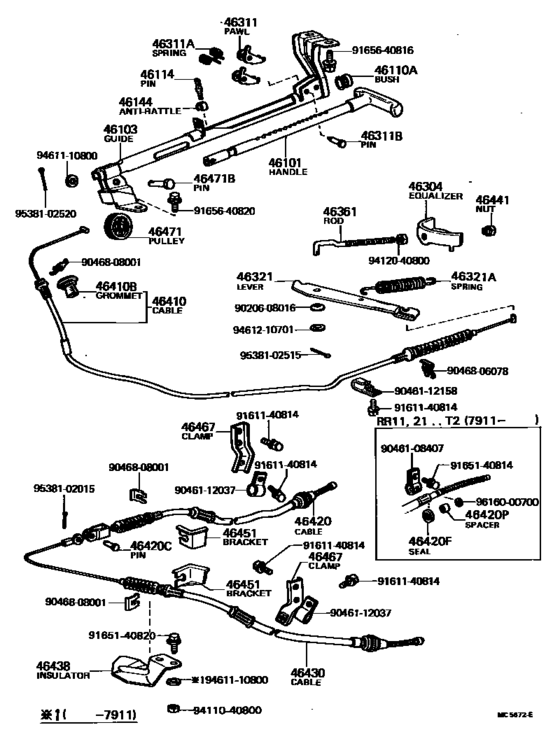

Parking Brake & Cable ([08.1978 - ] (7808- )RR1#,2#) 50

#	OEM	Part name
46101	46101-26030	Handle Sub-Assy, Parking Brake Control
46103	46103-28010	Guide Sub-Assy, Parking Brake Plunger
46110	90386-12048	Bush Or Ring, O (For Parking Brake Plunger)
46114	46114-20010	Pin(For Parking Brake Handle Set)
46144	46144-20010	Anti-Rattle, Parking Brake Plunger
46304	46341-26010	Equalizer Sub-Assy, Parking Brake
46311	46311-30041	Pawl, Parking Brake
46311	90508-08106	Spring, Torsion(For Parking Brake Plunger)
46311	46313-40010	Pin, Parking Brake Pawl
46321	46321-26011	Lever Sub-Assy, Parking Brake Intermediate
46321	90506-18017	Spring, Tensiion(For Parking Brake Intermediate Lever)
46361	46361-20010	Rod, Parking Brake Pull
46410	46410-28020	Cable Assy, Parking Brake, No.1
46410	90480-20004	Grommet(For Parking Brake Front Cable)
46420	46420-28021	Cable Assy, Parking Brake, No.2
46420	90240-06032	Pin(For Parking Brake Front Cable)
46430	46430-28060	Cable Assy, Parking Brake, No.3
46438	46438-28020	Insulator, Parking Cable Dust Cover Heat
46441	90179-08020	Nut, Wire Adjusting, No.1
46451	46451-28011	Bracket, Cable Support
46451	46452-28040	Bracket, Cable Support
46467	46467-28021	Clamp, Cable
46467	46487-28022	Clamp, Cable
46471	46471-20010	Pulley, Wire
46471	90240-08062	Pin, W/hole(For Intermediate Lever)
9020608016	90206-08016	Washer, Wave (For Low Speed Connecting Rod)
9046108407	90461-08407	New Genuine Part
9046112037	90461-12037	New Genuine Part
9046112158	90461-12158	New Genuine Part
9046806078	90468-06078	New Genuine Part
9046808001	90468-08001	CLIP
9161140814	91611-40814	Bolt(For Manual Transmission Oil Pan Setting)
9161140814	91611-60814	Bolt
9165140814	91651-40814	BOLT
9165140814	90080-11228	New Genuine Part
9165140820	91651-40820	Bolt
9165640816	91656-40816	New Genuine Part
9165640816	91651-B0814	Bolt with washer
9165640816	90119-A0109	New Genuine Part
9165640820	91656-40820	BOLT
9165640820	91651-60816	BOLT
9411040800	94110-40800	Nut(For Steering Damper)
9411040800	94130-00802	Nut, No.1 (For Center Support Bearing)
9412040800	94120-40800	Nut(For Clutch Pedal Stopper)
9461110800	94611-10800	Washer, Plate (For Transmission Control Cable)
9461210701	94612-10701	New Genuine Part
9538102015	95381-02015	New Genuine Part
9538102515	95381-02515	PIN
9538102520	95381-02520	PINCOTTER
9616000700	96160-00700	Ring, E(For Chain Tensioner Slipper)

OEM	Part name	Category
46101-26030	Handle Sub-Assy, Parking Brake Control	Parking Brake & Cable ([08.1978 - ] (7808- )RR1#,2#)
46103-28010	Guide Sub-Assy, Parking Brake Plunger	Parking Brake & Cable ([08.1978 - ] (7808- )RR1#,2#)
46114-20010	Pin(For Parking Brake Handle Set)	Parking Brake & Cable ([08.1978 - ] (7808- )RR1#,2#)
46144-20010	Anti-Rattle, Parking Brake Plunger	Parking Brake & Cable ([08.1978 - ] (7808- )RR1#,2#)
46311-30041	Pawl, Parking Brake	Parking Brake & Cable ([08.1978 - ] (7808- )RR1#,2#)
46313-40010	Pin, Parking Brake Pawl	Parking Brake & Cable ([08.1978 - ] (7808- )RR1#,2#)
46321-26011	Lever Sub-Assy, Parking Brake Intermediate	Parking Brake & Cable ([08.1978 - ] (7808- )RR1#,2#)
46341-26010	Equalizer Sub-Assy, Parking Brake	Parking Brake & Cable ([08.1978 - ] (7808- )RR1#,2#)
46361-20010	Rod, Parking Brake Pull	Parking Brake & Cable ([08.1978 - ] (7808- )RR1#,2#)
46410-28020	Cable Assy, Parking Brake, No.1	Parking Brake & Cable ([08.1978 - ] (7808- )RR1#,2#)
46420-28021	Cable Assy, Parking Brake, No.2	Parking Brake & Cable ([08.1978 - ] (7808- )RR1#,2#)
46430-28060	Cable Assy, Parking Brake, No.3	Parking Brake & Cable ([08.1978 - ] (7808- )RR1#,2#)
46438-28020	Insulator, Parking Cable Dust Cover Heat	Parking Brake & Cable ([08.1978 - ] (7808- )RR1#,2#)
46451-28011	Bracket, Cable Support	Parking Brake & Cable ([08.1978 - ] (7808- )RR1#,2#)
46452-28040	Bracket, Cable Support	Parking Brake & Cable ([08.1978 - ] (7808- )RR1#,2#)
46467-28021	Clamp, Cable	Parking Brake & Cable ([08.1978 - ] (7808- )RR1#,2#)
46471-20010	Pulley, Wire	Parking Brake & Cable ([08.1978 - ] (7808- )RR1#,2#)
46487-28022	Clamp, Cable	Parking Brake & Cable ([08.1978 - ] (7808- )RR1#,2#)
90080-11228	New Genuine Part	Parking Brake & Cable ([08.1978 - ] (7808- )RR1#,2#)
90119-A0109	New Genuine Part	Parking Brake & Cable ([08.1978 - ] (7808- )RR1#,2#)
90179-08020	Nut, Wire Adjusting, No.1	Parking Brake & Cable ([08.1978 - ] (7808- )RR1#,2#)
90206-08016	Washer, Wave (For Low Speed Connecting Rod)	Parking Brake & Cable ([08.1978 - ] (7808- )RR1#,2#)
90240-06032	Pin(For Parking Brake Front Cable)	Parking Brake & Cable ([08.1978 - ] (7808- )RR1#,2#)
90240-08062	Pin, W/hole(For Intermediate Lever)	Parking Brake & Cable ([08.1978 - ] (7808- )RR1#,2#)
90386-12048	Bush Or Ring, O (For Parking Brake Plunger)	Parking Brake & Cable ([08.1978 - ] (7808- )RR1#,2#)
90461-08407	New Genuine Part	Parking Brake & Cable ([08.1978 - ] (7808- )RR1#,2#)
90461-12037	New Genuine Part	Parking Brake & Cable ([08.1978 - ] (7808- )RR1#,2#)
90461-12158	New Genuine Part	Parking Brake & Cable ([08.1978 - ] (7808- )RR1#,2#)
90468-06078	New Genuine Part	Parking Brake & Cable ([08.1978 - ] (7808- )RR1#,2#)
90468-08001	CLIP	Parking Brake & Cable ([08.1978 - ] (7808- )RR1#,2#)
90480-20004	Grommet(For Parking Brake Front Cable)	Parking Brake & Cable ([08.1978 - ] (7808- )RR1#,2#)
90506-18017	Spring, Tensiion(For Parking Brake Intermediate Lever)	Parking Brake & Cable ([08.1978 - ] (7808- )RR1#,2#)
90508-08106	Spring, Torsion(For Parking Brake Plunger)	Parking Brake & Cable ([08.1978 - ] (7808- )RR1#,2#)
91611-40814	Bolt(For Manual Transmission Oil Pan Setting)	Parking Brake & Cable ([08.1978 - ] (7808- )RR1#,2#)
91611-60814	Bolt	Parking Brake & Cable ([08.1978 - ] (7808- )RR1#,2#)
91651-40814	BOLT	Parking Brake & Cable ([08.1978 - ] (7808- )RR1#,2#)
91651-40820	Bolt	Parking Brake & Cable ([08.1978 - ] (7808- )RR1#,2#)
91651-60816	BOLT	Parking Brake & Cable ([08.1978 - ] (7808- )RR1#,2#)
91651-B0814	Bolt with washer	Parking Brake & Cable ([08.1978 - ] (7808- )RR1#,2#)
91656-40816	New Genuine Part	Parking Brake & Cable ([08.1978 - ] (7808- )RR1#,2#)
91656-40820	BOLT	Parking Brake & Cable ([08.1978 - ] (7808- )RR1#,2#)
94110-40800	Nut(For Steering Damper)	Parking Brake & Cable ([08.1978 - ] (7808- )RR1#,2#)
94120-40800	Nut(For Clutch Pedal Stopper)	Parking Brake & Cable ([08.1978 - ] (7808- )RR1#,2#)
94130-00802	Nut, No.1 (For Center Support Bearing)	Parking Brake & Cable ([08.1978 - ] (7808- )RR1#,2#)
94611-10800	Washer, Plate (For Transmission Control Cable)	Parking Brake & Cable ([08.1978 - ] (7808- )RR1#,2#)
94612-10701	New Genuine Part	Parking Brake & Cable ([08.1978 - ] (7808- )RR1#,2#)
95381-02015	New Genuine Part	Parking Brake & Cable ([08.1978 - ] (7808- )RR1#,2#)
95381-02515	PIN	Parking Brake & Cable ([08.1978 - ] (7808- )RR1#,2#)
95381-02520	PINCOTTER	Parking Brake & Cable ([08.1978 - ] (7808- )RR1#,2#)
96160-00700	Ring, E(For Chain Tensioner Slipper)	Parking Brake & Cable ([08.1978 - ] (7808- )RR1#,2#)
