RR11

Toyota TOYOACE-TOWNACE-MASTERACE-LITEACE · 1979 · 2,802 parts · 153 categories

← Back to categories

2,802 items

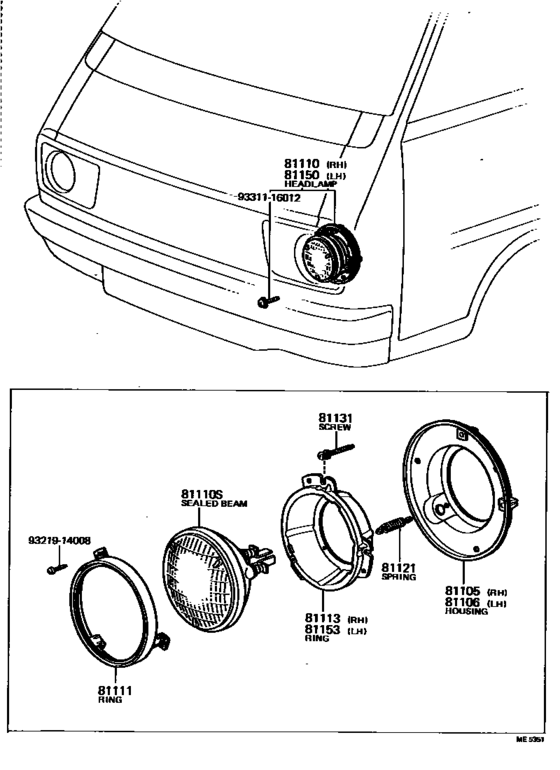

Headlamp ([01.1981 - ] (7610-8101) ; (8101- )KR12,RR11,21,TR11) 15

#	OEM	Part name
81105	81105-87003	Housing Sub-Assy, Headlamp, Rh
81105	81115-87001	Housing Sub-Assy, Headlamp, Rh
81110	81110-29425	Headlamp Assy, Rh
81110	81110-80111	Headlamp Assy, Rh
81110	90981-01015	Sealed Beam Unit, No.1
81111	81111-95A00	Ring, Sealed Beam Retaining
81113	81113-89117	Ring, Sealed Beam Mounting, No.1 Rh
81113	81153-95188	Ring, Sealed Beam Mounting, No.1 Rh
81113	81113-95A00	Ring, Sealed Beam Mounting, No.1 Rh - SEALED BEAM MOUNTING, NO.1 LH
81121	81121-62010	Spring, Headlamp Tension
81131	81131-10031	Screw, Headlamp Adjusting
81150	81150-29425	Headlamp Assy, Lh
81153	81153-95A00	Ring, Sealed Beam Mounting, No.1 Rh
9321914008	93219-14008	Screw, W/washer(For Bearing Cover Setting)
9331116012	93311-16012	Screw, Rear Axle Bearing Lock Nut

OEM	Part name	Category
81105-87003	Housing Sub-Assy, Headlamp, Rh	Headlamp ([01.1981 - ] (7610-8101) ; (8101- )KR12,RR11,21,TR11)
81110-29425	Headlamp Assy, Rh	Headlamp ([01.1981 - ] (7610-8101) ; (8101- )KR12,RR11,21,TR11)
81110-80111	Headlamp Assy, Rh	Headlamp ([01.1981 - ] (7610-8101) ; (8101- )KR12,RR11,21,TR11)
81111-95A00	Ring, Sealed Beam Retaining	Headlamp ([01.1981 - ] (7610-8101) ; (8101- )KR12,RR11,21,TR11)
81113-89117	Ring, Sealed Beam Mounting, No.1 Rh	Headlamp ([01.1981 - ] (7610-8101) ; (8101- )KR12,RR11,21,TR11)
81113-95A00	Ring, Sealed Beam Mounting, No.1 Rh - SEALED BEAM MOUNTING, NO.1 LH	Headlamp ([01.1981 - ] (7610-8101) ; (8101- )KR12,RR11,21,TR11)
81115-87001	Housing Sub-Assy, Headlamp, Rh	Headlamp ([01.1981 - ] (7610-8101) ; (8101- )KR12,RR11,21,TR11)
81121-62010	Spring, Headlamp Tension	Headlamp ([01.1981 - ] (7610-8101) ; (8101- )KR12,RR11,21,TR11)
81131-10031	Screw, Headlamp Adjusting	Headlamp ([01.1981 - ] (7610-8101) ; (8101- )KR12,RR11,21,TR11)
81150-29425	Headlamp Assy, Lh	Headlamp ([01.1981 - ] (7610-8101) ; (8101- )KR12,RR11,21,TR11)
81153-95188	Ring, Sealed Beam Mounting, No.1 Rh	Headlamp ([01.1981 - ] (7610-8101) ; (8101- )KR12,RR11,21,TR11)
81153-95A00	Ring, Sealed Beam Mounting, No.1 Rh	Headlamp ([01.1981 - ] (7610-8101) ; (8101- )KR12,RR11,21,TR11)
90981-01015	Sealed Beam Unit, No.1	Headlamp ([01.1981 - ] (7610-8101) ; (8101- )KR12,RR11,21,TR11)
93219-14008	Screw, W/washer(For Bearing Cover Setting)	Headlamp ([01.1981 - ] (7610-8101) ; (8101- )KR12,RR11,21,TR11)
93311-16012	Screw, Rear Axle Bearing Lock Nut	Headlamp ([01.1981 - ] (7610-8101) ; (8101- )KR12,RR11,21,TR11)
