RR11

Toyota TOYOACE-TOWNACE-MASTERACE-LITEACE · 1979 · 2,802 parts · 153 categories

2,802 items

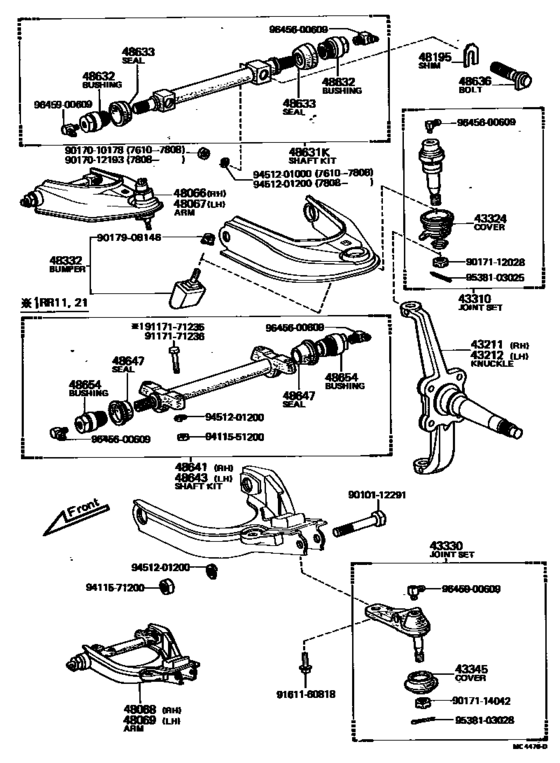

Front Axle Arm & Steering Knuckle ([10.1976 - ] (7610- )) 42

#	OEM	Part name
43211	43211-28010	Knuckle, Steering, Rh
43310	43310-29025	Joint Assy, Upper Ball
43324	43324-28010	Cover, Upper Joint Dust
43330	43330-29085	Joint Assy, Lower Ball, Front
43330	43340-29065	Joint Assy, Lower Ball, Front
43345	43345-28010	Cover, Lower Ball Joint Dust
48066	48066-28011	Arm Sub-Assy, Front Suspension, Upper Rh
48067	48067-28011	Arm Sub-Assy, Front Suspension, Upper Lh
48068	48068-28010	Arm Sub-Assy, Front Suspension, Lower No.1 Rh
48069	48069-28010	Arm Sub-Assy, Front Suspension, Lower No.1 Lh
48195	90565-12001	Shim, Camber Adjust
48195	90565-12002	Shim, Camber Adjust
48195	90565-12003	Shim, Camber Adjust
48332	48305-29045	Bumper, Front Spring, No.2
48332	48305-27010	Bumper Sub-Assy, Front Spring, No.2
48631	04485-28010	Shaft Kit, Upper Suspension Arm
48632	48632-20020	Bush, Upper Arm
48633	48633-20030	Seal, Upper Arm Pivot Dust
48636	48636-28010	Bolt, Upper Arm Set
48641	04486-30030	Shaft, Lower Arm, Rh
48647	48633-30020	Seal, Lower Arm Bush Dust
48654	48632-30012	Bush, Upper Arm
9010112291	90101-12291	Bolt(For Front Suspension Lower Arm)
9017010178	90170-10178	Nut(For Backing Plate To Rear Axle Housing Setting)
9017010178	94130-01002	Nut, Booster Sleeve Cylinder
9017012193	90170-12193	New Genuine Part
9017112028	90171-12028	Nut, Castle(For Pitman Arm)
9017114042	90171-14042	Nut, Castle(For Pitman Arm)
9017908146	90179-08146	Nut
9017908146	90179-08204	Nut
9117171235	91171-71235	Bolt(For Backing Plate To Steering Knuckle Setting)
9117171236	91171-71236	New Genuine Part
9161160818	91611-60818	Bolt(For Oil Receiver Pipe)
9161160818	90119-08830	Bolt(For Oil Receiver Pipe)
9411551200	94115-51200	Nut(For Backing Plate To Steering Knuckle Setting)
9411571200	94115-71200	Nut(For Backing Plate To Steering Knuckle Setting)
9451201000	94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)
9451201200	94512-01200	Washer
9538103025	95381-03025	PIN
9538103028	95381-03028	PIN
9645600609	96456-00609	FITTING GREASE
9645900609	96459-00609	Fitting, Grease

OEM	Part name	Category
04485-28010	Shaft Kit, Upper Suspension Arm	Front Axle Arm & Steering Knuckle ([10.1976 - ] (7610- ))
04486-30030	Shaft, Lower Arm, Rh	Front Axle Arm & Steering Knuckle ([10.1976 - ] (7610- ))
43211-28010	Knuckle, Steering, Rh	Front Axle Arm & Steering Knuckle ([10.1976 - ] (7610- ))
43310-29025	Joint Assy, Upper Ball	Front Axle Arm & Steering Knuckle ([10.1976 - ] (7610- ))
43324-28010	Cover, Upper Joint Dust	Front Axle Arm & Steering Knuckle ([10.1976 - ] (7610- ))
43330-29085	Joint Assy, Lower Ball, Front	Front Axle Arm & Steering Knuckle ([10.1976 - ] (7610- ))
43340-29065	Joint Assy, Lower Ball, Front	Front Axle Arm & Steering Knuckle ([10.1976 - ] (7610- ))
43345-28010	Cover, Lower Ball Joint Dust	Front Axle Arm & Steering Knuckle ([10.1976 - ] (7610- ))
48066-28011	Arm Sub-Assy, Front Suspension, Upper Rh	Front Axle Arm & Steering Knuckle ([10.1976 - ] (7610- ))
48067-28011	Arm Sub-Assy, Front Suspension, Upper Lh	Front Axle Arm & Steering Knuckle ([10.1976 - ] (7610- ))
48068-28010	Arm Sub-Assy, Front Suspension, Lower No.1 Rh	Front Axle Arm & Steering Knuckle ([10.1976 - ] (7610- ))
48069-28010	Arm Sub-Assy, Front Suspension, Lower No.1 Lh	Front Axle Arm & Steering Knuckle ([10.1976 - ] (7610- ))
48305-27010	Bumper Sub-Assy, Front Spring, No.2	Front Axle Arm & Steering Knuckle ([10.1976 - ] (7610- ))
48305-29045	Bumper, Front Spring, No.2	Front Axle Arm & Steering Knuckle ([10.1976 - ] (7610- ))
48632-20020	Bush, Upper Arm	Front Axle Arm & Steering Knuckle ([10.1976 - ] (7610- ))
48632-30012	Bush, Upper Arm	Front Axle Arm & Steering Knuckle ([10.1976 - ] (7610- ))
48633-20030	Seal, Upper Arm Pivot Dust	Front Axle Arm & Steering Knuckle ([10.1976 - ] (7610- ))
48633-30020	Seal, Lower Arm Bush Dust	Front Axle Arm & Steering Knuckle ([10.1976 - ] (7610- ))
48636-28010	Bolt, Upper Arm Set	Front Axle Arm & Steering Knuckle ([10.1976 - ] (7610- ))
90101-12291	Bolt(For Front Suspension Lower Arm)	Front Axle Arm & Steering Knuckle ([10.1976 - ] (7610- ))
90119-08830	Bolt(For Oil Receiver Pipe)	Front Axle Arm & Steering Knuckle ([10.1976 - ] (7610- ))
90170-10178	Nut(For Backing Plate To Rear Axle Housing Setting)	Front Axle Arm & Steering Knuckle ([10.1976 - ] (7610- ))
90170-12193	New Genuine Part	Front Axle Arm & Steering Knuckle ([10.1976 - ] (7610- ))
90171-12028	Nut, Castle(For Pitman Arm)	Front Axle Arm & Steering Knuckle ([10.1976 - ] (7610- ))
90171-14042	Nut, Castle(For Pitman Arm)	Front Axle Arm & Steering Knuckle ([10.1976 - ] (7610- ))
90179-08146	Nut	Front Axle Arm & Steering Knuckle ([10.1976 - ] (7610- ))
90179-08204	Nut	Front Axle Arm & Steering Knuckle ([10.1976 - ] (7610- ))
90565-12001	Shim, Camber Adjust	Front Axle Arm & Steering Knuckle ([10.1976 - ] (7610- ))
90565-12002	Shim, Camber Adjust	Front Axle Arm & Steering Knuckle ([10.1976 - ] (7610- ))
90565-12003	Shim, Camber Adjust	Front Axle Arm & Steering Knuckle ([10.1976 - ] (7610- ))
91171-71235	Bolt(For Backing Plate To Steering Knuckle Setting)	Front Axle Arm & Steering Knuckle ([10.1976 - ] (7610- ))
91171-71236	New Genuine Part	Front Axle Arm & Steering Knuckle ([10.1976 - ] (7610- ))
91611-60818	Bolt(For Oil Receiver Pipe)	Front Axle Arm & Steering Knuckle ([10.1976 - ] (7610- ))
94115-51200	Nut(For Backing Plate To Steering Knuckle Setting)	Front Axle Arm & Steering Knuckle ([10.1976 - ] (7610- ))
94115-71200	Nut(For Backing Plate To Steering Knuckle Setting)	Front Axle Arm & Steering Knuckle ([10.1976 - ] (7610- ))
94130-01002	Nut, Booster Sleeve Cylinder	Front Axle Arm & Steering Knuckle ([10.1976 - ] (7610- ))
94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)	Front Axle Arm & Steering Knuckle ([10.1976 - ] (7610- ))
94512-01200	Washer	Front Axle Arm & Steering Knuckle ([10.1976 - ] (7610- ))
95381-03025	PIN	Front Axle Arm & Steering Knuckle ([10.1976 - ] (7610- ))
95381-03028	PIN	Front Axle Arm & Steering Knuckle ([10.1976 - ] (7610- ))
96456-00609	FITTING GREASE	Front Axle Arm & Steering Knuckle ([10.1976 - ] (7610- ))
96459-00609	Fitting, Grease	Front Axle Arm & Steering Knuckle ([10.1976 - ] (7610- ))
