Search › Model › RQ420

RQ420

Suzuki RENO-FORENZA · 3,287 parts · 185 categories
RQ420 ×

← Back to categories

3,287 items

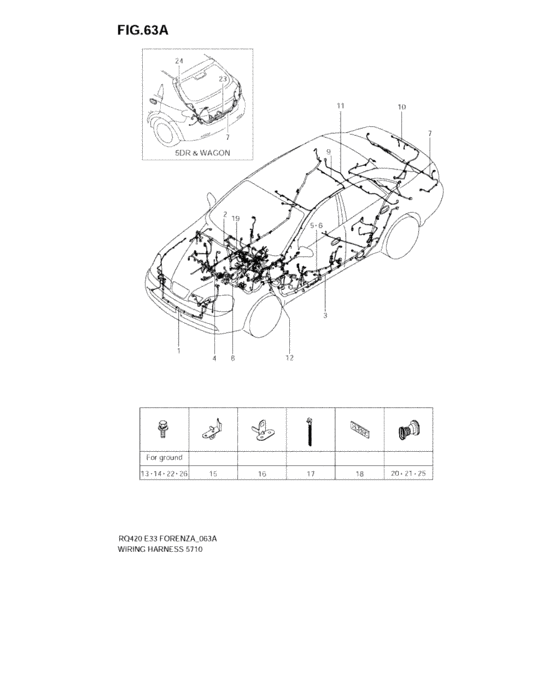

Wiring harness (07,08 MODEL) 90
#OEMPart name
1 36610-85ZN0-000 Harness assy, main
1 36609-85Z10-000 Harness assy, main
1 36609-85Z30-000 Harness assy, main
1 36610-85ZP0-000 Harness assy, main
1 36610-85ZT0-000 Harness assy, main
1 36609-85Z20-000 Harness assy, main
1 36609-85Z40-000 Harness assy, main
1 36610-85ZY0-000 Harness assy, main
1 36601-85Z30-000 Harness assy, main
1 36609-85Z50-000 Harness assy, main
1 36609-85Z70-000 Harness assy, main
1 36601-85Z00-000 Harness assy, main
1 36609-85Z60-000 Harness assy, main
1 36609-85Z80-000 Harness assy, main
1 36610-85ZS0-000 Harness assy, main
1 36609-85ZA0-000 Harness assy, main
1 36609-85Z90-000 Harness assy, main
2 36610-85ZD0-000 Harness assy, instrument panel
2 36609-85Z00-000 Harness assy, instrument panel
3 36629-85Z00-000 Harness assy, floor
3 36629-85Z10-000 Harness assy, floor
3 36629-85Z20-000 Harness assy, floor
3 36629-85Z30-000 Harness assy, floor
3 36629-85Z40-000 Harness assy, floor
3 36629-85Z50-000 Harness assy, floor
3 36629-85Z60-000 Harness assy, floor
3 36629-85Z70-000 Harness assy, floor
3 36629-85Z80-000 Harness assy, floor
3 36629-85Z90-000 Harness assy, floor
3 36629-85ZA0-000 Harness assy, floor
3 36629-85ZB0-000 Harness assy, floor
3 36629-85ZC0-000 Harness assy, floor
4 36650-85Z60-000 Harness assy, engine
4 36650-85Z70-000 Harness assy, engine
4 36650-85Z40-000 Harness assy, engine
4 36650-85Z50-000 Harness assy, engine
4 36650-85ZA0-000 Harness assy, engine
4 36650-85ZB0-000 Harness assy, engine
4 36650-85Z80-000 Harness assy, engine
4 36650-85Z90-000 Harness assy, engine
5 36756-85Z00-000 Wire, fr door lh
5 36756-85Z10-000 Wire, fr door lh
5 36756-85Z70-000 Wire, fr door lh
5 36756-85Z90-000 Wire, fr door lh
5 36756-85Z20-000 Wire, fr door lh
5 36756-85Z30-000 Wire, fr door lh
5 36756-85Z40-000 Wire, fr door lh
5 36756-85Z50-000 Wire, fr door lh
6 36757-85Z00-000 Wire, fr door rh
6 36757-85Z10-000 Wire, fr door rh
6 36757-85Z20-000 Wire, fr door rh
6 36757-85Z50-000 Wire, fr door rh
6 36757-85Z60-000 Wire, fr door rh
7 36640-85Z70-000 Harness assy, trunk room
7 36640-85Z60-000 Harness assy, trunk room
8 33800-85Z10-000 Cable, assy, battery
9 36820-85Z00-000 Wire, room lamp
9 36820-85Z10-000 Wire, room lamp
9 36820-85Z20-000 Wire, room lamp
9 36820-85Z30-000 Wire, room lamp
9 36820-85Z60-000 Wire, room lamp
9 36820-85Z70-000 Wire, room lamp
9 36820-85Z40-000 Wire, room lamp
9 36820-85Z50-000 Wire, room lamp
10 36640-85Z40-000 Harness assy, trunk lid
10 36640-85Z50-000 Harness assy, trunk lid
11 56310-85Z00-000 Harness assy, rr wheel sensor
12 36631-85Z10-000 Wire, tcm
12 36631-85Z20-000 Wire, abs
13 73247-86Z00-000 Bolt, trunk lid & roof wire
14 39941-86Z01-000 Screw
15 36651-85Z00-000 Bracket, engine harness
16 36651-85Z10-000 Bracket, engine harness
17 36649-86Z00-000 Clamp
18 89381-86Z20-000 Pad, fuel tank
19 36690-85Z70-000 Harness assy, air bag
19 36690-85Z80-000 Harness assy, air bag
20 36995-85Z00-000 Grommet, fr door
21 36995-85Z10-000 Grommet, rr door
22 13169-84Z00-000 Bolt
23 36680-85Z20-000 Harness assy, back door
23 36680-85Z90-000 Harness assy, back door
23 36680-85Z10-000 Harness assy, back door
23 36680-85Z00-000 Harness assy, back door
23 36680-85Z30-000 Harness assy, back door
24 36681-85Z00-000 Wire, back door extension
24 36681-85Z10-000 Wire, back door extension
24 36681-85Z30-000 Wire, back door extension
25 36993-85Z00-000 Grommet, back door
26 38861-84Z00-000 Bolt, cooling fan registor
