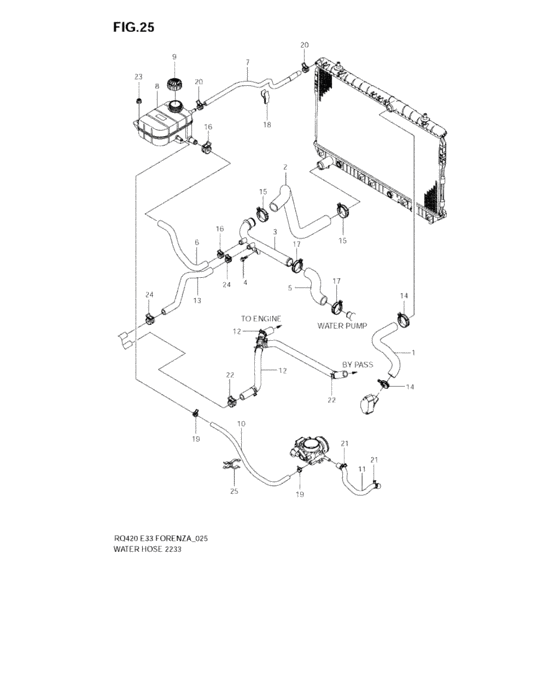

Water hose (WATER HOSE)
23
| # | OEM | Part name |
|---|
| 1 |
17852-85Z00-000 |
Hose, radiator inlet |
| 2 |
17854-85Z00-000 |
Hose, radiator outlet |
| 3 |
17860-85Z00-000 |
Pipe, water |
| 4 |
17869-84Z00-000 |
Bolt |
| 5 |
17858-85Z00-000 |
Hose, pipe to pump |
| 6 |
17856-85Z00-000 |
Hose, tank to pipe |
| 7 |
17857-85Z00-000 |
Hose, rdtr to tank |
| 8 |
17930-85Z10-000 |
Tank, surge |
| 9 |
17920-85Z00-000 |
Cap, surge tank |
| 10 |
13492-85Z00-000 |
Hose, throt body outlet |
| 10 |
13492-85Z10-000 |
Hose, throt body outlet |
| 11 |
13491-85Z00-000 |
Hose, throt body inlet |
| 11 |
13491-85Z10-000 |
Hose, throt body inlet |
| 12 |
17871-85Z00-000 |
Hose, heater inlet |
| 13 |
17872-85Z00-000 |
Hose, heater outlet |
| 14 |
17839-86Z00-000 |
Clip |
| 16 |
17859-86Z00-000 |
Clip |
| 18 |
17859-85Z00-000 |
Clip |
| 19 |
11195-86Z00-000 |
Clip |
| 22 |
17879-86Z00-000 |
Clip |
| 23 |
89211-84Z00-000 |
Nut |
| 24 |
17859-84Z00-000 |
Clip |
| 25 |
13499-85Z00-000 |
Clip |
| OEM |
Part name |
Category |
| 11195-86Z00-000 |
Clip |
Water hose (WATER HOSE) |
| 13491-85Z00-000 |
Hose, throt body inlet |
Water hose (WATER HOSE) |
| 13491-85Z10-000 |
Hose, throt body inlet |
Water hose (WATER HOSE) |
| 13492-85Z00-000 |
Hose, throt body outlet |
Water hose (WATER HOSE) |
| 13492-85Z10-000 |
Hose, throt body outlet |
Water hose (WATER HOSE) |
| 13499-85Z00-000 |
Clip |
Water hose (WATER HOSE) |
| 17839-86Z00-000 |
Clip |
Water hose (WATER HOSE) |
| 17852-85Z00-000 |
Hose, radiator inlet |
Water hose (WATER HOSE) |
| 17854-85Z00-000 |
Hose, radiator outlet |
Water hose (WATER HOSE) |
| 17856-85Z00-000 |
Hose, tank to pipe |
Water hose (WATER HOSE) |
| 17857-85Z00-000 |
Hose, rdtr to tank |
Water hose (WATER HOSE) |
| 17858-85Z00-000 |
Hose, pipe to pump |
Water hose (WATER HOSE) |
| 17859-84Z00-000 |
Clip |
Water hose (WATER HOSE) |
| 17859-85Z00-000 |
Clip |
Water hose (WATER HOSE) |
| 17859-86Z00-000 |
Clip |
Water hose (WATER HOSE) |
| 17860-85Z00-000 |
Pipe, water |
Water hose (WATER HOSE) |
| 17869-84Z00-000 |
Bolt |
Water hose (WATER HOSE) |
| 17871-85Z00-000 |
Hose, heater inlet |
Water hose (WATER HOSE) |
| 17872-85Z00-000 |
Hose, heater outlet |
Water hose (WATER HOSE) |
| 17879-86Z00-000 |
Clip |
Water hose (WATER HOSE) |
| 17920-85Z00-000 |
Cap, surge tank |
Water hose (WATER HOSE) |
| 17930-85Z10-000 |
Tank, surge |
Water hose (WATER HOSE) |
| 89211-84Z00-000 |
Nut |
Water hose (WATER HOSE) |
