Search › Model › RQ420
RQ420

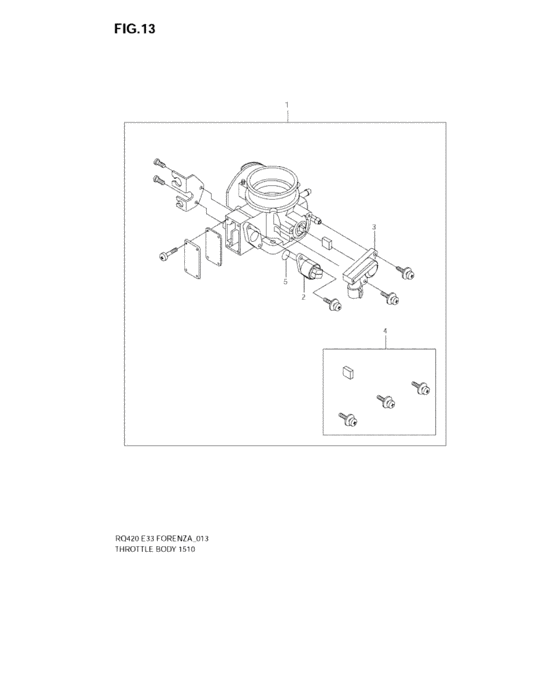

Throttle body (THROTTLE BODY) 8
| # | OEM | Part name |
|---|---|---|
| 1 | 13400-85Z10-000 | Body assy, throttle |
| 1 | 13400-85Z20-000 | Body assy, throttle |
| 1 | 13400-85Z21-000 | Body a-throttle |
| 1 | 13400-85Z00-000 | Body assy, throttle |
| 2 | 18137-85Z00-000 | Valve, isc |
| 3 | 13420-84Z00-000 | Sensor, throttle position |
| 4 | 13428-85Z00-000 | Screw set |
| 5 | 14139-85Z00-000 | O ring, isc valve |
| OEM | Part name | Category |
|---|---|---|
| 13400-85Z00-000 | Body assy, throttle | Throttle body (THROTTLE BODY) |
| 13400-85Z10-000 | Body assy, throttle | Throttle body (THROTTLE BODY) |
| 13400-85Z20-000 | Body assy, throttle | Throttle body (THROTTLE BODY) |
| 13400-85Z21-000 | Body a-throttle | Throttle body (THROTTLE BODY) |
| 13420-84Z00-000 | Sensor, throttle position | Throttle body (THROTTLE BODY) |
| 13428-85Z00-000 | Screw set | Throttle body (THROTTLE BODY) |
| 14139-85Z00-000 | O ring, isc valve | Throttle body (THROTTLE BODY) |
| 18137-85Z00-000 | Valve, isc | Throttle body (THROTTLE BODY) |
