Search › Model › RQ420
RQ420

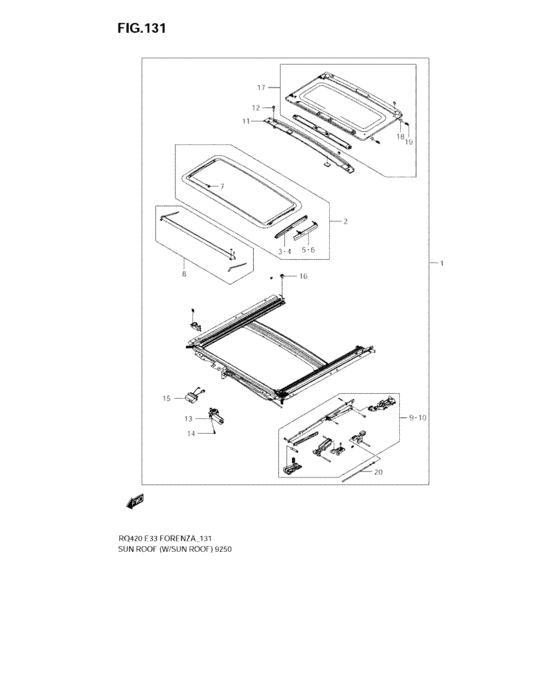

Sun roof (W/SUN ROOF) 22
| # | OEM | Part name |
|---|---|---|
| 1 | 78710-85Z00-000 | Roof assy, sliding |
| 1 | 78710-85Z10-000 | Roof assy, sliding |
| 1 | 78710-85Z11-000 | Roof a-sun |
| 2 | 78711-85Z00-000 | Glass assy, sliding roof |
| 3 | 78721-85Z00-000 | Cover, inner rh |
| 4 | 78722-85Z00-000 | Cover, inner lh |
| 5 | 78723-85Z00-000 | Cover, outer rh |
| 6 | 78724-85Z00-000 | Cover, outer lh |
| 7 | 78727-85Z00-000 | Bolt |
| 8 | 78712-85Z00-000 | Deflector |
| 9 | 78728-85Z01-000 | Mechanism, rh |
| 10 | 78729-85Z01-000 | Mechanism, lh |
| 11 | 78713-85Z00-000 | Channel |
| 12 | 78717-85Z00-000 | Screw |
| 13 | 78718-85Z00-000 | Motor, sliding roof |
| 14 | 78719-86Z00-000 | Screw |
| 15 | 78720-85Z00-000 | Box, relay |
| 16 | 78719-85Z00-000 | Stopper |
| 17 | 78714-85Z00-000 | Sunshade assy, sliding roof |
| 18 | 78715-85Z00-000 | Spring |
| 19 | 78716-85Z01-000 | Block |
| 20 | 78725-85Z00-000 | Cable |
| OEM | Part name | Category |
|---|---|---|
| 78710-85Z00-000 | Roof assy, sliding | Sun roof (W/SUN ROOF) |
| 78710-85Z10-000 | Roof assy, sliding | Sun roof (W/SUN ROOF) |
| 78710-85Z11-000 | Roof a-sun | Sun roof (W/SUN ROOF) |
| 78711-85Z00-000 | Glass assy, sliding roof | Sun roof (W/SUN ROOF) |
| 78712-85Z00-000 | Deflector | Sun roof (W/SUN ROOF) |
| 78713-85Z00-000 | Channel | Sun roof (W/SUN ROOF) |
| 78714-85Z00-000 | Sunshade assy, sliding roof | Sun roof (W/SUN ROOF) |
| 78715-85Z00-000 | Spring | Sun roof (W/SUN ROOF) |
| 78716-85Z01-000 | Block | Sun roof (W/SUN ROOF) |
| 78717-85Z00-000 | Screw | Sun roof (W/SUN ROOF) |
| 78718-85Z00-000 | Motor, sliding roof | Sun roof (W/SUN ROOF) |
| 78719-85Z00-000 | Stopper | Sun roof (W/SUN ROOF) |
| 78719-86Z00-000 | Screw | Sun roof (W/SUN ROOF) |
| 78720-85Z00-000 | Box, relay | Sun roof (W/SUN ROOF) |
| 78721-85Z00-000 | Cover, inner rh | Sun roof (W/SUN ROOF) |
| 78722-85Z00-000 | Cover, inner lh | Sun roof (W/SUN ROOF) |
| 78723-85Z00-000 | Cover, outer rh | Sun roof (W/SUN ROOF) |
| 78724-85Z00-000 | Cover, outer lh | Sun roof (W/SUN ROOF) |
| 78725-85Z00-000 | Cable | Sun roof (W/SUN ROOF) |
| 78727-85Z00-000 | Bolt | Sun roof (W/SUN ROOF) |
| 78728-85Z01-000 | Mechanism, rh | Sun roof (W/SUN ROOF) |
| 78729-85Z01-000 | Mechanism, lh | Sun roof (W/SUN ROOF) |
