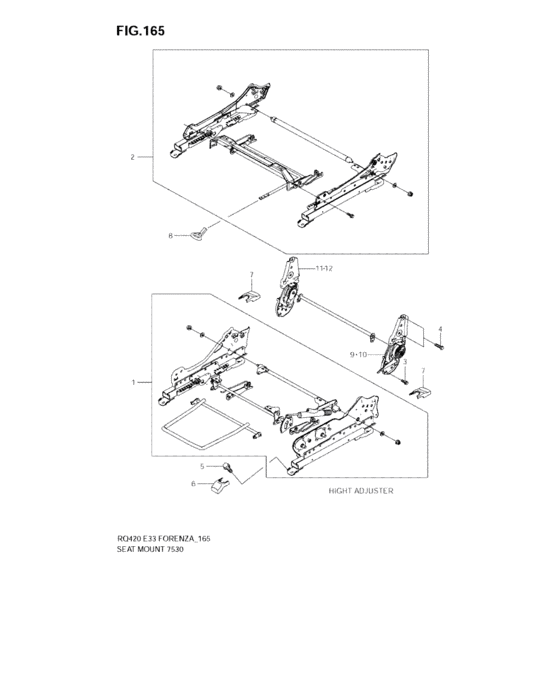

Seat mount (SEAT MOUNT)
14
| # | OEM | Part name |
|---|
| 1 |
86620-85Z00-000 |
Adjuster assy, lh |
| 2 |
86610-85Z10-000 |
Rail assy, otr rh |
| 2 |
86610-85Z00-000 |
Rail assy, otr rh |
| 3 |
86611-85Z00-000 |
Bolt |
| 4 |
86621-85Z00-000 |
Bolt |
| 5 |
86631-85Z00-000 |
Bolt |
| 6 |
85492-85Z00-000 |
Piece, fr |
| 7 |
85495-85Z00-000 |
Piece, rr |
| 8 |
86690-85Z00-000 |
Knob, fr seat rh |
| 9 |
86602-85Z00-000 |
Reclining assy, otr rh |
| 10 |
86604-85Z00-000 |
Reclining assy, otr lh |
| 11 |
86601-84Z00-000 |
Reclining assy, inr rh |
| 12 |
86603-84Z00-000 |
Reclining assy, inr lh |
| 13 |
86691-85Z00-000 |
Screw |
| OEM |
Part name |
Category |
| 85492-85Z00-000 |
Piece, fr |
Seat mount (SEAT MOUNT) |
| 85495-85Z00-000 |
Piece, rr |
Seat mount (SEAT MOUNT) |
| 86601-84Z00-000 |
Reclining assy, inr rh |
Seat mount (SEAT MOUNT) |
| 86602-85Z00-000 |
Reclining assy, otr rh |
Seat mount (SEAT MOUNT) |
| 86603-84Z00-000 |
Reclining assy, inr lh |
Seat mount (SEAT MOUNT) |
| 86604-85Z00-000 |
Reclining assy, otr lh |
Seat mount (SEAT MOUNT) |
| 86610-85Z00-000 |
Rail assy, otr rh |
Seat mount (SEAT MOUNT) |
| 86610-85Z10-000 |
Rail assy, otr rh |
Seat mount (SEAT MOUNT) |
| 86611-85Z00-000 |
Bolt |
Seat mount (SEAT MOUNT) |
| 86620-85Z00-000 |
Adjuster assy, lh |
Seat mount (SEAT MOUNT) |
| 86621-85Z00-000 |
Bolt |
Seat mount (SEAT MOUNT) |
| 86631-85Z00-000 |
Bolt |
Seat mount (SEAT MOUNT) |
| 86690-85Z00-000 |
Knob, fr seat rh |
Seat mount (SEAT MOUNT) |
| 86691-85Z00-000 |
Screw |
Seat mount (SEAT MOUNT) |
