Search › Model › RQ420
RQ420

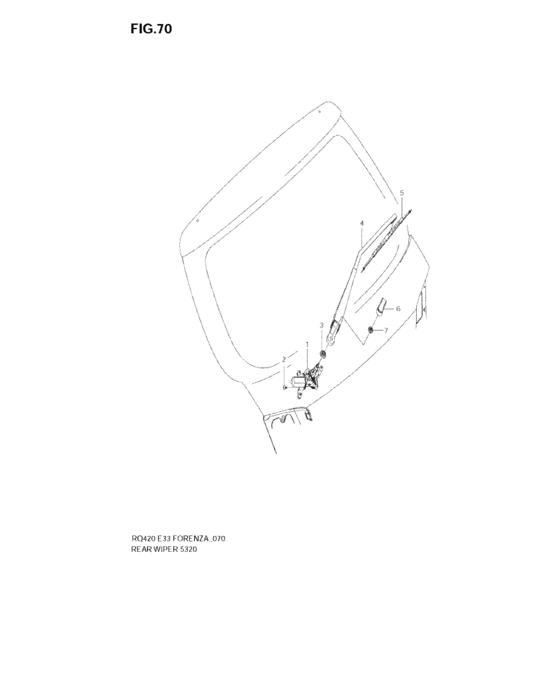

Rear window wiper (5DR,WAGON) 13
| # | OEM | Part name |
|---|---|---|
| 1 | 38810-85Z00-000 | Wiper assy, rr window |
| 1 | 38810-85Z10-000 | Wiper assy, rr window |
| 2 | 87951-85Z00-000 | Bolt |
| 3 | 38274-85Z10-000 | Cap, wiper pivot |
| 3 | 38274-85Z00-000 | Cap, wiper pivot |
| 4 | 38821-85Z10-000 | Arm assy, rr wiper |
| 4 | 38821-85Z11-000 | Arm a-wiper |
| 4 | 38821-85Z20-000 | Arm assy, rr wiper |
| 5 | 38340-85Z40-000 | Blade assy, rr wiper |
| 5 | 38340-85Z50-000 | Blade assy, rr wiper |
| 6 | 38315-85Z10-000 | Cover, arm head |
| 6 | 38315-85Z20-000 | Cover, arm head |
| 7 | 48232-86Z21-000 | Nut |
| OEM | Part name | Category |
|---|---|---|
| 38274-85Z00-000 | Cap, wiper pivot | Rear window wiper (5DR,WAGON) |
| 38274-85Z10-000 | Cap, wiper pivot | Rear window wiper (5DR,WAGON) |
| 38315-85Z10-000 | Cover, arm head | Rear window wiper (5DR,WAGON) |
| 38315-85Z20-000 | Cover, arm head | Rear window wiper (5DR,WAGON) |
| 38340-85Z40-000 | Blade assy, rr wiper | Rear window wiper (5DR,WAGON) |
| 38340-85Z50-000 | Blade assy, rr wiper | Rear window wiper (5DR,WAGON) |
| 38810-85Z00-000 | Wiper assy, rr window | Rear window wiper (5DR,WAGON) |
| 38810-85Z10-000 | Wiper assy, rr window | Rear window wiper (5DR,WAGON) |
| 38821-85Z10-000 | Arm assy, rr wiper | Rear window wiper (5DR,WAGON) |
| 38821-85Z11-000 | Arm a-wiper | Rear window wiper (5DR,WAGON) |
| 38821-85Z20-000 | Arm assy, rr wiper | Rear window wiper (5DR,WAGON) |
| 48232-86Z21-000 | Nut | Rear window wiper (5DR,WAGON) |
| 87951-85Z00-000 | Bolt | Rear window wiper (5DR,WAGON) |
