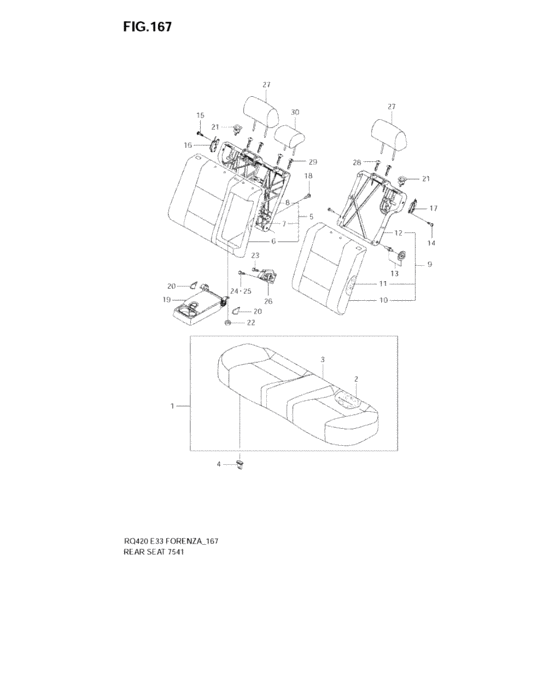

Rear seat (05 MODEL)
55
| # | OEM | Part name |
|---|
| 1 |
87101-85Z10-000 |
Seat assy, rr cush |
| 1 |
87101-85Z20-000 |
Seat assy, rr cush |
| 1 |
87101-85Z30-000 |
Seat assy, rr cush |
| 2 |
87110-85Z00-000 |
Pad, rr seat cush |
| 3 |
87107-85Z00-000 |
Trim assy, rr seat cush |
| 3 |
87107-85Z10-000 |
Trim assy, rr seat cush |
| 3 |
87107-85Z20-000 |
Trim assy, rr seat cush |
| 3 |
85308-85Z00-000 |
Trim assy, rr seat cush |
| 4 |
87460-86Z00-000 |
Hook |
| 5 |
87301-85Z01-000 |
Seat assy, rr back rh |
| 5 |
87301-85Z21-000 |
Seat assy, rr back rh |
| 5 |
87302-85Z50-000 |
Seat a-rr back |
| 5 |
87301-85Z10-000 |
Seat assy, rr back rh |
| 5 |
87302-85Z60-000 |
Seat a-rr back |
| 5 |
87301-85Z31-000 |
Seat assy, rr back rh |
| 5 |
87301-85Z41-000 |
Seat assy, rr back rh |
| 6 |
87380-85Z01-000 |
Trim assy, rr back rh |
| 6 |
87380-85Z21-000 |
Trim assy, rr back rh |
| 6 |
87380-85Z10-000 |
Trim assy, rr back rh |
| 6 |
87380-85Z31-000 |
Trim assy, rr back rh |
| 6 |
87380-85Z41-000 |
Trim assy, rr back rh |
| 7 |
87305-85Z00-000 |
Pad assy, rr back rh |
| 7 |
87305-85Z20-000 |
Pad assy, rr back rh |
| 7 |
87305-85Z10-000 |
Pad assy, rr back rh |
| 8 |
87310-85Z00-000 |
Frame assy, rr back rh |
| 8 |
87310-85Z10-000 |
Frame assy, rr back rh |
| 9 |
87302-85Z01-000 |
Seat assy, rr back lh |
| 9 |
87302-85Z11-000 |
Seat assy, rr back lh |
| 9 |
87302-85Z21-000 |
Seat assy, rr back lh |
| 10 |
87880-85Z01-000 |
Trim assy, rr back lh |
| 10 |
87880-85Z11-000 |
Trim assy, rr back lh |
| 10 |
87880-85Z21-000 |
Trim assy, rr back lh |
| 10 |
85108-85Z00-000 |
Trim assy, rr back lh |
| 11 |
87306-85Z00-000 |
Pad assy, rr back lh |
| 12 |
87810-85Z00-000 |
Frame assy, rr back lh |
| 13 |
87820-85Z00-000 |
Pin |
| 14 |
87485-85Z00-000 |
Screw |
| 16 |
87482-85Z00-000 |
Latch assy, rr back rh |
| 17 |
87481-85Z00-000 |
Latch assy, rr back lh |
| 18 |
87311-85Z00-000 |
Screw |
| 19 |
87501-85Z00-000 |
Armrest assy, rr back |
| 19 |
87501-85Z10-000 |
Armrest assy, rr back |
| 20 |
87571-85Z00-000 |
Cover, bracket armrest |
| 21 |
87211-85Z00-000 |
Knob, lock |
| 22 |
87511-85Z00-000 |
Nut |
| 23 |
87951-85Z00-000 |
Bolt |
| 24 |
86631-85Z00-000 |
Bolt |
| 26 |
87950-85Z00-000 |
Hinge assy, folding |
| 27 |
86401-85Z10-000 |
Headrestraint assy, rr |
| 27 |
86401-85Z50-000 |
Headrestraint assy, rr |
| 27 |
86401-85Z60-000 |
Headrestraint assy, rr |
| 28 |
85341-85Z10-000 |
Guide, headrest |
| 29 |
85840-85Z00-000 |
Guide, headrest |
| 30 |
86401-85Z20-000 |
Headrestraint assy, ctr |
| 30 |
86401-85Z70-000 |
Headrestraint assy, ctr |
| OEM |
Part name |
Category |
| 85108-85Z00-000 |
Trim assy, rr back lh |
Rear seat (05 MODEL) |
| 85308-85Z00-000 |
Trim assy, rr seat cush |
Rear seat (05 MODEL) |
| 85341-85Z10-000 |
Guide, headrest |
Rear seat (05 MODEL) |
| 85840-85Z00-000 |
Guide, headrest |
Rear seat (05 MODEL) |
| 86401-85Z10-000 |
Headrestraint assy, rr |
Rear seat (05 MODEL) |
| 86401-85Z20-000 |
Headrestraint assy, ctr |
Rear seat (05 MODEL) |
| 86401-85Z50-000 |
Headrestraint assy, rr |
Rear seat (05 MODEL) |
| 86401-85Z60-000 |
Headrestraint assy, rr |
Rear seat (05 MODEL) |
| 86401-85Z70-000 |
Headrestraint assy, ctr |
Rear seat (05 MODEL) |
| 86631-85Z00-000 |
Bolt |
Rear seat (05 MODEL) |
| 87101-85Z10-000 |
Seat assy, rr cush |
Rear seat (05 MODEL) |
| 87101-85Z20-000 |
Seat assy, rr cush |
Rear seat (05 MODEL) |
| 87101-85Z30-000 |
Seat assy, rr cush |
Rear seat (05 MODEL) |
| 87107-85Z00-000 |
Trim assy, rr seat cush |
Rear seat (05 MODEL) |
| 87107-85Z10-000 |
Trim assy, rr seat cush |
Rear seat (05 MODEL) |
| 87107-85Z20-000 |
Trim assy, rr seat cush |
Rear seat (05 MODEL) |
| 87110-85Z00-000 |
Pad, rr seat cush |
Rear seat (05 MODEL) |
| 87211-85Z00-000 |
Knob, lock |
Rear seat (05 MODEL) |
| 87301-85Z01-000 |
Seat assy, rr back rh |
Rear seat (05 MODEL) |
| 87301-85Z10-000 |
Seat assy, rr back rh |
Rear seat (05 MODEL) |
| 87301-85Z21-000 |
Seat assy, rr back rh |
Rear seat (05 MODEL) |
| 87301-85Z31-000 |
Seat assy, rr back rh |
Rear seat (05 MODEL) |
| 87301-85Z41-000 |
Seat assy, rr back rh |
Rear seat (05 MODEL) |
| 87302-85Z01-000 |
Seat assy, rr back lh |
Rear seat (05 MODEL) |
| 87302-85Z11-000 |
Seat assy, rr back lh |
Rear seat (05 MODEL) |
| 87302-85Z21-000 |
Seat assy, rr back lh |
Rear seat (05 MODEL) |
| 87302-85Z50-000 |
Seat a-rr back |
Rear seat (05 MODEL) |
| 87302-85Z60-000 |
Seat a-rr back |
Rear seat (05 MODEL) |
| 87305-85Z00-000 |
Pad assy, rr back rh |
Rear seat (05 MODEL) |
| 87305-85Z10-000 |
Pad assy, rr back rh |
Rear seat (05 MODEL) |
| 87305-85Z20-000 |
Pad assy, rr back rh |
Rear seat (05 MODEL) |
| 87306-85Z00-000 |
Pad assy, rr back lh |
Rear seat (05 MODEL) |
| 87310-85Z00-000 |
Frame assy, rr back rh |
Rear seat (05 MODEL) |
| 87310-85Z10-000 |
Frame assy, rr back rh |
Rear seat (05 MODEL) |
| 87311-85Z00-000 |
Screw |
Rear seat (05 MODEL) |
| 87380-85Z01-000 |
Trim assy, rr back rh |
Rear seat (05 MODEL) |
| 87380-85Z10-000 |
Trim assy, rr back rh |
Rear seat (05 MODEL) |
| 87380-85Z21-000 |
Trim assy, rr back rh |
Rear seat (05 MODEL) |
| 87380-85Z31-000 |
Trim assy, rr back rh |
Rear seat (05 MODEL) |
| 87380-85Z41-000 |
Trim assy, rr back rh |
Rear seat (05 MODEL) |
| 87460-86Z00-000 |
Hook |
Rear seat (05 MODEL) |
| 87481-85Z00-000 |
Latch assy, rr back lh |
Rear seat (05 MODEL) |
| 87482-85Z00-000 |
Latch assy, rr back rh |
Rear seat (05 MODEL) |
| 87485-85Z00-000 |
Screw |
Rear seat (05 MODEL) |
| 87501-85Z00-000 |
Armrest assy, rr back |
Rear seat (05 MODEL) |
| 87501-85Z10-000 |
Armrest assy, rr back |
Rear seat (05 MODEL) |
| 87511-85Z00-000 |
Nut |
Rear seat (05 MODEL) |
| 87571-85Z00-000 |
Cover, bracket armrest |
Rear seat (05 MODEL) |
| 87810-85Z00-000 |
Frame assy, rr back lh |
Rear seat (05 MODEL) |
| 87820-85Z00-000 |
Pin |
Rear seat (05 MODEL) |
| 87880-85Z01-000 |
Trim assy, rr back lh |
Rear seat (05 MODEL) |
| 87880-85Z11-000 |
Trim assy, rr back lh |
Rear seat (05 MODEL) |
| 87880-85Z21-000 |
Trim assy, rr back lh |
Rear seat (05 MODEL) |
| 87950-85Z00-000 |
Hinge assy, folding |
Rear seat (05 MODEL) |
| 87951-85Z00-000 |
Bolt |
Rear seat (05 MODEL) |
