Search › Model › RQ420
RQ420

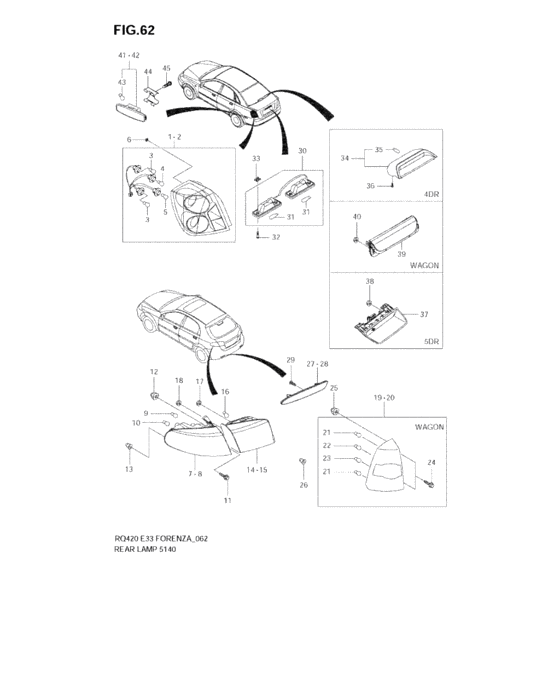

Rear lamp (REAR LAMP) 38
| # | OEM | Part name |
|---|---|---|
| 1 | 35603-85Z00-000 | Lamp assy, rr comb rh |
| 2 | 35604-85Z00-000 | Lamp assy, rr comb lh |
| 3 | 35654-86Z00-000 | Bulb - 12v,27/8w |
| 4 | 35654-85Z00-000 | Bulb |
| 5 | 35654-86Z10-000 | Bulb - 12v,27w |
| 6 | 33922-85Z00-000 | Nut |
| 7 | 35603-85Z20-000 | Lamp assy, rr comb rh |
| 8 | 35604-85Z20-000 | Lamp assy, rr comb lh |
| 11 | 35665-84Z01-000 | Screw |
| 12 | 39242-86Z00-000 | Nut |
| 13 | 35667-84Z00-000 | Grommet |
| 14 | 36250-85Z00-000 | Lamp assy, tail gate rh |
| 15 | 36270-85Z00-000 | Lamp assy, tail gate lh |
| 17 | 35667-86Z00-000 | Nut |
| 18 | 36263-85Z00-000 | Nut |
| 19 | 35603-85Z10-000 | Lamp assy, rr comb rh |
| 20 | 35604-85Z10-000 | Lamp assy, rr comb lh |
| 27 | 35950-85Z10-000 | Reflector assy, rr rh |
| 27 | 35950-85Z00-000 | Reflector assy, rr rh |
| 28 | 35970-85Z10-000 | Reflector assy, rr lh |
| 28 | 35970-85Z00-000 | Reflector assy, rr lh |
| 29 | 36425-85Z00-000 | Screw |
| 30 | 35910-85Z00-000 | Lamp assy, license |
| 31 | 36555-86Z00-000 | Bulb - 12v,5w |
| 32 | 35925-85Z00-000 | Screw |
| 33 | 35924-85Z00-000 | Nut |
| 34 | 35810-85Z30-000 | Lamp assy, high mt stop |
| 36 | 35825-85Z00-000 | Screw |
| 37 | 35810-85Z20-000 | Lamp assy, high mount stop |
| 38 | 83783-86Z00-000 | Nut |
| 39 | 35810-85Z10-000 | Lamp assy, high mount stop |
| 41 | 36530-85Z00-000 | Lamp assy, rr side rh |
| 41 | 36530-85Z20-000 | Lamp assy, rr side rh |
| 41 | 36530-85Z10-000 | Lamp assy, rr side rh |
| 42 | 36540-85Z00-000 | Lamp assy, rr side lh |
| 42 | 36540-85Z20-000 | Lamp assy, rr side lh |
| 42 | 36540-85Z10-000 | Lamp assy, rr side lh |
| 44 | 36815-85Z01-000 | Bracket, side marker |
| OEM | Part name | Category |
|---|---|---|
| 33922-85Z00-000 | Nut | Rear lamp (REAR LAMP) |
| 35603-85Z00-000 | Lamp assy, rr comb rh | Rear lamp (REAR LAMP) |
| 35603-85Z10-000 | Lamp assy, rr comb rh | Rear lamp (REAR LAMP) |
| 35603-85Z20-000 | Lamp assy, rr comb rh | Rear lamp (REAR LAMP) |
| 35604-85Z00-000 | Lamp assy, rr comb lh | Rear lamp (REAR LAMP) |
| 35604-85Z10-000 | Lamp assy, rr comb lh | Rear lamp (REAR LAMP) |
| 35604-85Z20-000 | Lamp assy, rr comb lh | Rear lamp (REAR LAMP) |
| 35654-85Z00-000 | Bulb | Rear lamp (REAR LAMP) |
| 35654-86Z00-000 | Bulb - 12v,27/8w | Rear lamp (REAR LAMP) |
| 35654-86Z10-000 | Bulb - 12v,27w | Rear lamp (REAR LAMP) |
| 35665-84Z01-000 | Screw | Rear lamp (REAR LAMP) |
| 35667-84Z00-000 | Grommet | Rear lamp (REAR LAMP) |
| 35667-86Z00-000 | Nut | Rear lamp (REAR LAMP) |
| 35810-85Z10-000 | Lamp assy, high mount stop | Rear lamp (REAR LAMP) |
| 35810-85Z20-000 | Lamp assy, high mount stop | Rear lamp (REAR LAMP) |
| 35810-85Z30-000 | Lamp assy, high mt stop | Rear lamp (REAR LAMP) |
| 35825-85Z00-000 | Screw | Rear lamp (REAR LAMP) |
| 35910-85Z00-000 | Lamp assy, license | Rear lamp (REAR LAMP) |
| 35924-85Z00-000 | Nut | Rear lamp (REAR LAMP) |
| 35925-85Z00-000 | Screw | Rear lamp (REAR LAMP) |
| 35950-85Z00-000 | Reflector assy, rr rh | Rear lamp (REAR LAMP) |
| 35950-85Z10-000 | Reflector assy, rr rh | Rear lamp (REAR LAMP) |
| 35970-85Z00-000 | Reflector assy, rr lh | Rear lamp (REAR LAMP) |
| 35970-85Z10-000 | Reflector assy, rr lh | Rear lamp (REAR LAMP) |
| 36250-85Z00-000 | Lamp assy, tail gate rh | Rear lamp (REAR LAMP) |
| 36263-85Z00-000 | Nut | Rear lamp (REAR LAMP) |
| 36270-85Z00-000 | Lamp assy, tail gate lh | Rear lamp (REAR LAMP) |
| 36425-85Z00-000 | Screw | Rear lamp (REAR LAMP) |
| 36530-85Z00-000 | Lamp assy, rr side rh | Rear lamp (REAR LAMP) |
| 36530-85Z10-000 | Lamp assy, rr side rh | Rear lamp (REAR LAMP) |
| 36530-85Z20-000 | Lamp assy, rr side rh | Rear lamp (REAR LAMP) |
| 36540-85Z00-000 | Lamp assy, rr side lh | Rear lamp (REAR LAMP) |
| 36540-85Z10-000 | Lamp assy, rr side lh | Rear lamp (REAR LAMP) |
| 36540-85Z20-000 | Lamp assy, rr side lh | Rear lamp (REAR LAMP) |
| 36555-86Z00-000 | Bulb - 12v,5w | Rear lamp (REAR LAMP) |
| 36815-85Z01-000 | Bracket, side marker | Rear lamp (REAR LAMP) |
| 39242-86Z00-000 | Nut | Rear lamp (REAR LAMP) |
| 83783-86Z00-000 | Nut | Rear lamp (REAR LAMP) |
