Search › Model › RQ420

RQ420

Suzuki RENO-FORENZA · 3,287 parts · 185 categories

3,287 items

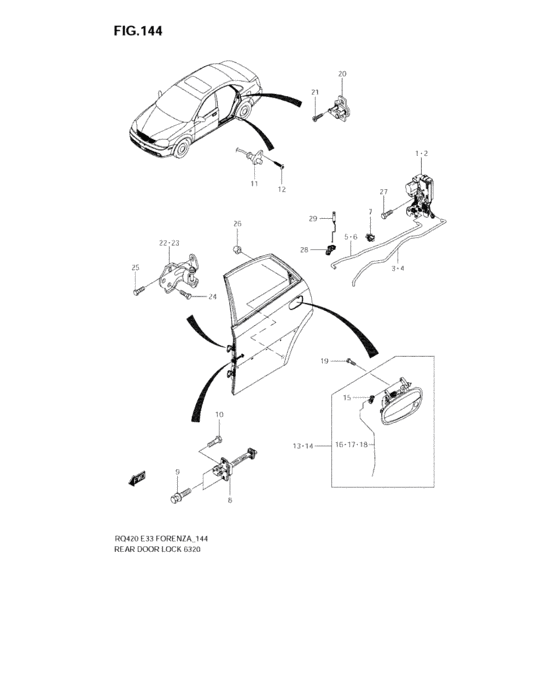

Rear door lock (REAR DOOR LOCK) 35

#	OEM	Part name
1	82301-85Z00-000	Latch assy, rr door rh
2	82302-85Z00-000	Latch assy, rr door lh
3	82321-85Z00-000	Rod, rr door handle rh
3	82312-85Z10-000	Rod, rr door handle rh
4	82322-85Z00-000	Rod, rr door handle lh
4	82322-85Z10-000	Rod, rr door handle lh
5	82311-85Z00-000	Rod, rr door lock rh
6	82312-85Z00-000	Rod, rr door lock lh
7	82216-85Z00-000	Clip
8	81820-85Z00-000	Stop, rr door open
9	81811-86Z00-000	Bolt
10	81812-86Z00-000	Bolt
11	37670-84Z00-000	Switch door
12	83973-84Z00-000	Screw
12	84912-86Z00-000	Screw
13	82830-85Z00-000	Handle, rr door out rh
13	82830-85Z10-000	Handle, rr door out rh
14	82840-85Z00-000	Handle, rr door out lh
14	82840-85Z10-000	Handle, rr door out lh
15	82811-86Z00-000	Clamp
15	82811-85Z01-000	Clamp
16	82831-85Z00-000	Rod, outside handle rh
17	82841-85Z00-000	Rod, outside handle lh
18	82831-85Z10-000	Rod, outside handle
19	82814-85Z00-000	Bolt
20	82610-86Z00-000	Striker
21	82611-86Z00-000	Bolt
22	69440-85Z00-000	Hinge, door no.2
23	69430-85Z00-000	Hinge, door no.1
24	45841-85Z00-000	Bolt
25	57419-85Z00-000	Bolt
26	82711-85Z00-000	Cushion
27	82211-86Z00-000	Screw
28	82313-85Z00-000	Clip, rod
29	82983-85Z00-000	Knob, rr door locking

OEM	Part name	Category
37670-84Z00-000	Switch door	Rear door lock (REAR DOOR LOCK)
45841-85Z00-000	Bolt	Rear door lock (REAR DOOR LOCK)
57419-85Z00-000	Bolt	Rear door lock (REAR DOOR LOCK)
69430-85Z00-000	Hinge, door no.1	Rear door lock (REAR DOOR LOCK)
69440-85Z00-000	Hinge, door no.2	Rear door lock (REAR DOOR LOCK)
81811-86Z00-000	Bolt	Rear door lock (REAR DOOR LOCK)
81812-86Z00-000	Bolt	Rear door lock (REAR DOOR LOCK)
81820-85Z00-000	Stop, rr door open	Rear door lock (REAR DOOR LOCK)
82211-86Z00-000	Screw	Rear door lock (REAR DOOR LOCK)
82216-85Z00-000	Clip	Rear door lock (REAR DOOR LOCK)
82301-85Z00-000	Latch assy, rr door rh	Rear door lock (REAR DOOR LOCK)
82302-85Z00-000	Latch assy, rr door lh	Rear door lock (REAR DOOR LOCK)
82311-85Z00-000	Rod, rr door lock rh	Rear door lock (REAR DOOR LOCK)
82312-85Z00-000	Rod, rr door lock lh	Rear door lock (REAR DOOR LOCK)
82312-85Z10-000	Rod, rr door handle rh	Rear door lock (REAR DOOR LOCK)
82313-85Z00-000	Clip, rod	Rear door lock (REAR DOOR LOCK)
82321-85Z00-000	Rod, rr door handle rh	Rear door lock (REAR DOOR LOCK)
82322-85Z00-000	Rod, rr door handle lh	Rear door lock (REAR DOOR LOCK)
82322-85Z10-000	Rod, rr door handle lh	Rear door lock (REAR DOOR LOCK)
82610-86Z00-000	Striker	Rear door lock (REAR DOOR LOCK)
82611-86Z00-000	Bolt	Rear door lock (REAR DOOR LOCK)
82711-85Z00-000	Cushion	Rear door lock (REAR DOOR LOCK)
82811-85Z01-000	Clamp	Rear door lock (REAR DOOR LOCK)
82811-86Z00-000	Clamp	Rear door lock (REAR DOOR LOCK)
82814-85Z00-000	Bolt	Rear door lock (REAR DOOR LOCK)
82830-85Z00-000	Handle, rr door out rh	Rear door lock (REAR DOOR LOCK)
82830-85Z10-000	Handle, rr door out rh	Rear door lock (REAR DOOR LOCK)
82831-85Z00-000	Rod, outside handle rh	Rear door lock (REAR DOOR LOCK)
82831-85Z10-000	Rod, outside handle	Rear door lock (REAR DOOR LOCK)
82840-85Z00-000	Handle, rr door out lh	Rear door lock (REAR DOOR LOCK)
82840-85Z10-000	Handle, rr door out lh	Rear door lock (REAR DOOR LOCK)
82841-85Z00-000	Rod, outside handle lh	Rear door lock (REAR DOOR LOCK)
82983-85Z00-000	Knob, rr door locking	Rear door lock (REAR DOOR LOCK)
83973-84Z00-000	Screw	Rear door lock (REAR DOOR LOCK)
84912-86Z00-000	Screw	Rear door lock (REAR DOOR LOCK)

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 185
Collected: 2026-08-01
