RQ420

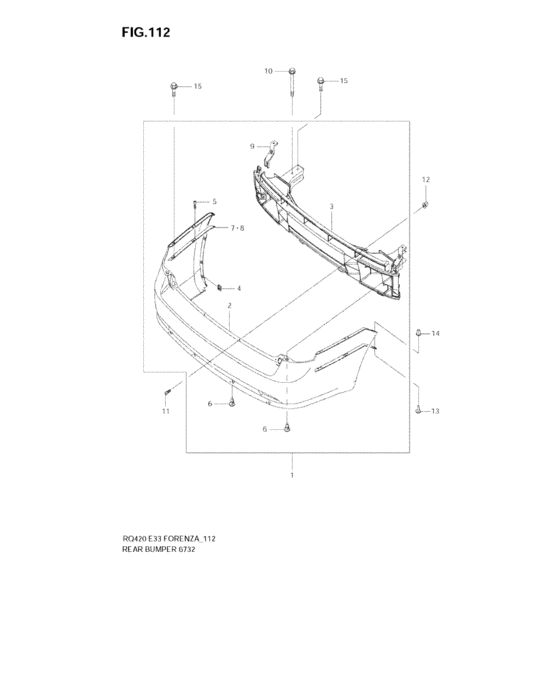

Rear bumper (WAGON) 16
| # | OEM | Part name |
|---|---|---|
| 1 | 71800-85Z20-000 | Bumper, rear |
| 2 | 71811-85Z20-000 | Bumper, rear |
| 3 | 65550-85Z20-000 | Member, rr bumper impact |
| 4 | 71719-85Z00-000 | Nut |
| 5 | 71753-86Z00-000 | Screw |
| 6 | 77212-86Z00-000 | Clip |
| 7 | 71877-85Z20-000 | Reinf, rr bumper side rh |
| 8 | 71878-85Z20-000 | Reinf, rr bumper side lh |
| 9 | 71879-85Z00-000 | Support, rr bumper upr |
| 10 | 65559-85Z00-000 | Bolt |
| 11 | 71831-85Z00-000 | Screw |
| 12 | 39242-86Z00-000 | Nut |
| 13 | 72319-86Z00-000 | Screw |
| 13 | 72319-86Z01-000 | Screw |
| 14 | 72318-86Z00-000 | Nut |
| 15 | 71717-85Z00-000 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 39242-86Z00-000 | Nut | Rear bumper (WAGON) |
| 65550-85Z20-000 | Member, rr bumper impact | Rear bumper (WAGON) |
| 65559-85Z00-000 | Bolt | Rear bumper (WAGON) |
| 71717-85Z00-000 | Bolt | Rear bumper (WAGON) |
| 71719-85Z00-000 | Nut | Rear bumper (WAGON) |
| 71753-86Z00-000 | Screw | Rear bumper (WAGON) |
| 71800-85Z20-000 | Bumper, rear | Rear bumper (WAGON) |
| 71811-85Z20-000 | Bumper, rear | Rear bumper (WAGON) |
| 71831-85Z00-000 | Screw | Rear bumper (WAGON) |
| 71877-85Z20-000 | Reinf, rr bumper side rh | Rear bumper (WAGON) |
| 71878-85Z20-000 | Reinf, rr bumper side lh | Rear bumper (WAGON) |
| 71879-85Z00-000 | Support, rr bumper upr | Rear bumper (WAGON) |
| 72318-86Z00-000 | Nut | Rear bumper (WAGON) |
| 72319-86Z00-000 | Screw | Rear bumper (WAGON) |
| 72319-86Z01-000 | Screw | Rear bumper (WAGON) |
| 77212-86Z00-000 | Clip | Rear bumper (WAGON) |
