RQ420

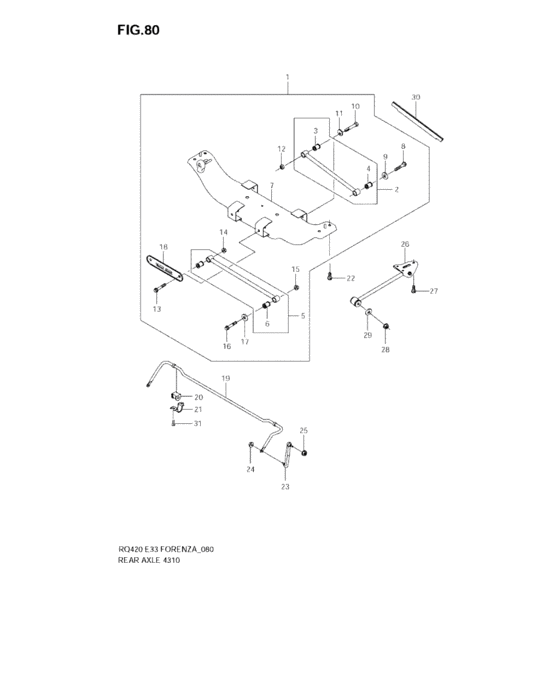

Rear axle (REAR AXLE) 30
| # | OEM | Part name |
|---|---|---|
| 1 | 46500-85Z00-000 | Axle assy, rear |
| 2 | 46300-85Z00-000 | Rod assy, rr control fr |
| 3 | 46321-85Z00-000 | Bushing |
| 4 | 46321-85Z10-000 | Bushing |
| 5 | 46300-85Z10-000 | Rod assy, rr control rr |
| 6 | 46311-85Z20-000 | Bushing |
| 7 | 46710-85Z00-000 | Axle, rear |
| 8 | 46312-85Z01-000 | Bolt |
| 9 | 46313-85Z00-000 | Washer |
| 10 | 46312-85Z10-000 | Bolt |
| 11 | 46313-86Z00-000 | Washer |
| 12 | 46314-85Z10-000 | Nut |
| 13 | 11749-84Z00-000 | Bolt |
| 14 | 41612-86Z00-000 | Nut |
| 15 | 46314-85Z00-000 | Nut |
| 16 | 46312-85Z20-000 | Bolt |
| 18 | 46720-85Z00-000 | Reinforcement |
| 19 | 46611-85Z00-000 | Bar, rr stabilizer |
| 20 | 46621-85Z01-000 | Bush, stabilizer bar |
| 20 | 46621-85Z02-000 | Bush-stabilizer |
| 21 | 46642-85Z00-000 | Bracket, rr stabilizer bar |
| 22 | 46723-85Z00-000 | Bolt |
| 23 | 46650-85Z00-000 | Joint, rr stabilizer |
| 24 | 46621-86Z00-000 | Nut |
| 26 | 46201-85Z00-000 | Rod assy, rear trailing |
| 27 | 46211-85Z00-000 | Bolt |
| 28 | 41725-86Z00-000 | Nut |
| 29 | 46213-85Z00-000 | Washer |
| 30 | 46811-85Z00-000 | Cover, rr abs harness |
| 31 | 11339-86Z00-000 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 11339-86Z00-000 | Bolt | Rear axle (REAR AXLE) |
| 11749-84Z00-000 | Bolt | Rear axle (REAR AXLE) |
| 41612-86Z00-000 | Nut | Rear axle (REAR AXLE) |
| 41725-86Z00-000 | Nut | Rear axle (REAR AXLE) |
| 46201-85Z00-000 | Rod assy, rear trailing | Rear axle (REAR AXLE) |
| 46211-85Z00-000 | Bolt | Rear axle (REAR AXLE) |
| 46213-85Z00-000 | Washer | Rear axle (REAR AXLE) |
| 46300-85Z00-000 | Rod assy, rr control fr | Rear axle (REAR AXLE) |
| 46300-85Z10-000 | Rod assy, rr control rr | Rear axle (REAR AXLE) |
| 46311-85Z20-000 | Bushing | Rear axle (REAR AXLE) |
| 46312-85Z01-000 | Bolt | Rear axle (REAR AXLE) |
| 46312-85Z10-000 | Bolt | Rear axle (REAR AXLE) |
| 46312-85Z20-000 | Bolt | Rear axle (REAR AXLE) |
| 46313-85Z00-000 | Washer | Rear axle (REAR AXLE) |
| 46313-86Z00-000 | Washer | Rear axle (REAR AXLE) |
| 46314-85Z00-000 | Nut | Rear axle (REAR AXLE) |
| 46314-85Z10-000 | Nut | Rear axle (REAR AXLE) |
| 46321-85Z00-000 | Bushing | Rear axle (REAR AXLE) |
| 46321-85Z10-000 | Bushing | Rear axle (REAR AXLE) |
| 46500-85Z00-000 | Axle assy, rear | Rear axle (REAR AXLE) |
| 46611-85Z00-000 | Bar, rr stabilizer | Rear axle (REAR AXLE) |
| 46621-85Z01-000 | Bush, stabilizer bar | Rear axle (REAR AXLE) |
| 46621-85Z02-000 | Bush-stabilizer | Rear axle (REAR AXLE) |
| 46621-86Z00-000 | Nut | Rear axle (REAR AXLE) |
| 46642-85Z00-000 | Bracket, rr stabilizer bar | Rear axle (REAR AXLE) |
| 46650-85Z00-000 | Joint, rr stabilizer | Rear axle (REAR AXLE) |
| 46710-85Z00-000 | Axle, rear | Rear axle (REAR AXLE) |
| 46720-85Z00-000 | Reinforcement | Rear axle (REAR AXLE) |
| 46723-85Z00-000 | Bolt | Rear axle (REAR AXLE) |
| 46811-85Z00-000 | Cover, rr abs harness | Rear axle (REAR AXLE) |
