Search › Model › RQ420
RQ420

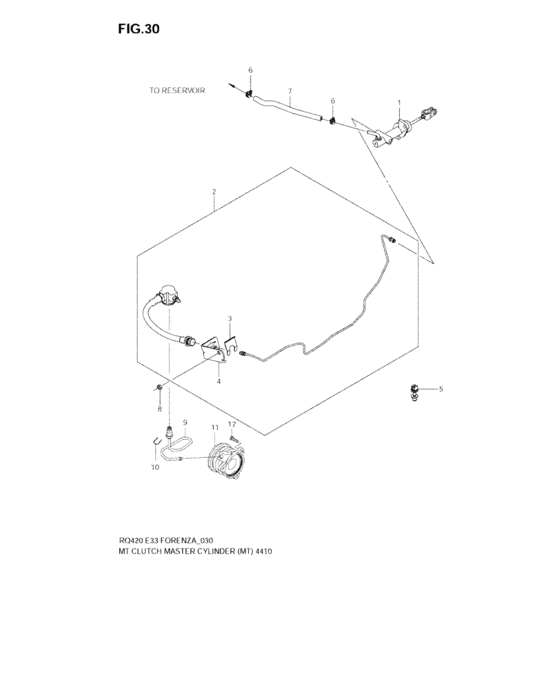

Mt clutch master cylinder (MT) 14
| # | OEM | Part name |
|---|---|---|
| 1 | 23810-85Z00-000 | Cylinder assy, clutch master |
| 1 | 23810-85Z10-000 | Cylinder assy, clutch master |
| 1 | 23810-85Z20-000 | Cylinder assy, clutch master |
| 2 | 23831-85Z00-000 | Pipe assy, clutch master cyl |
| 3 | 23809-85Z00-000 | Clip |
| 4 | 23871-85Z00-000 | Clamp |
| 5 | 51752-86Z00-000 | Clip |
| 6 | 15737-86Z00-000 | Clip |
| 7 | 23850-85Z00-000 | Hose assy, reservoir tank |
| 8 | 72516-86Z00-000 | Nut |
| 9 | 29490-85Z00-000 | Pipe assy, concentric slave |
| 10 | 23808-85Z00-000 | Clip |
| 11 | 29480-85Z00-000 | Cylinder assy, concentric,slave |
| 12 | 33227-84Z02-000 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 15737-86Z00-000 | Clip | Mt clutch master cylinder (MT) |
| 23808-85Z00-000 | Clip | Mt clutch master cylinder (MT) |
| 23809-85Z00-000 | Clip | Mt clutch master cylinder (MT) |
| 23810-85Z00-000 | Cylinder assy, clutch master | Mt clutch master cylinder (MT) |
| 23810-85Z10-000 | Cylinder assy, clutch master | Mt clutch master cylinder (MT) |
| 23810-85Z20-000 | Cylinder assy, clutch master | Mt clutch master cylinder (MT) |
| 23831-85Z00-000 | Pipe assy, clutch master cyl | Mt clutch master cylinder (MT) |
| 23850-85Z00-000 | Hose assy, reservoir tank | Mt clutch master cylinder (MT) |
| 23871-85Z00-000 | Clamp | Mt clutch master cylinder (MT) |
| 29480-85Z00-000 | Cylinder assy, concentric,slave | Mt clutch master cylinder (MT) |
| 29490-85Z00-000 | Pipe assy, concentric slave | Mt clutch master cylinder (MT) |
| 33227-84Z02-000 | Bolt | Mt clutch master cylinder (MT) |
| 51752-86Z00-000 | Clip | Mt clutch master cylinder (MT) |
| 72516-86Z00-000 | Nut | Mt clutch master cylinder (MT) |
