Search › Model › RQ420
RQ420

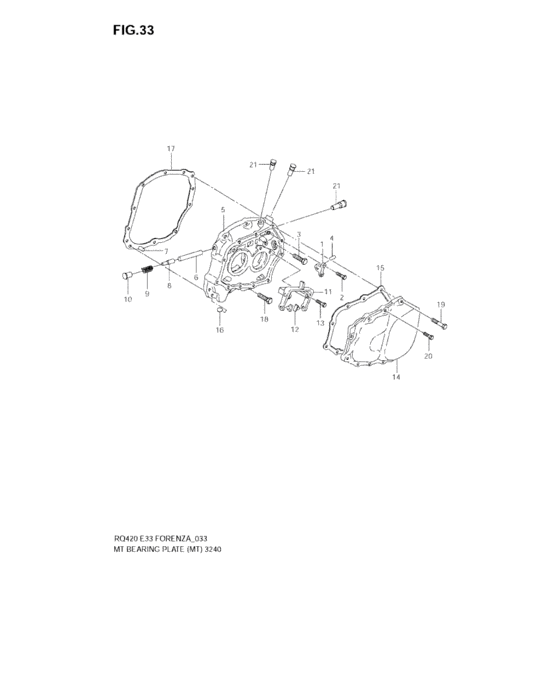

Mt bearing plate (MT) 22
| # | OEM | Part name |
|---|---|---|
| 1 | 25521-85Z00-000 | Bridge, strain bolt |
| 2 | 25523-85Z00-000 | Bolt - 6x16 |
| 3 | 25524-85Z00-000 | Bolt - 6x24 |
| 4 | 25525-85Z00-000 | Bolt |
| 5 | 24726-85Z00-000 | Plate, bearing |
| 6 | 25526-85Z00-000 | Bolt |
| 7 | 25527-85Z00-000 | Pin, dowel |
| 8 | 25528-85Z00-000 | Pin |
| 9 | 25534-85Z00-000 | Spring |
| 9 | 25534-84Z00-000 | Spring |
| 10 | 25535-85Z00-000 | Plug |
| 11 | 25251-85Z00-000 | Fork assy, sliding |
| 12 | 25252-85Z00-000 | Shoe |
| 13 | 25253-85Z00-000 | Screw - 8x20 |
| 14 | 24730-85Z00-000 | Cover |
| 15 | 24729-85Z00-000 | Gasket, cover |
| 16 | 24792-85Z00-000 | Magnet |
| 17 | 24719-85Z00-000 | Gasket, bearing plate |
| 18 | 24718-85Z00-000 | Bolt - 8x28 |
| 19 | 24728-85Z00-000 | Screw |
| 20 | 24727-85Z00-000 | Bolt - 7x15 |
| 21 | 35529-85Z10-000 | Sleeve, detent |
| OEM | Part name | Category |
|---|---|---|
| 24718-85Z00-000 | Bolt - 8x28 | Mt bearing plate (MT) |
| 24719-85Z00-000 | Gasket, bearing plate | Mt bearing plate (MT) |
| 24726-85Z00-000 | Plate, bearing | Mt bearing plate (MT) |
| 24727-85Z00-000 | Bolt - 7x15 | Mt bearing plate (MT) |
| 24728-85Z00-000 | Screw | Mt bearing plate (MT) |
| 24729-85Z00-000 | Gasket, cover | Mt bearing plate (MT) |
| 24730-85Z00-000 | Cover | Mt bearing plate (MT) |
| 24792-85Z00-000 | Magnet | Mt bearing plate (MT) |
| 25251-85Z00-000 | Fork assy, sliding | Mt bearing plate (MT) |
| 25252-85Z00-000 | Shoe | Mt bearing plate (MT) |
| 25253-85Z00-000 | Screw - 8x20 | Mt bearing plate (MT) |
| 25521-85Z00-000 | Bridge, strain bolt | Mt bearing plate (MT) |
| 25523-85Z00-000 | Bolt - 6x16 | Mt bearing plate (MT) |
| 25524-85Z00-000 | Bolt - 6x24 | Mt bearing plate (MT) |
| 25525-85Z00-000 | Bolt | Mt bearing plate (MT) |
| 25526-85Z00-000 | Bolt | Mt bearing plate (MT) |
| 25527-85Z00-000 | Pin, dowel | Mt bearing plate (MT) |
| 25528-85Z00-000 | Pin | Mt bearing plate (MT) |
| 25534-84Z00-000 | Spring | Mt bearing plate (MT) |
| 25534-85Z00-000 | Spring | Mt bearing plate (MT) |
| 25535-85Z00-000 | Plug | Mt bearing plate (MT) |
| 35529-85Z10-000 | Sleeve, detent | Mt bearing plate (MT) |
