Search › Model › RQ420
RQ420

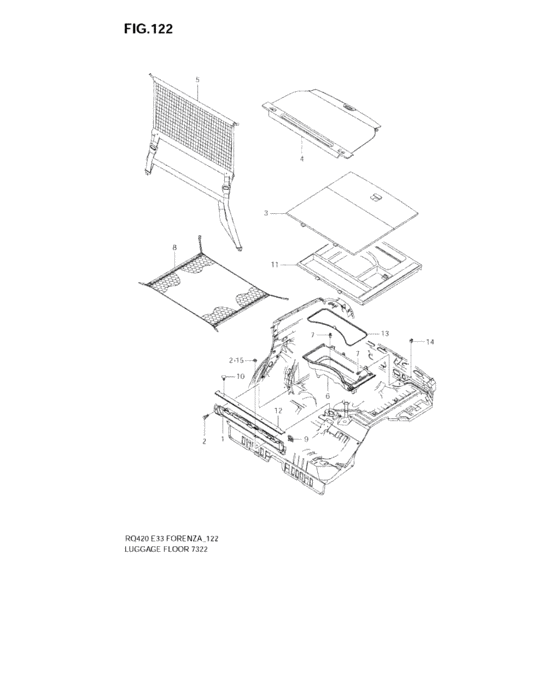

Luggage floor (WAGON) 16
| # | OEM | Part name |
|---|---|---|
| 1 | 75420-85Z00-000 | Support, luggage floor fr |
| 1 | 75420-85Z10-000 | Support, luggage floor fr |
| 2 | 13769-86Z00-000 | Screw - M6 |
| 3 | 75440-85Z00-000 | Cover, luggage floor |
| 4 | 87410-85Z21-000 | Shelf |
| 5 | 76490-85Z00-000 | Net |
| 6 | 75461-85Z00-000 | Box, luggage floor |
| 7 | 75469-85Z00-000 | Clip |
| 8 | 75490-85Z10-000 | Net |
| 9 | 75429-85Z00-000 | Restraint |
| 10 | 83779-84Z00-000 | Clip |
| 11 | 75463-85Z10-000 | Box, luggage floor |
| 12 | 75499-85Z10-000 | Cover, plate |
| 13 | 75468-85Z00-000 | Cover, box |
| 14 | 75467-85Z01-000 | Clamp |
| 15 | 75421-85Z00-000 | Nut |
| OEM | Part name | Category |
|---|---|---|
| 13769-86Z00-000 | Screw - M6 | Luggage floor (WAGON) |
| 75420-85Z00-000 | Support, luggage floor fr | Luggage floor (WAGON) |
| 75420-85Z10-000 | Support, luggage floor fr | Luggage floor (WAGON) |
| 75421-85Z00-000 | Nut | Luggage floor (WAGON) |
| 75429-85Z00-000 | Restraint | Luggage floor (WAGON) |
| 75440-85Z00-000 | Cover, luggage floor | Luggage floor (WAGON) |
| 75461-85Z00-000 | Box, luggage floor | Luggage floor (WAGON) |
| 75463-85Z10-000 | Box, luggage floor | Luggage floor (WAGON) |
| 75467-85Z01-000 | Clamp | Luggage floor (WAGON) |
| 75468-85Z00-000 | Cover, box | Luggage floor (WAGON) |
| 75469-85Z00-000 | Clip | Luggage floor (WAGON) |
| 75490-85Z10-000 | Net | Luggage floor (WAGON) |
| 75499-85Z10-000 | Cover, plate | Luggage floor (WAGON) |
| 76490-85Z00-000 | Net | Luggage floor (WAGON) |
| 83779-84Z00-000 | Clip | Luggage floor (WAGON) |
| 87410-85Z21-000 | Shelf | Luggage floor (WAGON) |
