Search › Model › RQ420
RQ420

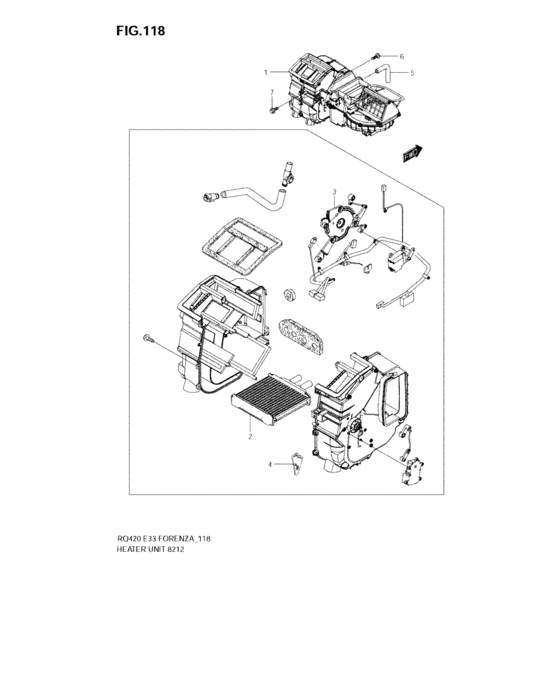

Heater unit (HEATER UNIT) 9
| # | OEM | Part name |
|---|---|---|
| 1 | 74100-85Z00-000 | Heater unit |
| 1 | 74100-85Z01-000 | Heater unit |
| 1 | 74100-85Z10-000 | Heater unit |
| 2 | 74120-85Z00-000 | Core, heater |
| 3 | 74185-85Z00-000 | Link, main |
| 4 | 74191-85Z00-000 | Link, temp |
| 5 | 95480-86Z00-000 | Hose, drain |
| 6 | 74107-86Z00-000 | Screw |
| 7 | 37461-86Z00-000 | Screw, tie bar |
| OEM | Part name | Category |
|---|---|---|
| 37461-86Z00-000 | Screw, tie bar | Heater unit (HEATER UNIT) |
| 74100-85Z00-000 | Heater unit | Heater unit (HEATER UNIT) |
| 74100-85Z01-000 | Heater unit | Heater unit (HEATER UNIT) |
| 74100-85Z10-000 | Heater unit | Heater unit (HEATER UNIT) |
| 74107-86Z00-000 | Screw | Heater unit (HEATER UNIT) |
| 74120-85Z00-000 | Core, heater | Heater unit (HEATER UNIT) |
| 74185-85Z00-000 | Link, main | Heater unit (HEATER UNIT) |
| 74191-85Z00-000 | Link, temp | Heater unit (HEATER UNIT) |
| 95480-86Z00-000 | Hose, drain | Heater unit (HEATER UNIT) |
