RQ420

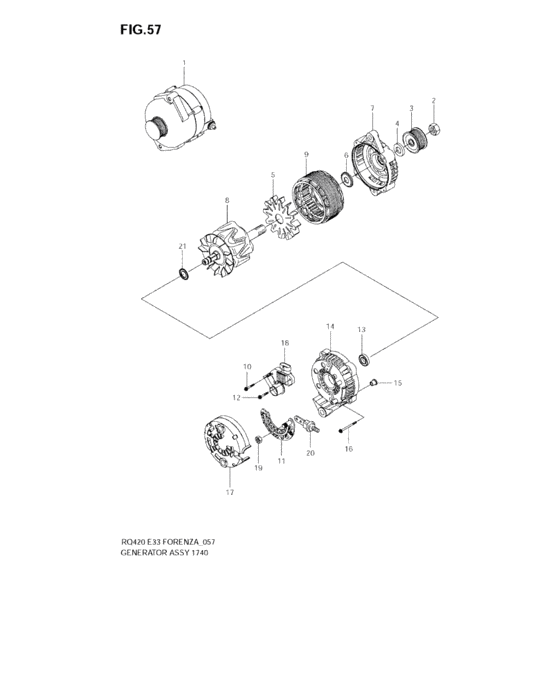

Generator (GENERATOR) 21
| # | OEM | Part name |
|---|---|---|
| 1 | 31400-85Z01-000 | Generator assy - 95a |
| 1 | 31400-85Z02-000 | Alternator a |
| 2 | 31411-86Z20-000 | Nut |
| 3 | 31711-86Z00-000 | Pulley |
| 4 | 31615-85Z00-000 | Collar |
| 5 | 31720-85Z00-000 | Fan |
| 6 | 31615-86Z00-000 | Collar |
| 7 | 31580-85Z00-000 | Frame assy, drive end |
| 8 | 31710-85Z00-000 | Rotor |
| 9 | 31570-85Z00-000 | Stator |
| 10 | 31412-86Z00-000 | Screw |
| 11 | 32621-85Z00-000 | Rectifier |
| 13 | 31612-86Z00-000 | Bearing |
| 14 | 31611-85Z00-000 | Frame, end rear |
| 15 | 31616-86Z00-000 | Bush |
| 16 | 31413-86Z00-000 | Bolt |
| 17 | 31614-85Z10-000 | Cover, end rear |
| 18 | 32500-86Z01-000 | Regulator & brush assy |
| 19 | 31622-86Z00-000 | Nut |
| 20 | 31415-85Z00-000 | Bolt |
| 21 | 31613-86Z00-000 | Shield |
| OEM | Part name | Category |
|---|---|---|
| 31400-85Z01-000 | Generator assy - 95a | Generator (GENERATOR) |
| 31400-85Z02-000 | Alternator a | Generator (GENERATOR) |
| 31411-86Z20-000 | Nut | Generator (GENERATOR) |
| 31412-86Z00-000 | Screw | Generator (GENERATOR) |
| 31413-86Z00-000 | Bolt | Generator (GENERATOR) |
| 31415-85Z00-000 | Bolt | Generator (GENERATOR) |
| 31570-85Z00-000 | Stator | Generator (GENERATOR) |
| 31580-85Z00-000 | Frame assy, drive end | Generator (GENERATOR) |
| 31611-85Z00-000 | Frame, end rear | Generator (GENERATOR) |
| 31612-86Z00-000 | Bearing | Generator (GENERATOR) |
| 31613-86Z00-000 | Shield | Generator (GENERATOR) |
| 31614-85Z10-000 | Cover, end rear | Generator (GENERATOR) |
| 31615-85Z00-000 | Collar | Generator (GENERATOR) |
| 31615-86Z00-000 | Collar | Generator (GENERATOR) |
| 31616-86Z00-000 | Bush | Generator (GENERATOR) |
| 31622-86Z00-000 | Nut | Generator (GENERATOR) |
| 31710-85Z00-000 | Rotor | Generator (GENERATOR) |
| 31711-86Z00-000 | Pulley | Generator (GENERATOR) |
| 31720-85Z00-000 | Fan | Generator (GENERATOR) |
| 32500-86Z01-000 | Regulator & brush assy | Generator (GENERATOR) |
| 32621-85Z00-000 | Rectifier | Generator (GENERATOR) |
