RQ420

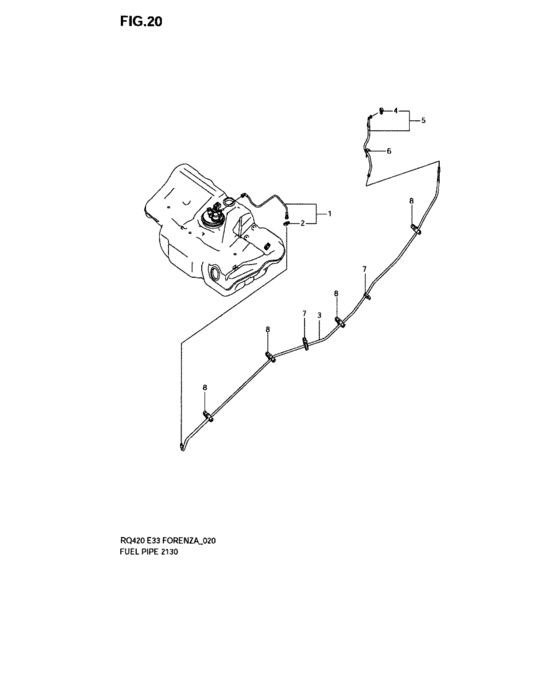

Fuel pipe (FUEL PIPE) 7
| # | OEM | Part name |
|---|---|---|
| 1 | 15812-85Z00-000 | Pipe, fuel - Pump to pipe |
| 2 | 15816-85Z00-000 | Reatainer |
| 3 | 15811-85Z11-000 | Pipe, fuel feed |
| 5 | 15815-85Z00-000 | Pipe, fuel - Eng side |
| 6 | 15881-85Z00-000 | Clip |
| 7 | 15881-85Z10-000 | Clip |
| 8 | 15881-84Z00-000 | Clip |
| OEM | Part name | Category |
|---|---|---|
| 15811-85Z11-000 | Pipe, fuel feed | Fuel pipe (FUEL PIPE) |
| 15812-85Z00-000 | Pipe, fuel - Pump to pipe | Fuel pipe (FUEL PIPE) |
| 15815-85Z00-000 | Pipe, fuel - Eng side | Fuel pipe (FUEL PIPE) |
| 15816-85Z00-000 | Reatainer | Fuel pipe (FUEL PIPE) |
| 15881-84Z00-000 | Clip | Fuel pipe (FUEL PIPE) |
| 15881-85Z00-000 | Clip | Fuel pipe (FUEL PIPE) |
| 15881-85Z10-000 | Clip | Fuel pipe (FUEL PIPE) |
