RQ420

Suzuki RENO-FORENZA · 3,287 parts · 185 categories

3,287 items

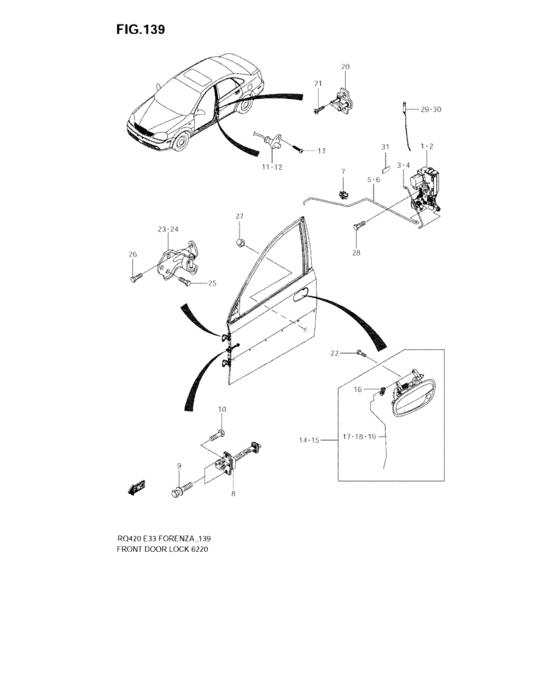

Front door lock (FRONT DOOR LOCK) 42

#	OEM	Part name
1	82201-85Z00-000	Latch assy, fr door rh
1	82201-85Z10-000	Latch assy, fr door rh
2	82202-85Z00-000	Latch assy, fr door lh
2	82202-84Z10-000	Latch assy, fr door lh
2	82202-85Z10-000	Latch assy, fr door lh
3	82212-85Z00-000	Rod, key cylinder rh
3	82212-85Z10-000	Rod, key cylinder rh
4	82213-85Z00-000	Rod, key cylinder lh
4	82213-85Z10-000	Rod, key cylinder lh
5	82221-85Z00-000	Rod, fr door handle rh
5	82221-85Z10-000	Rod, fr door handle rh
6	82222-85Z00-000	Rod, fr door handle lh
6	82222-85Z10-000	Rod, fr door handle rh
7	82216-85Z00-000	Clip
8	81810-85Z00-000	Stop, fr door open
9	81811-86Z00-000	Bolt
10	81812-86Z00-000	Bolt
11	37670-85Z10-000	Switch, door rh
12	37670-85Z00-000	Switch door
13	83973-84Z00-000	Screw
13	84912-86Z00-000	Screw
14	82810-85Z00-000	Handle, fr door out rh
14	82810-85Z10-000	Handle, fr door out rh
15	82820-85Z00-000	Handle, fr door out lh
15	82820-85Z10-000	Handle, fr door out lh
16	82811-86Z00-000	Clamp
16	82811-85Z01-000	Clamp
17	82812-85Z00-000	Rod, outside handle rh
18	82813-85Z00-000	Rod, outside handle lh
19	82812-85Z10-000	Rod, outside handle
20	82610-86Z00-000	Striker
21	82611-86Z00-000	Bolt
22	82814-85Z00-000	Bolt
23	69330-85Z00-000	Hinge, door no.2
24	69310-85Z00-000	Hinge, door no.1
25	45841-85Z00-000	Bolt
26	57419-85Z00-000	Bolt
27	82711-85Z00-000	Cushion
28	82211-86Z00-000	Screw
29	82981-85Z00-000	Knob, door locking rh
30	82982-85Z00-000	Knob, door locking lh
31	77591-85Z01-000	Pad

OEM	Part name	Category
37670-85Z00-000	Switch door	Front door lock (FRONT DOOR LOCK)
37670-85Z10-000	Switch, door rh	Front door lock (FRONT DOOR LOCK)
45841-85Z00-000	Bolt	Front door lock (FRONT DOOR LOCK)
57419-85Z00-000	Bolt	Front door lock (FRONT DOOR LOCK)
69310-85Z00-000	Hinge, door no.1	Front door lock (FRONT DOOR LOCK)
69330-85Z00-000	Hinge, door no.2	Front door lock (FRONT DOOR LOCK)
77591-85Z01-000	Pad	Front door lock (FRONT DOOR LOCK)
81810-85Z00-000	Stop, fr door open	Front door lock (FRONT DOOR LOCK)
81811-86Z00-000	Bolt	Front door lock (FRONT DOOR LOCK)
81812-86Z00-000	Bolt	Front door lock (FRONT DOOR LOCK)
82201-85Z00-000	Latch assy, fr door rh	Front door lock (FRONT DOOR LOCK)
82201-85Z10-000	Latch assy, fr door rh	Front door lock (FRONT DOOR LOCK)
82202-84Z10-000	Latch assy, fr door lh	Front door lock (FRONT DOOR LOCK)
82202-85Z00-000	Latch assy, fr door lh	Front door lock (FRONT DOOR LOCK)
82202-85Z10-000	Latch assy, fr door lh	Front door lock (FRONT DOOR LOCK)
82211-86Z00-000	Screw	Front door lock (FRONT DOOR LOCK)
82212-85Z00-000	Rod, key cylinder rh	Front door lock (FRONT DOOR LOCK)
82212-85Z10-000	Rod, key cylinder rh	Front door lock (FRONT DOOR LOCK)
82213-85Z00-000	Rod, key cylinder lh	Front door lock (FRONT DOOR LOCK)
82213-85Z10-000	Rod, key cylinder lh	Front door lock (FRONT DOOR LOCK)
82216-85Z00-000	Clip	Front door lock (FRONT DOOR LOCK)
82221-85Z00-000	Rod, fr door handle rh	Front door lock (FRONT DOOR LOCK)
82221-85Z10-000	Rod, fr door handle rh	Front door lock (FRONT DOOR LOCK)
82222-85Z00-000	Rod, fr door handle lh	Front door lock (FRONT DOOR LOCK)
82222-85Z10-000	Rod, fr door handle rh	Front door lock (FRONT DOOR LOCK)
82610-86Z00-000	Striker	Front door lock (FRONT DOOR LOCK)
82611-86Z00-000	Bolt	Front door lock (FRONT DOOR LOCK)
82711-85Z00-000	Cushion	Front door lock (FRONT DOOR LOCK)
82810-85Z00-000	Handle, fr door out rh	Front door lock (FRONT DOOR LOCK)
82810-85Z10-000	Handle, fr door out rh	Front door lock (FRONT DOOR LOCK)
82811-85Z01-000	Clamp	Front door lock (FRONT DOOR LOCK)
82811-86Z00-000	Clamp	Front door lock (FRONT DOOR LOCK)
82812-85Z00-000	Rod, outside handle rh	Front door lock (FRONT DOOR LOCK)
82812-85Z10-000	Rod, outside handle	Front door lock (FRONT DOOR LOCK)
82813-85Z00-000	Rod, outside handle lh	Front door lock (FRONT DOOR LOCK)
82814-85Z00-000	Bolt	Front door lock (FRONT DOOR LOCK)
82820-85Z00-000	Handle, fr door out lh	Front door lock (FRONT DOOR LOCK)
82820-85Z10-000	Handle, fr door out lh	Front door lock (FRONT DOOR LOCK)
82981-85Z00-000	Knob, door locking rh	Front door lock (FRONT DOOR LOCK)
82982-85Z00-000	Knob, door locking lh	Front door lock (FRONT DOOR LOCK)
83973-84Z00-000	Screw	Front door lock (FRONT DOOR LOCK)
84912-86Z00-000	Screw	Front door lock (FRONT DOOR LOCK)
