Search › Model › RQ420
RQ420

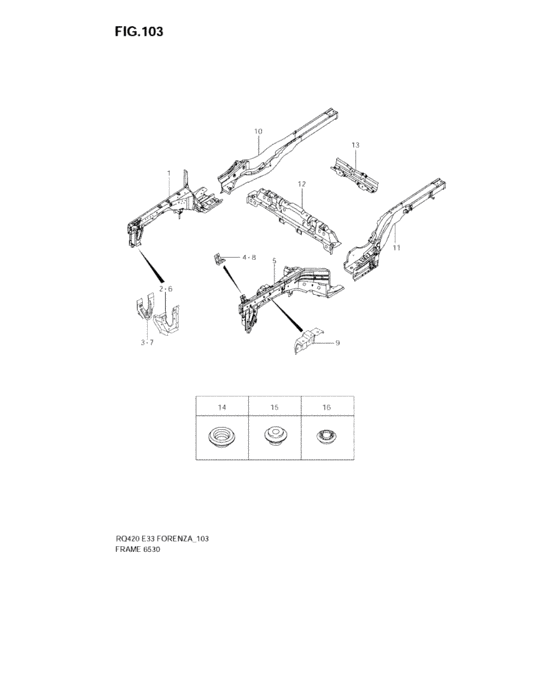

Frame (FRAME) 21
| # | OEM | Part name |
|---|---|---|
| 1 | 62110-85Z01-000 | Member, floor side fr rh |
| 1 | 62110-85Z10-000 | Member, floor side fr rh |
| 2 | 62139-85Z01-000 | Support, fr member inr rh |
| 3 | 62138-85Z00-000 | Support, fr member otr rh |
| 4 | 62336-85Z01-000 | Bracket, fr panel upper rh |
| 5 | 62310-85Z10-000 | Member, floor side fr lh |
| 6 | 62339-85Z01-000 | Support, fr member inr lh |
| 7 | 62338-85Z00-000 | Support, fr member otr lh |
| 8 | 62436-85Z00-000 | Bracket, fr panel upper lh |
| 9 | 62136-85Z00-000 | Bracket, tray outer |
| 10 | 62120-85Z00-000 | Member, floor side rr rh |
| 10 | 62120-85Z10-000 | Member, floor side rr rh |
| 11 | 62320-85Z00-000 | Member, floor side rr lh |
| 11 | 62320-85Z10-000 | Member, floor side rr lh |
| 12 | 62610-85Z01-000 | Crossmember, rr floor front |
| 12 | 62610-85Z10-000 | Crossmember, rr floor front |
| 12 | 62610-85Z11-000 | C/mbr a-rr flr |
| 13 | 62710-85Z00-000 | Crossmember, rr floor rear |
| 14 | 62119-85Z00-000 | Plug |
| 15 | 61538-85Z00-000 | Plug |
| 16 | 75118-86Z00-000 | Plug - Od:32 |
| OEM | Part name | Category |
|---|---|---|
| 61538-85Z00-000 | Plug | Frame (FRAME) |
| 62110-85Z01-000 | Member, floor side fr rh | Frame (FRAME) |
| 62110-85Z10-000 | Member, floor side fr rh | Frame (FRAME) |
| 62119-85Z00-000 | Plug | Frame (FRAME) |
| 62120-85Z00-000 | Member, floor side rr rh | Frame (FRAME) |
| 62120-85Z10-000 | Member, floor side rr rh | Frame (FRAME) |
| 62136-85Z00-000 | Bracket, tray outer | Frame (FRAME) |
| 62138-85Z00-000 | Support, fr member otr rh | Frame (FRAME) |
| 62139-85Z01-000 | Support, fr member inr rh | Frame (FRAME) |
| 62310-85Z10-000 | Member, floor side fr lh | Frame (FRAME) |
| 62320-85Z00-000 | Member, floor side rr lh | Frame (FRAME) |
| 62320-85Z10-000 | Member, floor side rr lh | Frame (FRAME) |
| 62336-85Z01-000 | Bracket, fr panel upper rh | Frame (FRAME) |
| 62338-85Z00-000 | Support, fr member otr lh | Frame (FRAME) |
| 62339-85Z01-000 | Support, fr member inr lh | Frame (FRAME) |
| 62436-85Z00-000 | Bracket, fr panel upper lh | Frame (FRAME) |
| 62610-85Z01-000 | Crossmember, rr floor front | Frame (FRAME) |
| 62610-85Z10-000 | Crossmember, rr floor front | Frame (FRAME) |
| 62610-85Z11-000 | C/mbr a-rr flr | Frame (FRAME) |
| 62710-85Z00-000 | Crossmember, rr floor rear | Frame (FRAME) |
| 75118-86Z00-000 | Plug - Od:32 | Frame (FRAME) |
