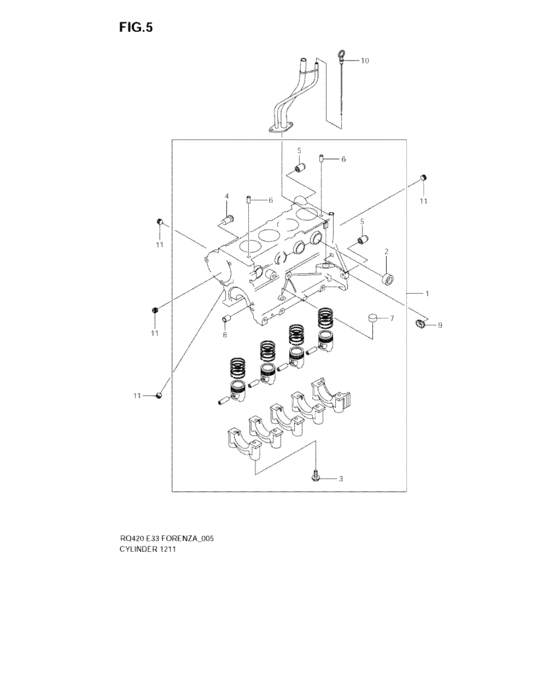

Cylinder (CYLINDER)
14
| # | OEM | Part name |
|---|
| 1 |
11200-85Z02-000 |
Block assy, cylinder |
| 1 |
11200-85Z01-000 |
Block assy, cyl |
| 1 |
11200-85Z30-000 |
Block assy, cylinder |
| 2 |
11239-84Z00-000 |
Cap, cyl block |
| 2 |
11239-84Z10-000 |
Cap, cyl block - Os:36mm |
| 3 |
11251-85Z00-000 |
Bolt |
| 4 |
17831-85Z00-000 |
Union, water inlet |
| 5 |
11298-86Z00-000 |
Pin, knock |
| 6 |
11226-85Z00-000 |
Pin, dowel |
| 7 |
11228-85Z00-000 |
Plug |
| 8 |
11227-85Z00-000 |
Pin, dowel |
| 9 |
11224-85Z00-000 |
Cap, cyl block |
| 10 |
16910-85Z00-000 |
Gauge, oil level |
| 11 |
11228-84Z00-000 |
Plug |
| OEM |
Part name |
Category |
| 11200-85Z01-000 |
Block assy, cyl |
Cylinder (CYLINDER) |
| 11200-85Z02-000 |
Block assy, cylinder |
Cylinder (CYLINDER) |
| 11200-85Z30-000 |
Block assy, cylinder |
Cylinder (CYLINDER) |
| 11224-85Z00-000 |
Cap, cyl block |
Cylinder (CYLINDER) |
| 11226-85Z00-000 |
Pin, dowel |
Cylinder (CYLINDER) |
| 11227-85Z00-000 |
Pin, dowel |
Cylinder (CYLINDER) |
| 11228-84Z00-000 |
Plug |
Cylinder (CYLINDER) |
| 11228-85Z00-000 |
Plug |
Cylinder (CYLINDER) |
| 11239-84Z00-000 |
Cap, cyl block |
Cylinder (CYLINDER) |
| 11239-84Z10-000 |
Cap, cyl block - Os:36mm |
Cylinder (CYLINDER) |
| 11251-85Z00-000 |
Bolt |
Cylinder (CYLINDER) |
| 11298-86Z00-000 |
Pin, knock |
Cylinder (CYLINDER) |
| 16910-85Z00-000 |
Gauge, oil level |
Cylinder (CYLINDER) |
| 17831-85Z00-000 |
Union, water inlet |
Cylinder (CYLINDER) |
