RQ420

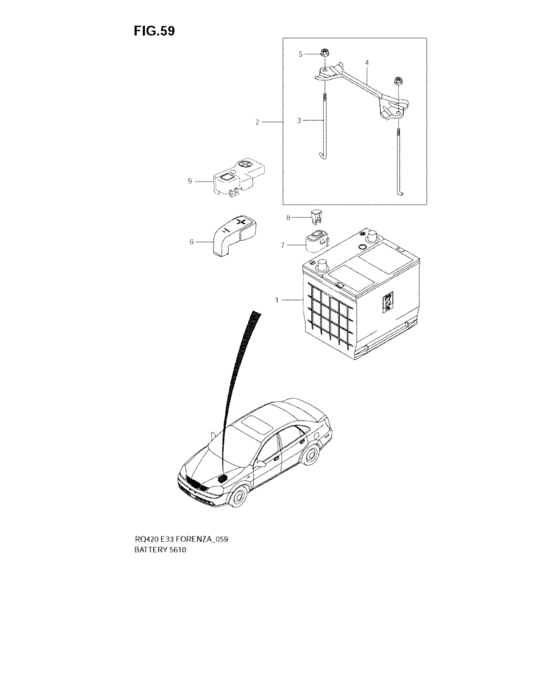

Battery (BATTERY) 10
| # | OEM | Part name |
|---|---|---|
| 1 | 33610-85Z01-000 | Battery |
| 2 | 72510-85Z00-000 | Holder assy, battery |
| 3 | 72512-85Z00-000 | Rod |
| 4 | 72511-85Z00-000 | Band |
| 5 | 72516-86Z00-000 | Nut |
| 6 | 33611-85Z00-000 | Cap |
| 6 | 33611-85Z10-000 | Cap |
| 7 | 36730-85Z00-000 | Block, fuse |
| 8 | 33613-84Z00-000 | Fuse, block |
| 9 | 36694-84Z00-000 | Cover, fuse block |
| OEM | Part name | Category |
|---|---|---|
| 33610-85Z01-000 | Battery | Battery (BATTERY) |
| 33611-85Z00-000 | Cap | Battery (BATTERY) |
| 33611-85Z10-000 | Cap | Battery (BATTERY) |
| 33613-84Z00-000 | Fuse, block | Battery (BATTERY) |
| 36694-84Z00-000 | Cover, fuse block | Battery (BATTERY) |
| 36730-85Z00-000 | Block, fuse | Battery (BATTERY) |
| 72510-85Z00-000 | Holder assy, battery | Battery (BATTERY) |
| 72511-85Z00-000 | Band | Battery (BATTERY) |
| 72512-85Z00-000 | Rod | Battery (BATTERY) |
| 72516-86Z00-000 | Nut | Battery (BATTERY) |
