Search › Model › RQ420
RQ420

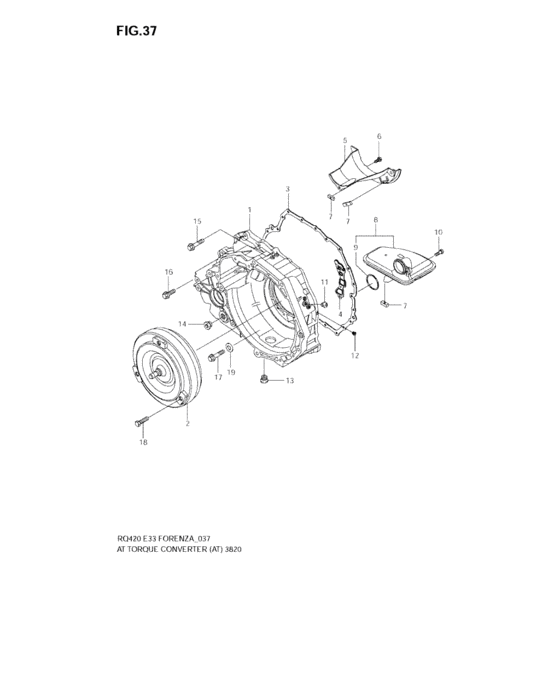

At torque converter (AT) 18
| # | OEM | Part name |
|---|---|---|
| 1 | 24720-85Z00-000 | Housing, torque convertor |
| 2 | 22710-85Z00-000 | Converter, torque |
| 3 | 24719-86Z00-000 | Gasket, housing |
| 4 | 24718-86Z00-000 | Gasket |
| 5 | 24881-86Z00-000 | Plate, oil reservoir |
| 6 | 29970-86Z00-000 | Bolt - 6x16 |
| 7 | 24745-86Z00-000 | Magnet |
| 8 | 26440-86Z00-000 | Strainer, Oil |
| 9 | 26439-86Z00-000 | O ring |
| 10 | 26438-86Z00-000 | Bolt - 6x18 |
| 11 | 29849-86Z00-000 | Plug, pressure |
| 12 | 29848-86Z00-000 | Plug, pressure |
| 13 | 24823-86Z00-000 | Plug, oil |
| 15 | 24725-86Z00-000 | Bolt, housing |
| 16 | 24726-86Z00-000 | Bolt, housing |
| 17 | 24725-85Z00-000 | Bolt - 8x50 |
| 18 | 20999-86Z00-000 | Bolt |
| 19 | 24727-86Z00-000 | Ring |
| OEM | Part name | Category |
|---|---|---|
| 20999-86Z00-000 | Bolt | At torque converter (AT) |
| 22710-85Z00-000 | Converter, torque | At torque converter (AT) |
| 24718-86Z00-000 | Gasket | At torque converter (AT) |
| 24719-86Z00-000 | Gasket, housing | At torque converter (AT) |
| 24720-85Z00-000 | Housing, torque convertor | At torque converter (AT) |
| 24725-85Z00-000 | Bolt - 8x50 | At torque converter (AT) |
| 24725-86Z00-000 | Bolt, housing | At torque converter (AT) |
| 24726-86Z00-000 | Bolt, housing | At torque converter (AT) |
| 24727-86Z00-000 | Ring | At torque converter (AT) |
| 24745-86Z00-000 | Magnet | At torque converter (AT) |
| 24823-86Z00-000 | Plug, oil | At torque converter (AT) |
| 24881-86Z00-000 | Plate, oil reservoir | At torque converter (AT) |
| 26438-86Z00-000 | Bolt - 6x18 | At torque converter (AT) |
| 26439-86Z00-000 | O ring | At torque converter (AT) |
| 26440-86Z00-000 | Strainer, Oil | At torque converter (AT) |
| 29848-86Z00-000 | Plug, pressure | At torque converter (AT) |
| 29849-86Z00-000 | Plug, pressure | At torque converter (AT) |
| 29970-86Z00-000 | Bolt - 6x16 | At torque converter (AT) |
