RQ420

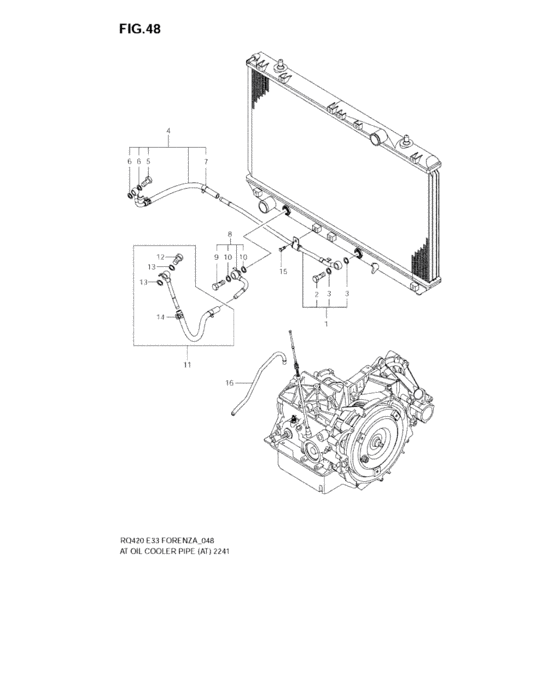

At oil cooler pipe (AT) 10
| # | OEM | Part name |
|---|---|---|
| 1 | 22910-85Z02-000 | Pipe, oil cooler outlet |
| 2 | 22909-86Z00-000 | Bolt, union |
| 3 | 22929-86Z00-000 | Washer |
| 4 | 22920-85Z01-000 | Pipe assy, oil cooler outlet |
| 6 | 22919-86Z00-000 | Washer |
| 7 | 22939-86Z00-000 | Clip |
| 8 | 22930-85Z02-000 | Pipe assy, oil cooler inlet |
| 11 | 22940-85Z01-000 | Pipe assy, oil cooler inlet |
| 15 | 82814-86Z00-000 | Bolt |
| 16 | 22951-85Z00-000 | Hose, breather |
| OEM | Part name | Category |
|---|---|---|
| 22909-86Z00-000 | Bolt, union | At oil cooler pipe (AT) |
| 22910-85Z02-000 | Pipe, oil cooler outlet | At oil cooler pipe (AT) |
| 22919-86Z00-000 | Washer | At oil cooler pipe (AT) |
| 22920-85Z01-000 | Pipe assy, oil cooler outlet | At oil cooler pipe (AT) |
| 22929-86Z00-000 | Washer | At oil cooler pipe (AT) |
| 22930-85Z02-000 | Pipe assy, oil cooler inlet | At oil cooler pipe (AT) |
| 22939-86Z00-000 | Clip | At oil cooler pipe (AT) |
| 22940-85Z01-000 | Pipe assy, oil cooler inlet | At oil cooler pipe (AT) |
| 22951-85Z00-000 | Hose, breather | At oil cooler pipe (AT) |
| 82814-86Z00-000 | Bolt | At oil cooler pipe (AT) |
