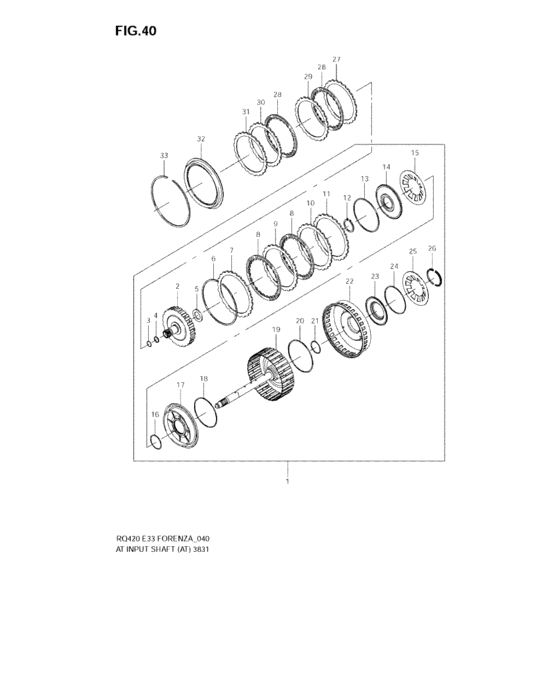

At input shaft (AT)
28
| # | OEM | Part name |
|---|
| 1 |
24100-86Z00-000 |
Shaft assy, input |
| 2 |
24942-86Z00-000 |
Gear, carrier disk inner |
| 3 |
24943-86Z10-000 |
Ring, piston |
| 4 |
24944-86Z00-000 |
Ring, snap |
| 5 |
24945-86Z00-000 |
Bearing, needle |
| 6 |
26631-86Z00-000 |
Ring, snap |
| 7 |
26632-86Z00-390 |
Plate, clutch - T:3.90 |
| 8 |
26628-86Z00-000 |
Disk, front clutch |
| 9 |
26635-86Z00-210 |
Plate, clutch - T:2.10 |
| 10 |
26635-86Z00-180 |
Plate, clutch - T:1.80 |
| 11 |
26636-86Z00-000 |
Spring, clutch disk |
| 12 |
26637-86Z00-000 |
Ring |
| 13 |
26638-86Z00-000 |
O ring |
| 14 |
26639-86Z00-000 |
Dam, oil |
| 15 |
26641-86Z00-000 |
Spring, cup |
| 16 |
26642-86Z00-000 |
O ring |
| 17 |
26643-86Z00-000 |
Piston, e |
| 19 |
24110-86Z00-000 |
Shaft, input |
| 20 |
26645-86Z00-000 |
O ring |
| 21 |
26646-86Z00-000 |
O ring |
| 22 |
26647-86Z00-000 |
Piston |
| 23 |
26648-86Z00-000 |
Dam, oil |
| 24 |
26649-86Z00-000 |
O ring |
| 25 |
26651-86Z00-000 |
Spring, cup |
| 26 |
26652-86Z00-000 |
Ring, stop |
| 29 |
26635-86Z00-250 |
Plate, clutch - T:2.50 |
| 32 |
26658-86Z00-000 |
Piston, b |
| 33 |
26659-86Z00-000 |
Ring, snap |
| OEM |
Part name |
Category |
| 24100-86Z00-000 |
Shaft assy, input |
At input shaft (AT) |
| 24110-86Z00-000 |
Shaft, input |
At input shaft (AT) |
| 24942-86Z00-000 |
Gear, carrier disk inner |
At input shaft (AT) |
| 24943-86Z10-000 |
Ring, piston |
At input shaft (AT) |
| 24944-86Z00-000 |
Ring, snap |
At input shaft (AT) |
| 24945-86Z00-000 |
Bearing, needle |
At input shaft (AT) |
| 26628-86Z00-000 |
Disk, front clutch |
At input shaft (AT) |
| 26631-86Z00-000 |
Ring, snap |
At input shaft (AT) |
| 26632-86Z00-390 |
Plate, clutch - T:3.90 |
At input shaft (AT) |
| 26635-86Z00-180 |
Plate, clutch - T:1.80 |
At input shaft (AT) |
| 26635-86Z00-210 |
Plate, clutch - T:2.10 |
At input shaft (AT) |
| 26635-86Z00-250 |
Plate, clutch - T:2.50 |
At input shaft (AT) |
| 26636-86Z00-000 |
Spring, clutch disk |
At input shaft (AT) |
| 26637-86Z00-000 |
Ring |
At input shaft (AT) |
| 26638-86Z00-000 |
O ring |
At input shaft (AT) |
| 26639-86Z00-000 |
Dam, oil |
At input shaft (AT) |
| 26641-86Z00-000 |
Spring, cup |
At input shaft (AT) |
| 26642-86Z00-000 |
O ring |
At input shaft (AT) |
| 26643-86Z00-000 |
Piston, e |
At input shaft (AT) |
| 26645-86Z00-000 |
O ring |
At input shaft (AT) |
| 26646-86Z00-000 |
O ring |
At input shaft (AT) |
| 26647-86Z00-000 |
Piston |
At input shaft (AT) |
| 26648-86Z00-000 |
Dam, oil |
At input shaft (AT) |
| 26649-86Z00-000 |
O ring |
At input shaft (AT) |
| 26651-86Z00-000 |
Spring, cup |
At input shaft (AT) |
| 26652-86Z00-000 |
Ring, stop |
At input shaft (AT) |
| 26658-86Z00-000 |
Piston, b |
At input shaft (AT) |
| 26659-86Z00-000 |
Ring, snap |
At input shaft (AT) |
