RQ420

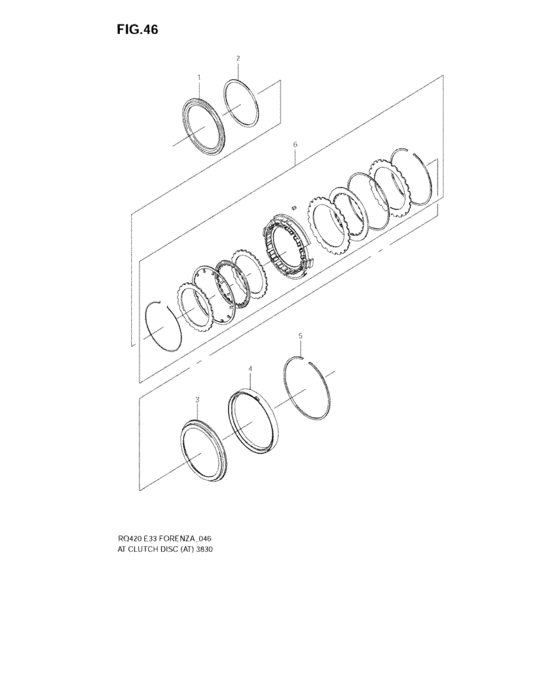

At clutch disc (AT) 11
| # | OEM | Part name |
|---|---|---|
| 1 | 26811-86Z00-000 | Piston, d |
| 2 | 26812-86Z00-000 | Disk, spring |
| 3 | 26826-86Z00-000 | Piston, c |
| 4 | 26827-86Z00-000 | Cylinder, c |
| 5 | 26828-86Z00-305 | Ring - T:3.05 |
| 5 | 26828-86Z00-320 | Ring - T:3.20 |
| 5 | 26828-86Z00-335 | Ring - T:3.35 |
| 5 | 26828-86Z00-350 | Ring - T:3.50 |
| 5 | 26828-86Z00-365 | Ring - T:3.65 |
| 5 | 26828-86Z00-380 | Ring - T:3.80 |
| 6 | 26800-86Z00-000 | Disk set, c & d |
| OEM | Part name | Category |
|---|---|---|
| 26800-86Z00-000 | Disk set, c & d | At clutch disc (AT) |
| 26811-86Z00-000 | Piston, d | At clutch disc (AT) |
| 26812-86Z00-000 | Disk, spring | At clutch disc (AT) |
| 26826-86Z00-000 | Piston, c | At clutch disc (AT) |
| 26827-86Z00-000 | Cylinder, c | At clutch disc (AT) |
| 26828-86Z00-305 | Ring - T:3.05 | At clutch disc (AT) |
| 26828-86Z00-320 | Ring - T:3.20 | At clutch disc (AT) |
| 26828-86Z00-335 | Ring - T:3.35 | At clutch disc (AT) |
| 26828-86Z00-350 | Ring - T:3.50 | At clutch disc (AT) |
| 26828-86Z00-365 | Ring - T:3.65 | At clutch disc (AT) |
| 26828-86Z00-380 | Ring - T:3.80 | At clutch disc (AT) |
