| 13169-86Z00-000 |
Bolt |

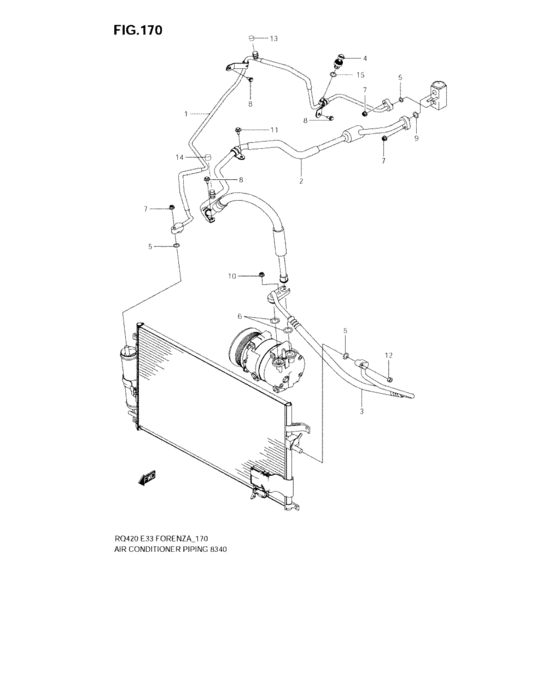

Air conditioner piping (AIR CONDITIONER PIPING) |
| 18138-86Z00-000 |
Bolt |
Air conditioner piping (AIR CONDITIONER PIPING) |
| 31411-86Z10-000 |
Nut |
Air conditioner piping (AIR CONDITIONER PIPING) |
| 48232-86Z21-000 |
Nut |
Air conditioner piping (AIR CONDITIONER PIPING) |
| 95526-86Z10-000 |
Switch, pressure |
Air conditioner piping (AIR CONDITIONER PIPING) |
| 95710-85Z00-000 |
Hose assy, suction |
Air conditioner piping (AIR CONDITIONER PIPING) |
| 95710-85Z10-000 |
Hose a-ref,suct |
Air conditioner piping (AIR CONDITIONER PIPING) |
| 95711-85Z00-000 |
Cap |
Air conditioner piping (AIR CONDITIONER PIPING) |
| 95720-85Z00-000 |
Hose assy, discharge |
Air conditioner piping (AIR CONDITIONER PIPING) |
| 95721-86Z00-000 |
Nut |
Air conditioner piping (AIR CONDITIONER PIPING) |
| 95731-85Z00-000 |
Pipe assy, liquid condenser |
Air conditioner piping (AIR CONDITIONER PIPING) |
| 95732-85Z00-000 |
Cap |
Air conditioner piping (AIR CONDITIONER PIPING) |
| 95856-86Z00-000 |
Washer |
Air conditioner piping (AIR CONDITIONER PIPING) |
| 95856-86Z10-000 |
Washer |
Air conditioner piping (AIR CONDITIONER PIPING) |
| 95891-86Z00-000 |
O ring |
Air conditioner piping (AIR CONDITIONER PIPING) |
| 95892-84Z00-000 |
O ring |
Air conditioner piping (AIR CONDITIONER PIPING) |
| 95896-86Z00-000 |
O ring |
Air conditioner piping (AIR CONDITIONER PIPING) |
