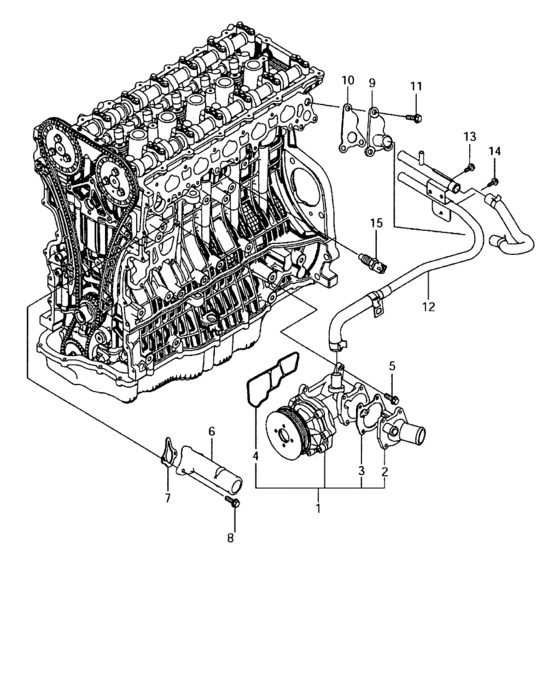

Water pump (WATER PUMP)
17
| # | OEM | Part name |
|---|
| 1 |
17400-86Z00-000 |
Pump set, water |
| 1 |
17400-86Z02-000 |
Pump a-water |
| 2 |
17600-86Z00-000 |
Thermostat assy |
| 3 |
17699-86Z00-000 |
Gasket, thermostat |
| 4 |
17431-86Z00-000 |
Gasket, Water Pump |
| 5 |
17439-86Z00-000 |
Bolt |
| 6 |
17570-86Z00-000 |
Cap, water outlet |
| 7 |
17579-86Z00-000 |
Gasket, water outlet cap |
| 8 |
11389-86Z00-000 |
Bolt |
| 9 |
17870-86Z00-000 |
Case, heater adapter |
| 10 |
17889-86Z00-000 |
Gasket, adapter case |
| 11 |
18116-86Z00-000 |
Bolt, egr valve |
| 12 |
17880-86Z00-000 |
Pipe assy, heater |
| 12 |
17880-86Z01-000 |
Pipe a-htr,fdg& |
| 13 |
16937-86Z00-000 |
Bolt, ctr |
| 14 |
11339-86Z00-000 |
Bolt |
| 15 |
13650-86Z00-000 |
Sensor assy, water temp |
| OEM |
Part name |
Category |
| 11339-86Z00-000 |
Bolt |
Water pump (WATER PUMP) |
| 11389-86Z00-000 |
Bolt |
Water pump (WATER PUMP) |
| 13650-86Z00-000 |
Sensor assy, water temp |
Water pump (WATER PUMP) |
| 16937-86Z00-000 |
Bolt, ctr |
Water pump (WATER PUMP) |
| 17400-86Z00-000 |
Pump set, water |
Water pump (WATER PUMP) |
| 17400-86Z02-000 |
Pump a-water |
Water pump (WATER PUMP) |
| 17431-86Z00-000 |
Gasket, Water Pump |
Water pump (WATER PUMP) |
| 17439-86Z00-000 |
Bolt |
Water pump (WATER PUMP) |
| 17570-86Z00-000 |
Cap, water outlet |
Water pump (WATER PUMP) |
| 17579-86Z00-000 |
Gasket, water outlet cap |
Water pump (WATER PUMP) |
| 17600-86Z00-000 |
Thermostat assy |
Water pump (WATER PUMP) |
| 17699-86Z00-000 |
Gasket, thermostat |
Water pump (WATER PUMP) |
| 17870-86Z00-000 |
Case, heater adapter |
Water pump (WATER PUMP) |
| 17880-86Z00-000 |
Pipe assy, heater |
Water pump (WATER PUMP) |
| 17880-86Z01-000 |
Pipe a-htr,fdg& |
Water pump (WATER PUMP) |
| 17889-86Z00-000 |
Gasket, adapter case |
Water pump (WATER PUMP) |
| 18116-86Z00-000 |
Bolt, egr valve |
Water pump (WATER PUMP) |
