Search › Model › RP625
RP625

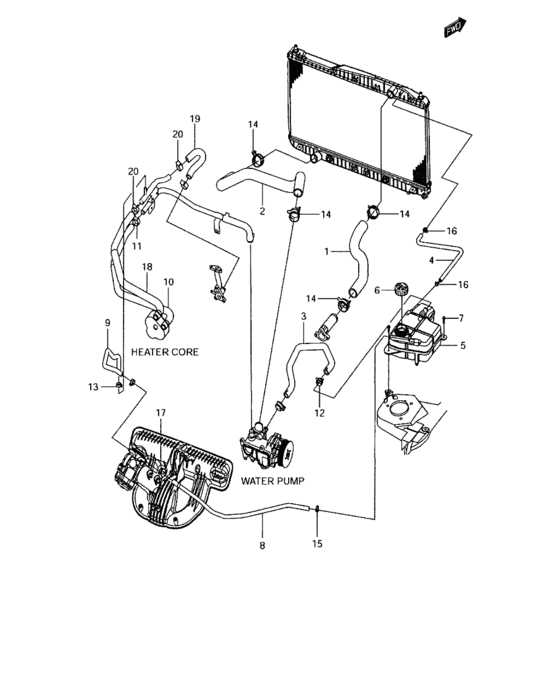

Water hose (WATER HOSE) 21
| # | OEM | Part name |
|---|---|---|
| 1 | 17852-86Z00-000 | Hose, radiator inlet |
| 1 | 17852-86Z01-000 | Hose-rad,upr |
| 2 | 17854-86Z00-000 | Hose, radiator outlet |
| 3 | 17856-86Z00-000 | Hose, deg tank to wtr pump |
| 4 | 17857-86Z01-000 | Hose, rdtr to deg tank |
| 5 | 17930-86Z00-000 | Tank, degassing |
| 5 | 17930-86Z01-000 | Tank-surge |
| 6 | 17920-85Z00-000 | Cap, surge tank |
| 7 | 18138-86Z00-000 | Bolt |
| 8 | 17861-86Z00-000 | Hose, deg rtn |
| 8 | 17861-86Z10-000 | Hose, deg rtn |
| 9 | 17873-86Z01-000 | Hose, heater no.2 |
| 9 | 17873-86Z10-000 | Hose, heater no.2 |
| 10 | 17872-86Z00-000 | Hose, heater rtn no.1 |
| 11 | 17859-86Z00-000 | Clip |
| 13 | 11195-86Z00-000 | Clip |
| 14 | 17839-86Z00-000 | Clip |
| 15 | 15737-86Z00-000 | Clip |
| 18 | 17871-86Z00-000 | Hose, heater no.1 |
| 19 | 17874-86Z00-000 | Hose, heater rtn no.2 |
| 20 | 17879-86Z00-000 | Clip |
| OEM | Part name | Category |
|---|---|---|
| 11195-86Z00-000 | Clip | Water hose (WATER HOSE) |
| 15737-86Z00-000 | Clip | Water hose (WATER HOSE) |
| 17839-86Z00-000 | Clip | Water hose (WATER HOSE) |
| 17852-86Z00-000 | Hose, radiator inlet | Water hose (WATER HOSE) |
| 17852-86Z01-000 | Hose-rad,upr | Water hose (WATER HOSE) |
| 17854-86Z00-000 | Hose, radiator outlet | Water hose (WATER HOSE) |
| 17856-86Z00-000 | Hose, deg tank to wtr pump | Water hose (WATER HOSE) |
| 17857-86Z01-000 | Hose, rdtr to deg tank | Water hose (WATER HOSE) |
| 17859-86Z00-000 | Clip | Water hose (WATER HOSE) |
| 17861-86Z00-000 | Hose, deg rtn | Water hose (WATER HOSE) |
| 17861-86Z10-000 | Hose, deg rtn | Water hose (WATER HOSE) |
| 17871-86Z00-000 | Hose, heater no.1 | Water hose (WATER HOSE) |
| 17872-86Z00-000 | Hose, heater rtn no.1 | Water hose (WATER HOSE) |
| 17873-86Z01-000 | Hose, heater no.2 | Water hose (WATER HOSE) |
| 17873-86Z10-000 | Hose, heater no.2 | Water hose (WATER HOSE) |
| 17874-86Z00-000 | Hose, heater rtn no.2 | Water hose (WATER HOSE) |
| 17879-86Z00-000 | Clip | Water hose (WATER HOSE) |
| 17920-85Z00-000 | Cap, surge tank | Water hose (WATER HOSE) |
| 17930-86Z00-000 | Tank, degassing | Water hose (WATER HOSE) |
| 17930-86Z01-000 | Tank-surge | Water hose (WATER HOSE) |
| 18138-86Z00-000 | Bolt | Water hose (WATER HOSE) |
