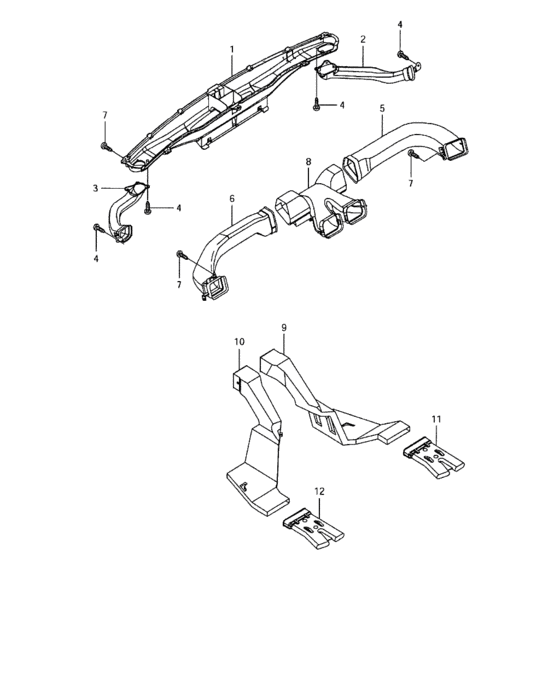

Ventilator (VENTILATOR)
12
| # | OEM | Part name |
|---|
| 1 |
73661-86Z00-000 |
Duct, defroster |
| 2 |
73681-86Z00-000 |
Duct, demister rh |
| 3 |
73691-86Z00-000 |
Duct, demister lh |
| 4 |
34692-86Z00-000 |
Screw - Tapping m4 |
| 5 |
74649-86Z00-000 |
Duct, vent rh |
| 6 |
74641-86Z00-000 |
Duct, vent lh |
| 7 |
73418-86Z00-000 |
Screw |
| 8 |
74621-86Z00-000 |
Duct, junction upr |
| 9 |
74652-86Z00-000 |
Duct, leg room rr rh |
| 10 |
74653-86Z00-000 |
Duct, leg room rr lh |
| 11 |
74656-86Z00-000 |
Duct, extension rr rh |
| 12 |
74657-86Z00-000 |
Duct, extension rr lh |
| OEM |
Part name |
Category |
| 34692-86Z00-000 |
Screw - Tapping m4 |
Ventilator (VENTILATOR) |
| 73418-86Z00-000 |
Screw |
Ventilator (VENTILATOR) |
| 73661-86Z00-000 |
Duct, defroster |
Ventilator (VENTILATOR) |
| 73681-86Z00-000 |
Duct, demister rh |
Ventilator (VENTILATOR) |
| 73691-86Z00-000 |
Duct, demister lh |
Ventilator (VENTILATOR) |
| 74621-86Z00-000 |
Duct, junction upr |
Ventilator (VENTILATOR) |
| 74641-86Z00-000 |
Duct, vent lh |
Ventilator (VENTILATOR) |
| 74649-86Z00-000 |
Duct, vent rh |
Ventilator (VENTILATOR) |
| 74652-86Z00-000 |
Duct, leg room rr rh |
Ventilator (VENTILATOR) |
| 74653-86Z00-000 |
Duct, leg room rr lh |
Ventilator (VENTILATOR) |
| 74656-86Z00-000 |
Duct, extension rr rh |
Ventilator (VENTILATOR) |
| 74657-86Z00-000 |
Duct, extension rr lh |
Ventilator (VENTILATOR) |
