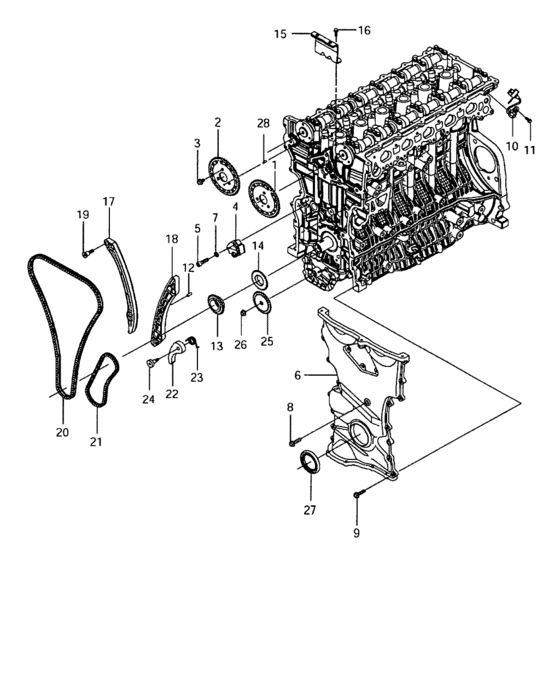

| 11381-86Z00-000 |
Cover, timing chain |
Timing cover (TIMING COVER) |
| 11383-86Z00-000 |
Seal, oil |
Timing cover (TIMING COVER) |
| 11389-86Z00-000 |
Bolt |
Timing cover (TIMING COVER) |
| 12631-86Z00-000 |
Sprocket, crank timing |
Timing cover (TIMING COVER) |
| 12632-86Z00-000 |
Sprocket, oil pump drive |
Timing cover (TIMING COVER) |
| 12741-86Z00-000 |
Sprocket, camshaft intake |
Timing cover (TIMING COVER) |
| 12742-86Z00-000 |
Sprocket, camshaft exhaust |
Timing cover (TIMING COVER) |
| 12748-86Z00-000 |
Pin, dowel |
Timing cover (TIMING COVER) |
| 12749-86Z00-000 |
Bolt |
Timing cover (TIMING COVER) |
| 12761-86Z00-000 |
Chain, timing |
Timing cover (TIMING COVER) |
| 12771-86Z00-000 |
Guide, timing chain no.1 |
Timing cover (TIMING COVER) |
| 12772-86Z00-000 |
Guide, timing chain no.2 |
Timing cover (TIMING COVER) |
| 12779-86Z00-000 |
Pin, dowel |
Timing cover (TIMING COVER) |
| 12811-86Z00-000 |
Tensioner, Timing Chain |
Timing cover (TIMING COVER) |
| 12815-86Z00-000 |
Bolt |
Timing cover (TIMING COVER) |
| 12831-86Z00-000 |
Adjuster assy, tensioner |
Timing cover (TIMING COVER) |
| 12838-86Z00-000 |
Bolt |
Timing cover (TIMING COVER) |
| 12839-86Z00-000 |
Washer |
Timing cover (TIMING COVER) |
| 16113-86Z00-000 |
Sprocket, oil pump |
Timing cover (TIMING COVER) |
| 16117-86Z00-000 |
Nut |
Timing cover (TIMING COVER) |
| 16538-86Z00-000 |
Bolt |
Timing cover (TIMING COVER) |
| 16760-86Z00-000 |
Chain, oil pump |
Timing cover (TIMING COVER) |
| 16781-86Z00-000 |
Guide, oil pump chain |
Timing cover (TIMING COVER) |
| 16782-86Z00-000 |
Spring, chain guide |
Timing cover (TIMING COVER) |
| 16783-86Z00-000 |
Bolt |
Timing cover (TIMING COVER) |
| 16937-86Z00-000 |
Bolt, ctr |
Timing cover (TIMING COVER) |
| 33220-86Z00-000 |
Sensor assy, cam position |
Timing cover (TIMING COVER) |
| 33227-86Z00-000 |
Bolt |
Timing cover (TIMING COVER) |
