Search › Model › RP625
RP625

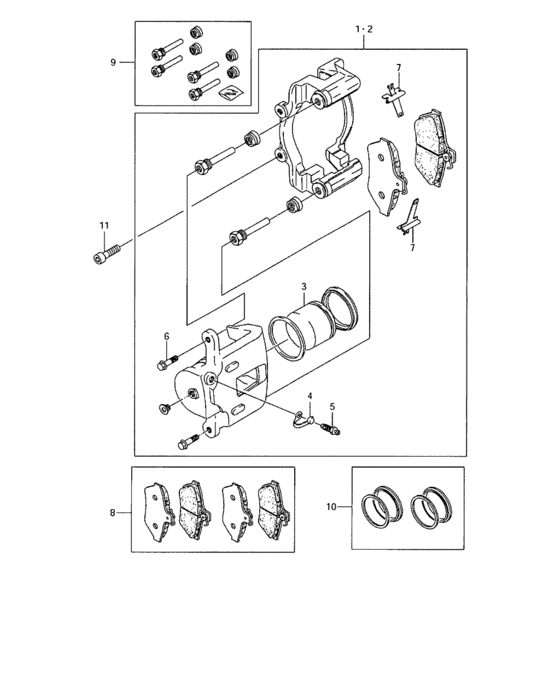

Rear brake (REAR BRAKE) 11
| # | OEM | Part name |
|---|---|---|
| 1 | 55401-86Z00-000 | Caliper assy, rr brake rh |
| 2 | 55402-86Z00-000 | Caliper assy, rr brake lh |
| 3 | 55890-86Z00-000 | Piston, caliper |
| 4 | 55156-86Z00-000 | Cap, bleeder poug |
| 5 | 55473-86Z00-000 | Plug, bleeder |
| 6 | 55206-86Z00-000 | Bolt |
| 7 | 55521-86Z00-000 | Spring, pad |
| 8 | 55500-86Z00-000 | Pad set, disc brake |
| 9 | 55870-86Z00-000 | Pin set, slide |
| 10 | 55880-86Z00-000 | Seal set, piston |
| 11 | 55419-86Z00-000 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 55156-86Z00-000 | Cap, bleeder poug | Rear brake (REAR BRAKE) |
| 55206-86Z00-000 | Bolt | Rear brake (REAR BRAKE) |
| 55401-86Z00-000 | Caliper assy, rr brake rh | Rear brake (REAR BRAKE) |
| 55402-86Z00-000 | Caliper assy, rr brake lh | Rear brake (REAR BRAKE) |
| 55419-86Z00-000 | Bolt | Rear brake (REAR BRAKE) |
| 55473-86Z00-000 | Plug, bleeder | Rear brake (REAR BRAKE) |
| 55500-86Z00-000 | Pad set, disc brake | Rear brake (REAR BRAKE) |
| 55521-86Z00-000 | Spring, pad | Rear brake (REAR BRAKE) |
| 55870-86Z00-000 | Pin set, slide | Rear brake (REAR BRAKE) |
| 55880-86Z00-000 | Seal set, piston | Rear brake (REAR BRAKE) |
| 55890-86Z00-000 | Piston, caliper | Rear brake (REAR BRAKE) |
