RP625

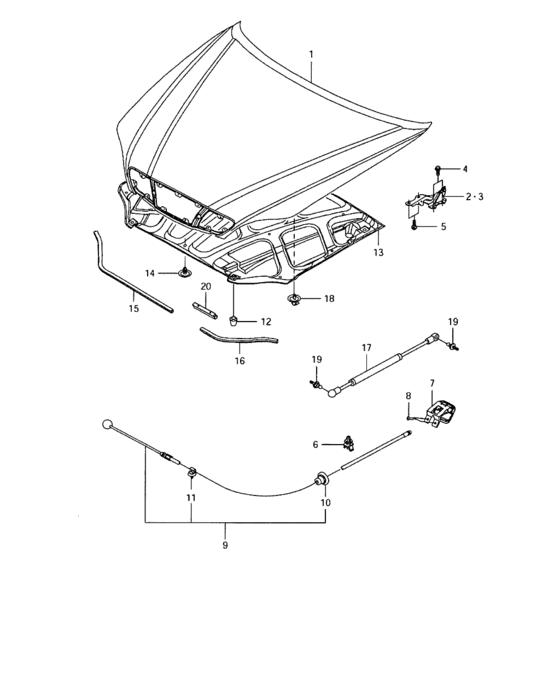

Hood panel (HOOD PANEL) 20
| # | OEM | Part name |
|---|---|---|
| 1 | 57300-86Z00-000 | Panel assy, front hood |
| 2 | 57410-86Z00-000 | Hinge, front hood rh |
| 3 | 57420-86Z00-000 | Hinge, front hood lh |
| 4 | 57419-86Z00-000 | Bolt |
| 5 | 57418-86Z00-000 | Bolt - M8 |
| 6 | 82179-86Z00-000 | Clip |
| 7 | 82170-86Z00-000 | Lever, hood latch release |
| 8 | 37461-86Z00-000 | Screw, tie bar |
| 9 | 82160-86Z00-000 | Cable, hood latch release |
| 10 | 82169-86Z00-000 | Grommet |
| 11 | 82168-86Z00-000 | Clip |
| 12 | 72372-86Z00-000 | Cushion |
| 13 | 72440-86Z00-000 | Silencer, fr hood |
| 14 | 72449-86Z00-000 | Clip |
| 15 | 72151-86Z01-000 | Seal, hood front rh |
| 16 | 72152-86Z00-000 | Seal, hood front lh |
| 17 | 72320-86Z00-000 | Prop, front hood |
| 18 | 72448-86Z00-000 | Clip |
| 19 | 72329-86Z00-000 | Joint, ball |
| 20 | 72153-86Z00-000 | Seal, protection |
| OEM | Part name | Category |
|---|---|---|
| 37461-86Z00-000 | Screw, tie bar | Hood panel (HOOD PANEL) |
| 57300-86Z00-000 | Panel assy, front hood | Hood panel (HOOD PANEL) |
| 57410-86Z00-000 | Hinge, front hood rh | Hood panel (HOOD PANEL) |
| 57418-86Z00-000 | Bolt - M8 | Hood panel (HOOD PANEL) |
| 57419-86Z00-000 | Bolt | Hood panel (HOOD PANEL) |
| 57420-86Z00-000 | Hinge, front hood lh | Hood panel (HOOD PANEL) |
| 72151-86Z01-000 | Seal, hood front rh | Hood panel (HOOD PANEL) |
| 72152-86Z00-000 | Seal, hood front lh | Hood panel (HOOD PANEL) |
| 72153-86Z00-000 | Seal, protection | Hood panel (HOOD PANEL) |
| 72320-86Z00-000 | Prop, front hood | Hood panel (HOOD PANEL) |
| 72329-86Z00-000 | Joint, ball | Hood panel (HOOD PANEL) |
| 72372-86Z00-000 | Cushion | Hood panel (HOOD PANEL) |
| 72440-86Z00-000 | Silencer, fr hood | Hood panel (HOOD PANEL) |
| 72448-86Z00-000 | Clip | Hood panel (HOOD PANEL) |
| 72449-86Z00-000 | Clip | Hood panel (HOOD PANEL) |
| 82160-86Z00-000 | Cable, hood latch release | Hood panel (HOOD PANEL) |
| 82168-86Z00-000 | Clip | Hood panel (HOOD PANEL) |
| 82169-86Z00-000 | Grommet | Hood panel (HOOD PANEL) |
| 82170-86Z00-000 | Lever, hood latch release | Hood panel (HOOD PANEL) |
| 82179-86Z00-000 | Clip | Hood panel (HOOD PANEL) |
