RP625

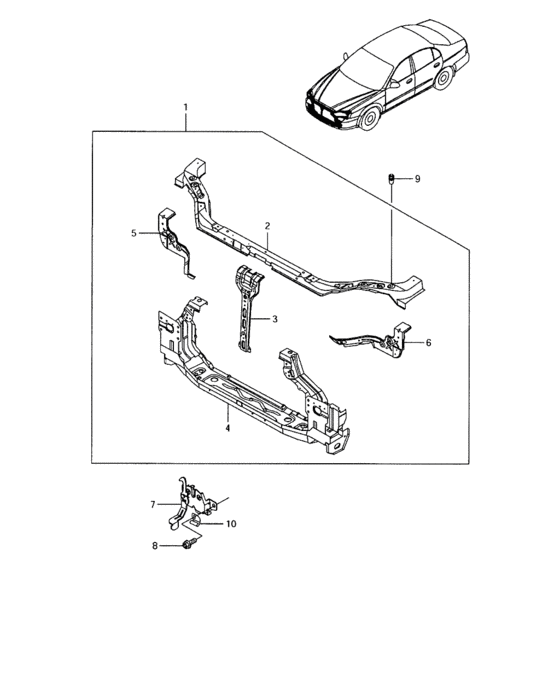

Front panel (FRONT PANEL) 10
| # | OEM | Part name |
|---|---|---|
| 1 | 58100-86Z00-000 | Panel assy, front end |
| 2 | 58230-86Z00-000 | Member, hood lock |
| 3 | 58240-86Z00-000 | Brace, hood lock |
| 4 | 58210-86Z00-000 | Crossmember, front lower |
| 5 | 58110-86Z00-000 | Panel, lamp support rh |
| 6 | 58160-86Z00-000 | Panel, lamp support lh |
| 7 | 82110-86Z00-000 | Latch, hood |
| 8 | 49234-86Z00-000 | Bolt |
| 9 | 72373-86Z00-000 | Cushion |
| 10 | 82119-86Z00-000 | Cover, hood release cable |
| OEM | Part name | Category |
|---|---|---|
| 49234-86Z00-000 | Bolt | Front panel (FRONT PANEL) |
| 58100-86Z00-000 | Panel assy, front end | Front panel (FRONT PANEL) |
| 58110-86Z00-000 | Panel, lamp support rh | Front panel (FRONT PANEL) |
| 58160-86Z00-000 | Panel, lamp support lh | Front panel (FRONT PANEL) |
| 58210-86Z00-000 | Crossmember, front lower | Front panel (FRONT PANEL) |
| 58230-86Z00-000 | Member, hood lock | Front panel (FRONT PANEL) |
| 58240-86Z00-000 | Brace, hood lock | Front panel (FRONT PANEL) |
| 72373-86Z00-000 | Cushion | Front panel (FRONT PANEL) |
| 82110-86Z00-000 | Latch, hood | Front panel (FRONT PANEL) |
| 82119-86Z00-000 | Cover, hood release cable | Front panel (FRONT PANEL) |
