Search › Model › RP625
RP625

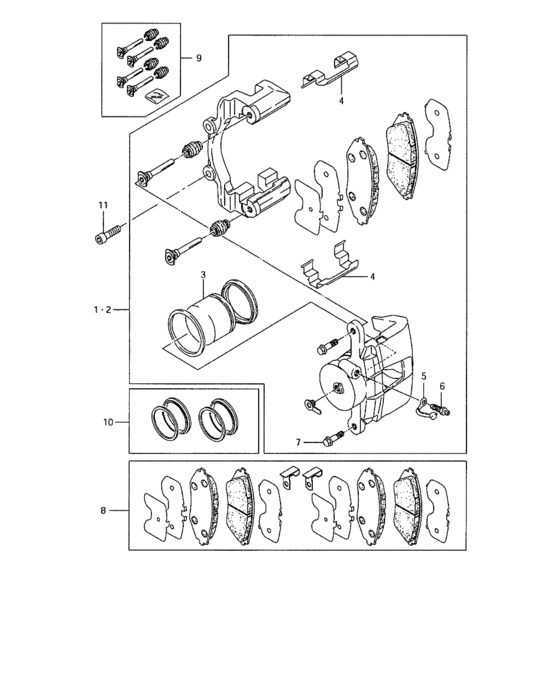

Front brake (FRONT BRAKE) 11
| # | OEM | Part name |
|---|---|---|
| 1 | 55101-86Z00-000 | Caliper assy, fr brake rh |
| 2 | 55102-86Z00-000 | Caliper assy, fr brake lh |
| 3 | 55840-86Z00-000 | Piston, caliper |
| 4 | 55234-86Z00-000 | Spring, pad |
| 5 | 55156-86Z00-000 | Cap, bleeder poug |
| 6 | 55473-86Z00-000 | Plug, bleeder |
| 7 | 55206-86Z00-000 | Bolt |
| 8 | 55200-86Z00-000 | Pad set, disc brake |
| 9 | 55850-86Z00-000 | Pin set, slide |
| 10 | 55830-86Z00-000 | Seal set, piston |
| 11 | 55119-86Z00-000 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 55101-86Z00-000 | Caliper assy, fr brake rh | Front brake (FRONT BRAKE) |
| 55102-86Z00-000 | Caliper assy, fr brake lh | Front brake (FRONT BRAKE) |
| 55119-86Z00-000 | Bolt | Front brake (FRONT BRAKE) |
| 55156-86Z00-000 | Cap, bleeder poug | Front brake (FRONT BRAKE) |
| 55200-86Z00-000 | Pad set, disc brake | Front brake (FRONT BRAKE) |
| 55206-86Z00-000 | Bolt | Front brake (FRONT BRAKE) |
| 55234-86Z00-000 | Spring, pad | Front brake (FRONT BRAKE) |
| 55473-86Z00-000 | Plug, bleeder | Front brake (FRONT BRAKE) |
| 55830-86Z00-000 | Seal set, piston | Front brake (FRONT BRAKE) |
| 55840-86Z00-000 | Piston, caliper | Front brake (FRONT BRAKE) |
| 55850-86Z00-000 | Pin set, slide | Front brake (FRONT BRAKE) |
