Search › Model › RP625
RP625

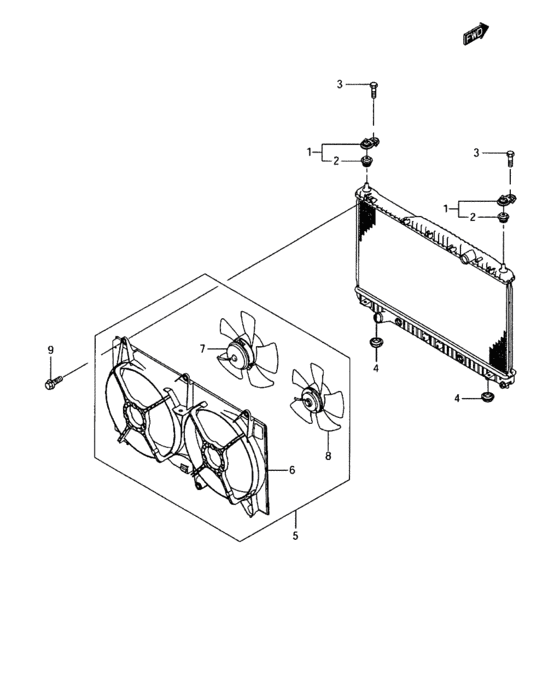

Cooling fan (COOLING FAN) 10
| # | OEM | Part name |
|---|---|---|
| 1 | 17810-86Z00-000 | Bracket assy, rdtr upper |
| 2 | 17812-86Z00-000 | Mount, rdtr upper |
| 3 | 73914-86Z00-000 | Bolt |
| 4 | 17813-86Z00-000 | Mount, rdtr lower |
| 5 | 17100-86Z00-000 | Fan assy, cooling |
| 5 | 17100-86Z01-000 | Fan assy, cooling |
| 6 | 17760-86Z00-000 | Shroud |
| 7 | 17111-86Z00-000 | Fan/motor, cooling no.1 |
| 8 | 17112-86Z00-000 | Fan/motor, cooling no.2 |
| 9 | 13146-86Z00-000 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 13146-86Z00-000 | Bolt | Cooling fan (COOLING FAN) |
| 17100-86Z00-000 | Fan assy, cooling | Cooling fan (COOLING FAN) |
| 17100-86Z01-000 | Fan assy, cooling | Cooling fan (COOLING FAN) |
| 17111-86Z00-000 | Fan/motor, cooling no.1 | Cooling fan (COOLING FAN) |
| 17112-86Z00-000 | Fan/motor, cooling no.2 | Cooling fan (COOLING FAN) |
| 17760-86Z00-000 | Shroud | Cooling fan (COOLING FAN) |
| 17810-86Z00-000 | Bracket assy, rdtr upper | Cooling fan (COOLING FAN) |
| 17812-86Z00-000 | Mount, rdtr upper | Cooling fan (COOLING FAN) |
| 17813-86Z00-000 | Mount, rdtr lower | Cooling fan (COOLING FAN) |
| 73914-86Z00-000 | Bolt | Cooling fan (COOLING FAN) |
