RP625

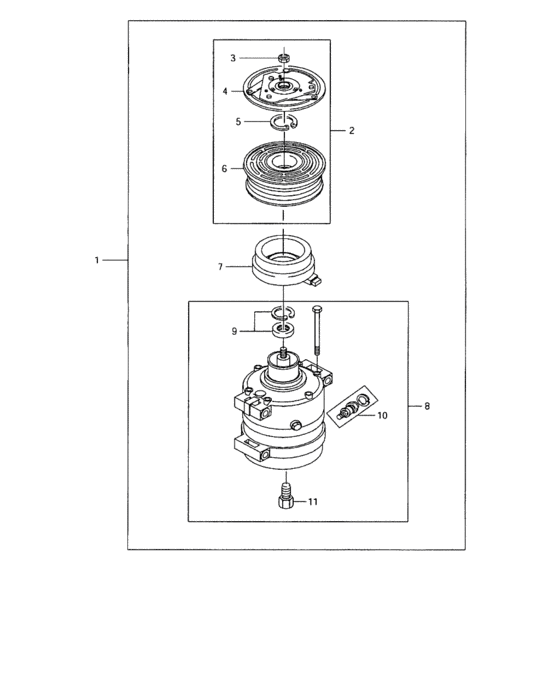

Compressor (COMPRESSOR) 11
| # | OEM | Part name |
|---|---|---|
| 1 | 95200-86Z20-000 | Compressor assy |
| 2 | 95210-86Z00-000 | Clutch/pulley kit |
| 3 | 95211-86Z00-000 | Nut |
| 4 | 95212-86Z00-000 | Drive assy |
| 5 | 95213-86Z00-000 | Clip |
| 6 | 95214-86Z00-000 | Pulley assy |
| 7 | 95220-86Z00-000 | Coil assy |
| 8 | 95231-86Z00-000 | Sleeve assy |
| 9 | 95200-86Z10-000 | Compressor sub assy |
| 10 | 95240-86Z00-000 | Valve, control |
| 11 | 95270-86Z00-000 | Valve, relief |
| OEM | Part name | Category |
|---|---|---|
| 95200-86Z10-000 | Compressor sub assy | Compressor (COMPRESSOR) |
| 95200-86Z20-000 | Compressor assy | Compressor (COMPRESSOR) |
| 95210-86Z00-000 | Clutch/pulley kit | Compressor (COMPRESSOR) |
| 95211-86Z00-000 | Nut | Compressor (COMPRESSOR) |
| 95212-86Z00-000 | Drive assy | Compressor (COMPRESSOR) |
| 95213-86Z00-000 | Clip | Compressor (COMPRESSOR) |
| 95214-86Z00-000 | Pulley assy | Compressor (COMPRESSOR) |
| 95220-86Z00-000 | Coil assy | Compressor (COMPRESSOR) |
| 95231-86Z00-000 | Sleeve assy | Compressor (COMPRESSOR) |
| 95240-86Z00-000 | Valve, control | Compressor (COMPRESSOR) |
| 95270-86Z00-000 | Valve, relief | Compressor (COMPRESSOR) |
